Connection Of Relay Output - Lenze 8200 Vector Instructions De Montage

5
Electrical installation

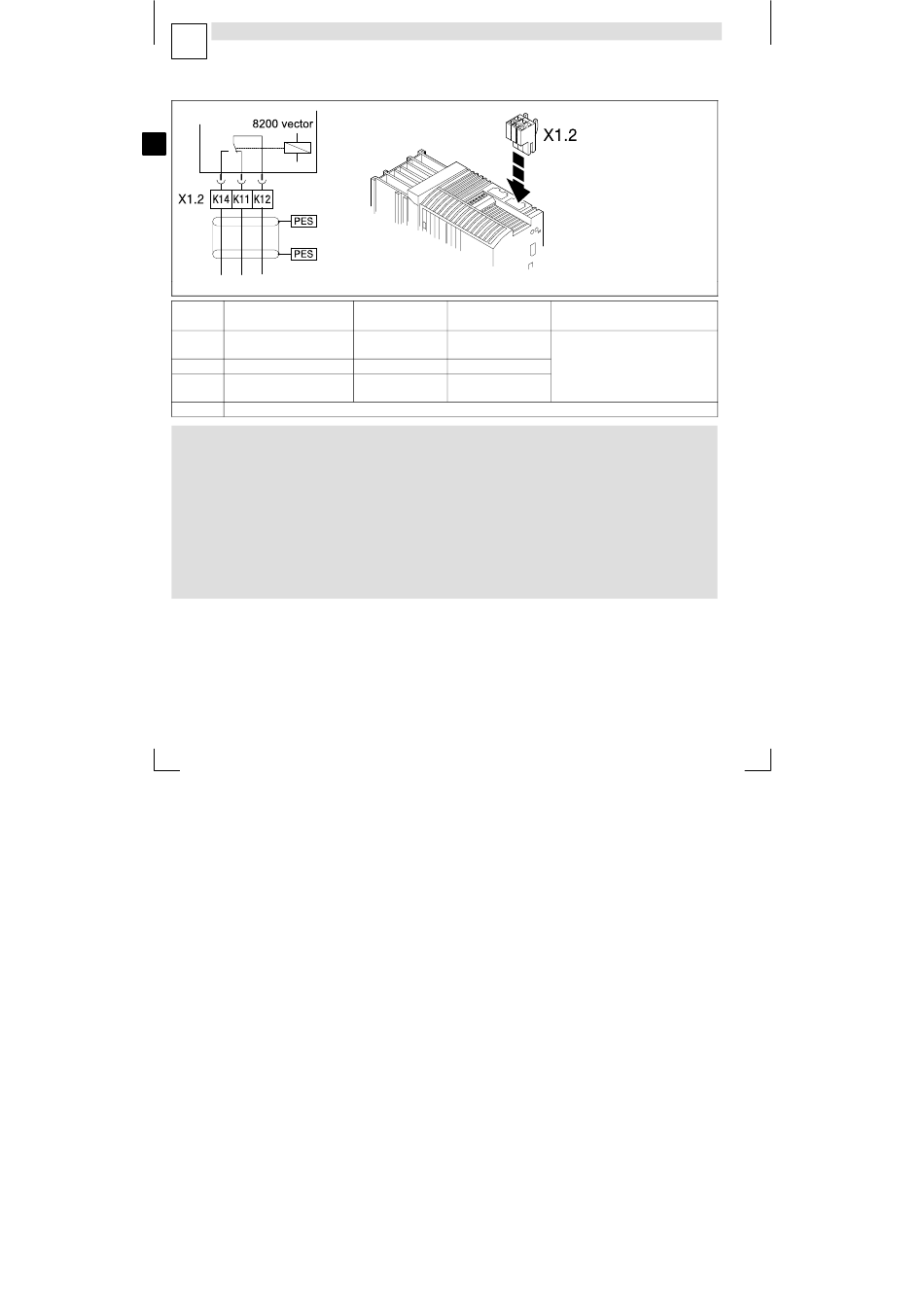

Connection of relay output

Function
X1.2/K11 Relay output normally−closed
contact
X1.2/K12 Mid position contact
X1.2/K14 Relay output − normally−open
contact
PES HF−shield end by PE connection through shield bracket.
)
Note!
For switching the control signals use shielded cables and establish an HF
l
shield termination by PE connection.
For mains potential switching unshielded cables are sufficient.
l
With inductive or capacitive loads a corresponding protective circuit is
l
required in order to protect the relay contacts!
The service life of the relay depends on the type of load (ohmic, inductive or
l
capacitive) and the value of the switching capacity.
The output message can be changed under C0008 or C0415/1.
l
106
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Message
Relay position set
(Lenze setting)
open TRIP
closed TRIP
EDK82EV113 DE/EN/FR 8.1
−25−8200vec061
Technical data
AC 250 V/3 A
DC 24 V/2 A ... DC 240 V/0.16 A
L
