Function module (optional)
Dismounting
Dismounting of the function module version "PT"
After the function module version "PT" has been switched off, first of all the safety clip must
be removed.

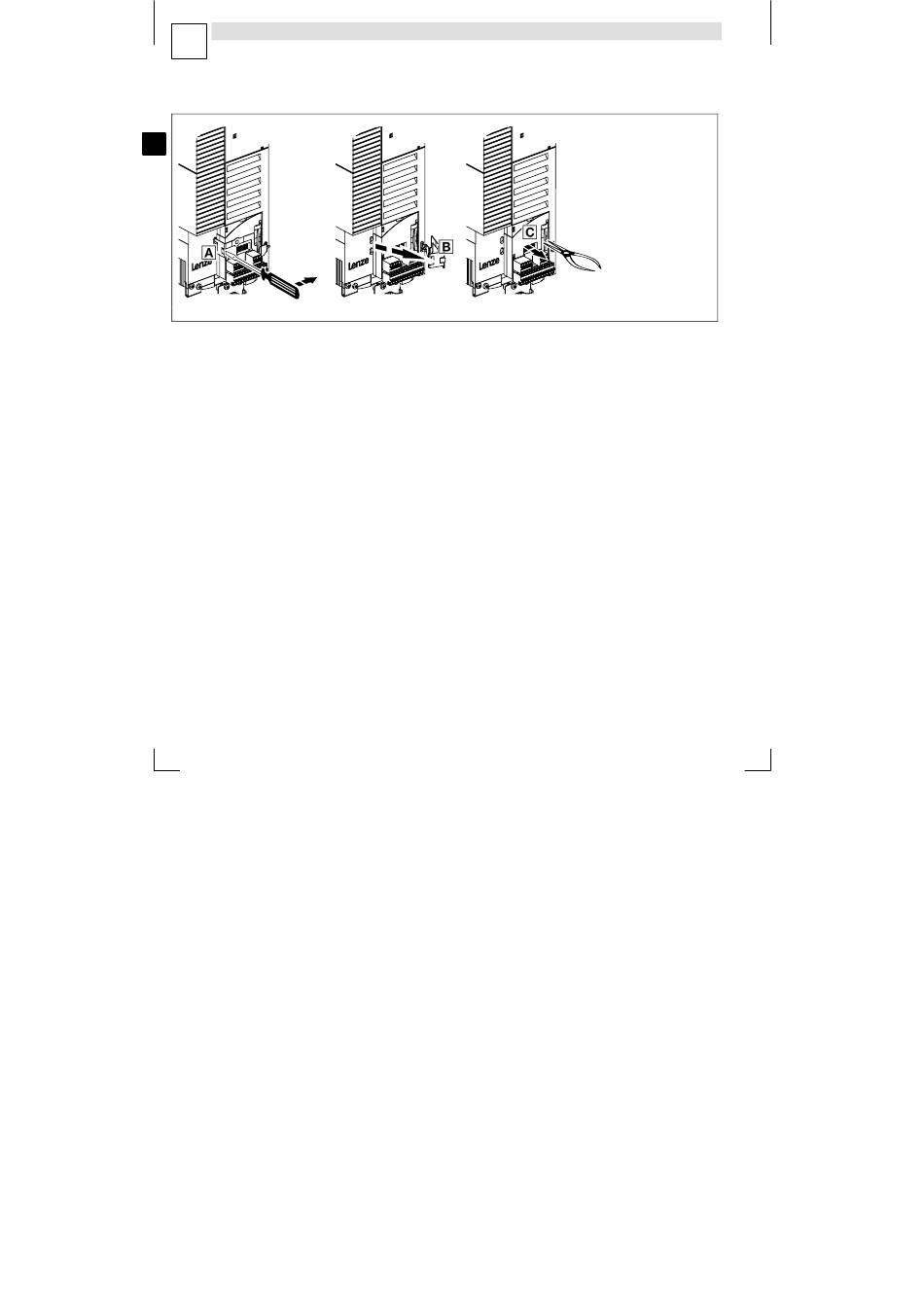

1. Position the screw driver between safety clip and function module 0. The safety clip
is disengaged by pressing to the right.
2. Turn the safety clip 1 to the right.
3. Catch the bar of the plug connector with pliers and pull 2. Plug connector and
function module are dismounted together.
