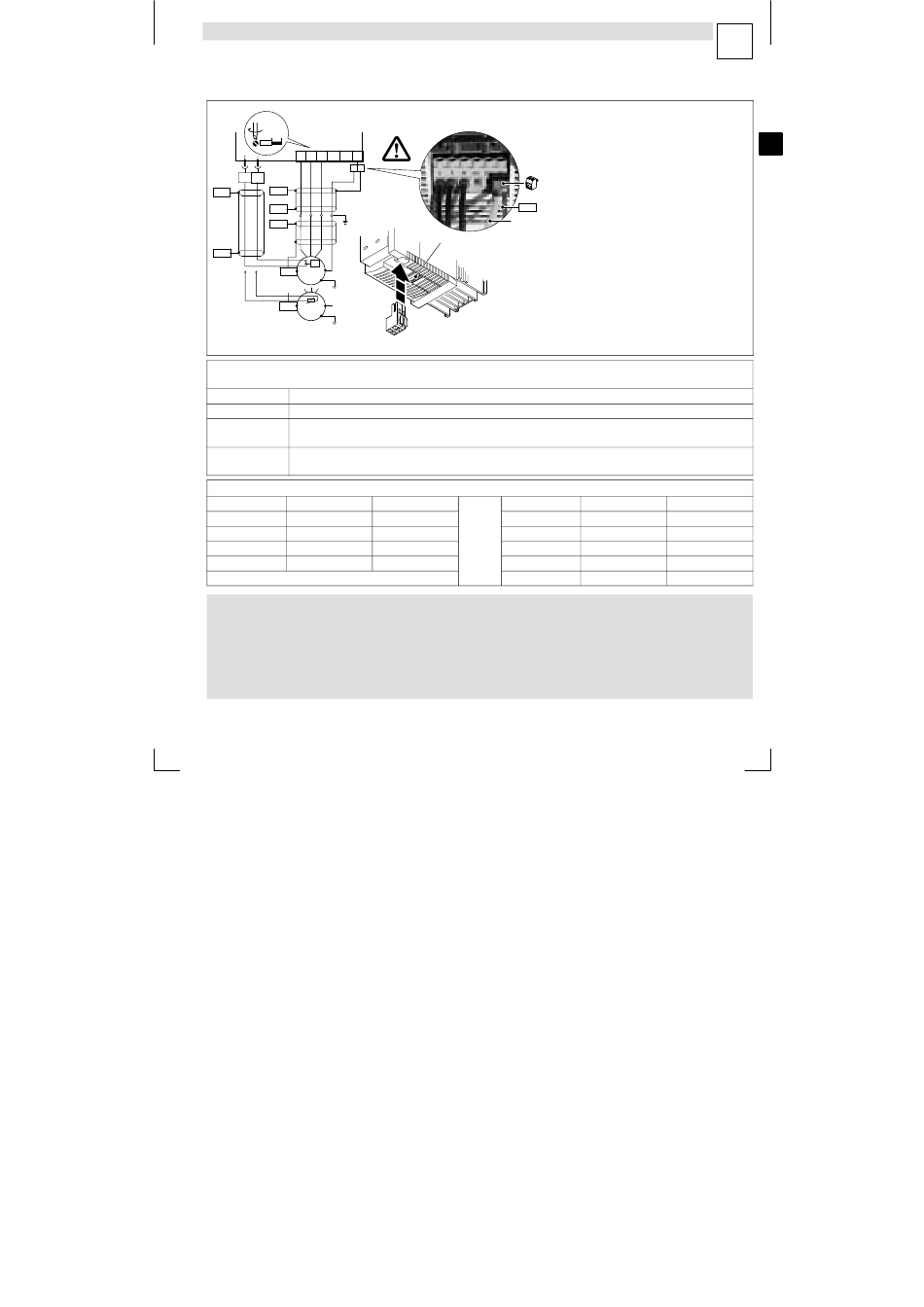

Connection Of Motor / Brake Resistor - Lenze 8200 Vector Instructions De Montage

0,7...0,8 Nm
6.2...7.1 lb-in
6 mm / 0.24 in
8200 vector
X2.1 U V W
BR1 BR2
X2.2 T1 T2
PES
PES
PES
PES
PE
PES
ϑ>
PES PE
M
3~
PTC
PES
M
PE
3~
Use low−capacity motor cables! (core/core up to 1.5 mm
The shorter the motor cables, the better the drive response!
PES HF−shield end by PE connection through shield bracket or EMC cable connection.
X2.1/PE Earthing of the 8200 vector at the output side
X2.1/BR1, Connection terminals for the brake resistor
X2.1/BR2
(For information about the operation with brake resistor see the Operating Instructions)
X2.2/T1, X2.2/T2 Connection terminals motor temperature monitoring through PTC thermistors or thermal contacts
Activate motor temperature monitoring under C0119 (e. g. C0119 = 1)!
Cable cross−sections U, V, W, PE
2
Type mm
E82EV302K2C 2.5
E82EV402K2C 4
E82EV552K2C 6
E82EV752K2C 6
{
Danger!
After the connection of a PTC thermistor or thermal contact all control
l
terminals only have a basic insulation (single insulating distance).
Protection against contact in the event of a defective insulating distance
l
can only be ensured by external measures (e.g. double insulation).
L
