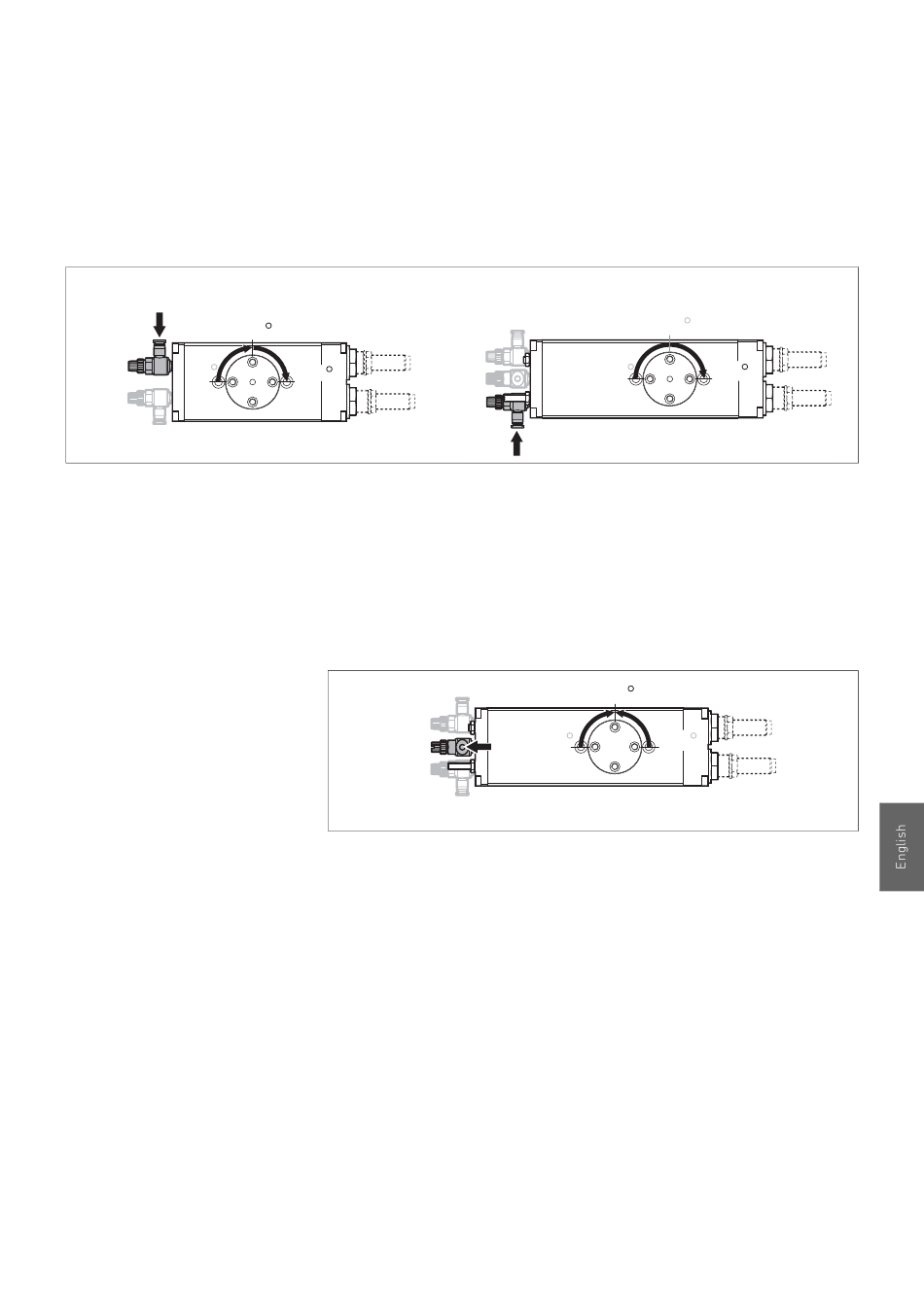

Fig. 11: Compressed air connection A to move to end position 90°/180°
5.2.3
Moving to end position 90°/180° (clockwise)
1. Exhaust connections B and C (C only in RCM-...-IP).
2. Apply compressed air to connection A.
90
180
5.2.4
Moving to intermediate position 90°
(only in RCM-...-IP)
1. Exhaust connections A and B.
2. Apply compressed air to connection C.
B
C
A
Fig. 12: Compressed air connection C to move to intermediate position
90°
5.3
Magnetic proximity switching
5.3.1
Sensor assembly
Mount the ST4 sensor in the sensor grooves for position
O
inquiry of the rotary flange end positions and intermediate
position.
Tip
Mount the sensor on the same side of the sensor groove.
O
