AVENTICS | RCM | R499050098–BDL–001–AD
4.1

Function/variants

The RCM rotary compact module is driven by two double-acting
pistons (diagram on left). The pistons synchronously transfer
the force to the ball-bearing pinion via rack elements.
Two variants are available for the end position system with
angle adjustment:
with elastic end cushioning element or
W
with hydraulic end cushioning element.
W
Additional optional variants include those with integrated air
ducts and integrated intermediate position (diagram on left).
1 2

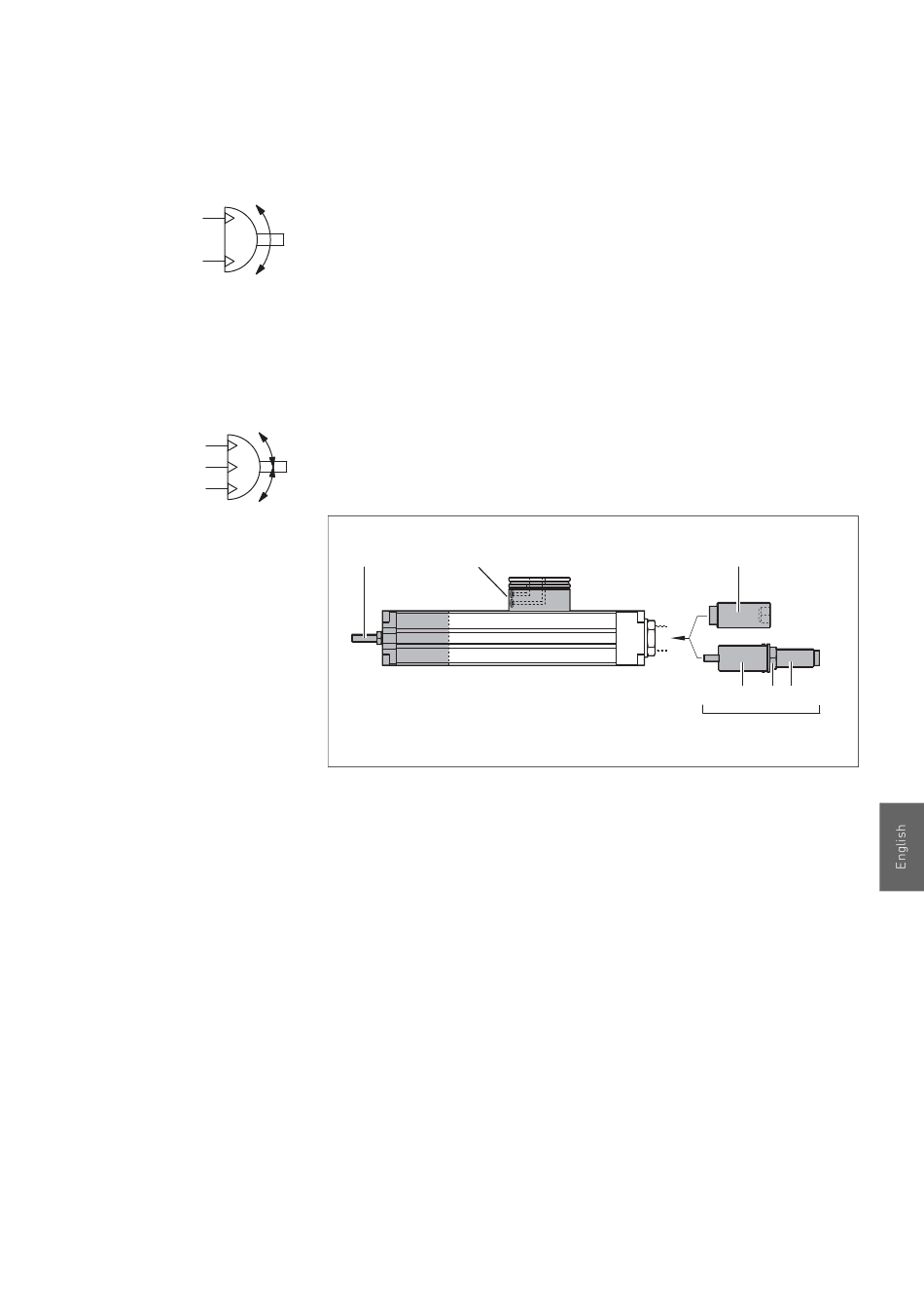

Fig. 2: RCM rotary compact module with variants
1 Integrated intermediate position (IP)
2 Integrated air ducts (AP)
3 Elastic end cushioning element (SE)
4 Hydraulic end cushioning element (SH)
5 Shock absorber
6 Lock nut for shock absorber
7 Stop sleeve for angle adjustment
43
Device description
3
7 6 5
4
