46 AVENTICS | RCM | R499050098–BDL–001–AD
Assembly
5.1.3 Mounting the RCM rotary compact module on
a base
Mounting screws (rotary flange and end cover) and
threaded pins (air channels) may not be loosened!
Make sure that the RCM rotary compact module is flat on all
O
three bearing surfaces.

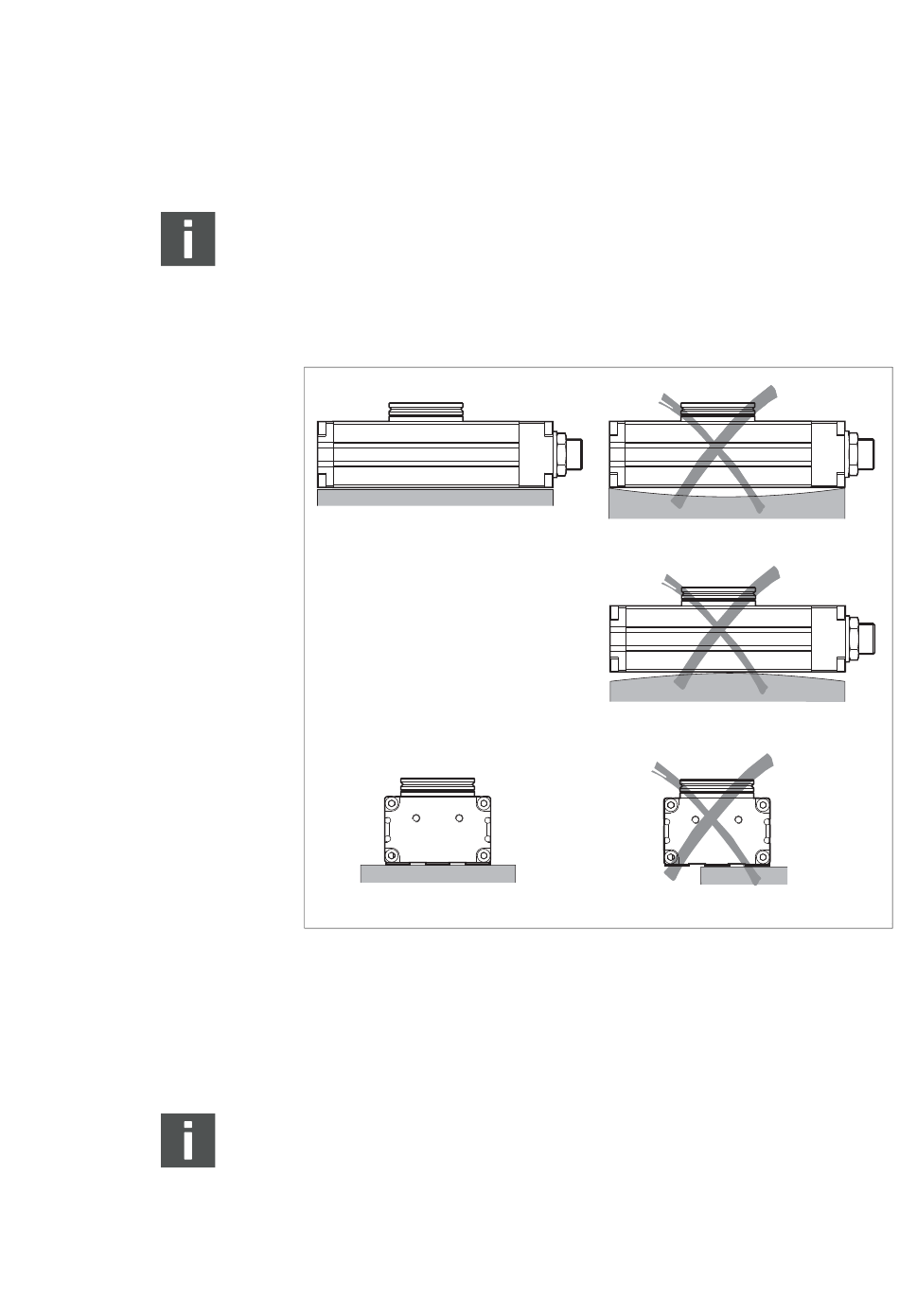

Fig. 5: Requirements for placing the RCM rotary compact module on
the mounting surface
Fasten the RCM rotary compact module to the base with at
O
least 2 mounting screws.
Reproducible mounting positions can be created with
centering sleeves.
