44 AVENTICS | RCM | R499050098–BDL–001–AD

Assembly

5 Assembly
Damage to the rotary compact module
Strong impacts on the RCM rotary compact module may
damage the rotary flange.
Do not permit impacts on the rotary flange, use a suitable
O
tool and follow the assembly instructions.
5.1

Installation and mounting

5.1.1

Installation space

Make sure there is enough installation space for
O
– pneumatic connections with check-choke valves and
adjustment of the intermediate position system (1),
– assembly of the sensor (2)
Recommendation: Mount the sensor on the same side of
the sensor groove.
– adjustment of the end position system with angle
adjustment (3).
1

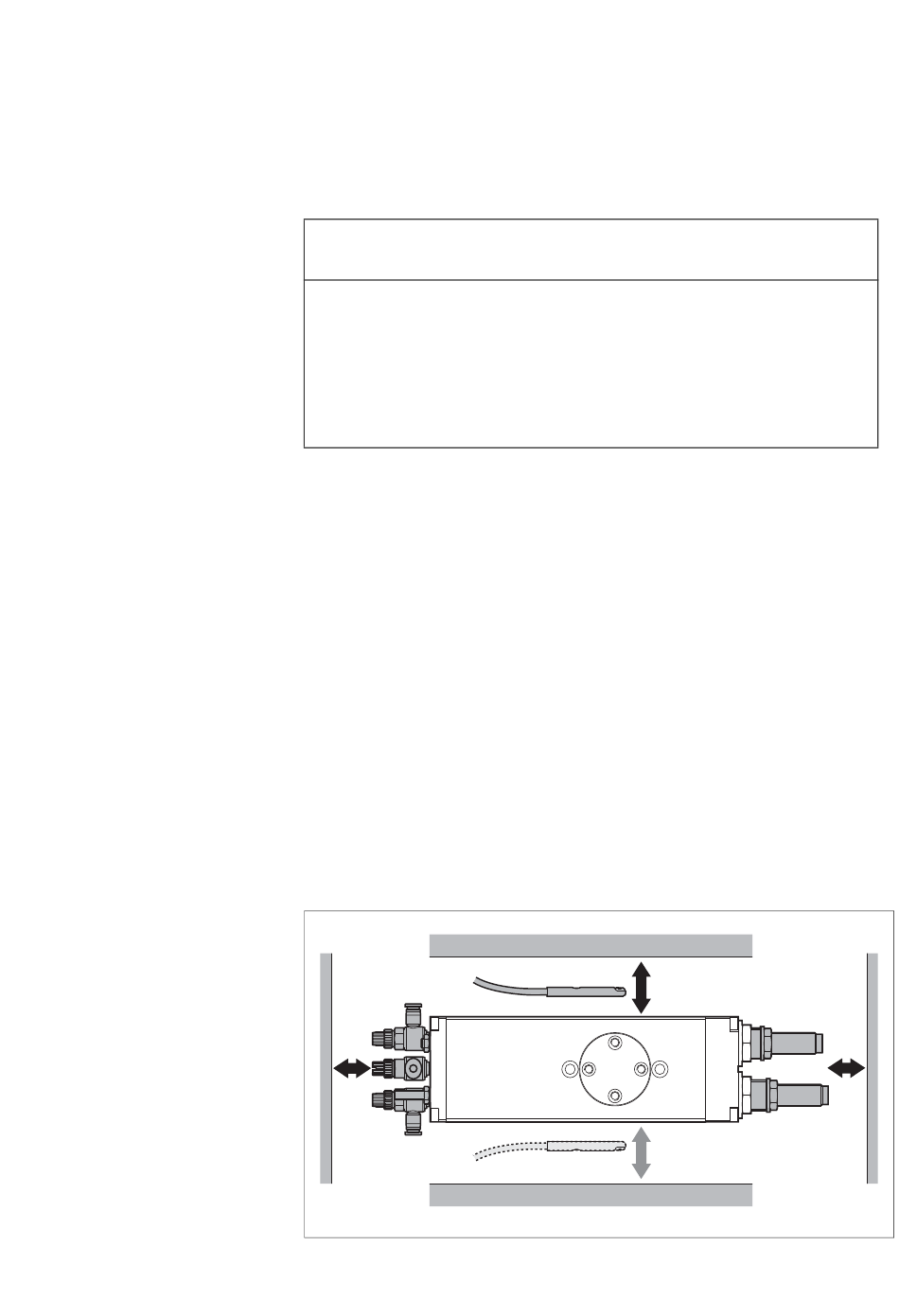

Fig. 3: Lateral distances when installing the RCM rotary compact
module
NOTICE
2
2
3
