5.1.2

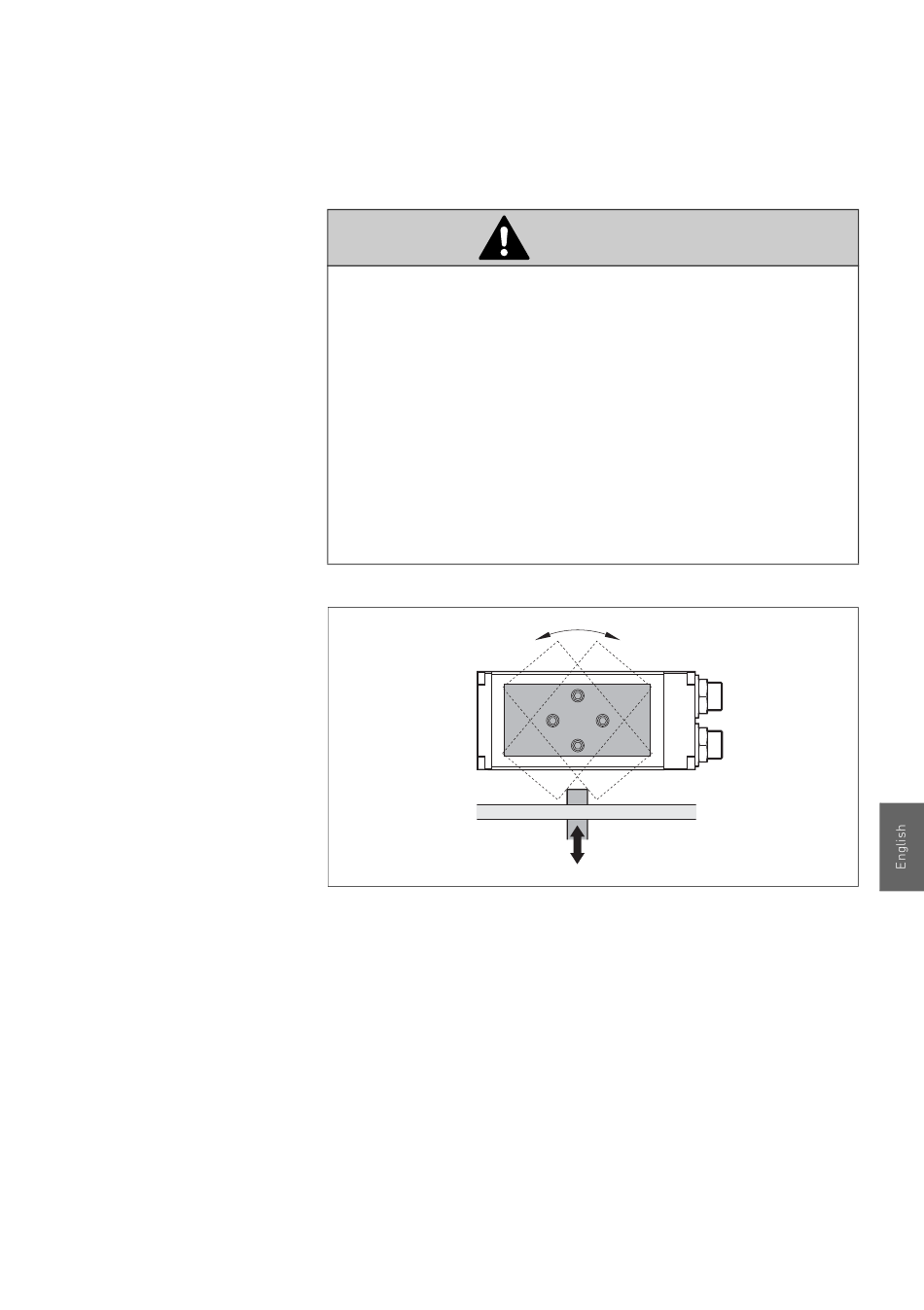

Install vertically

Instable position with insufficient compressed air
If there is not enough compressed air, the rotary flange might
not have a stable position and start to rotate abruptly.
Take safety precautions so that, if there is an unexpected
O
loss of compressed air, the rotary flange and its
attachments can move into a stable position without any
danger.
Secure the rotary flange, e.g. with a moving bolt (1),
O
before switching off the compressed air or ventilating the
system.
Fig. 4: Securing the rotary flange with a bolt (1)
