ASSEMBLY & OPERATION

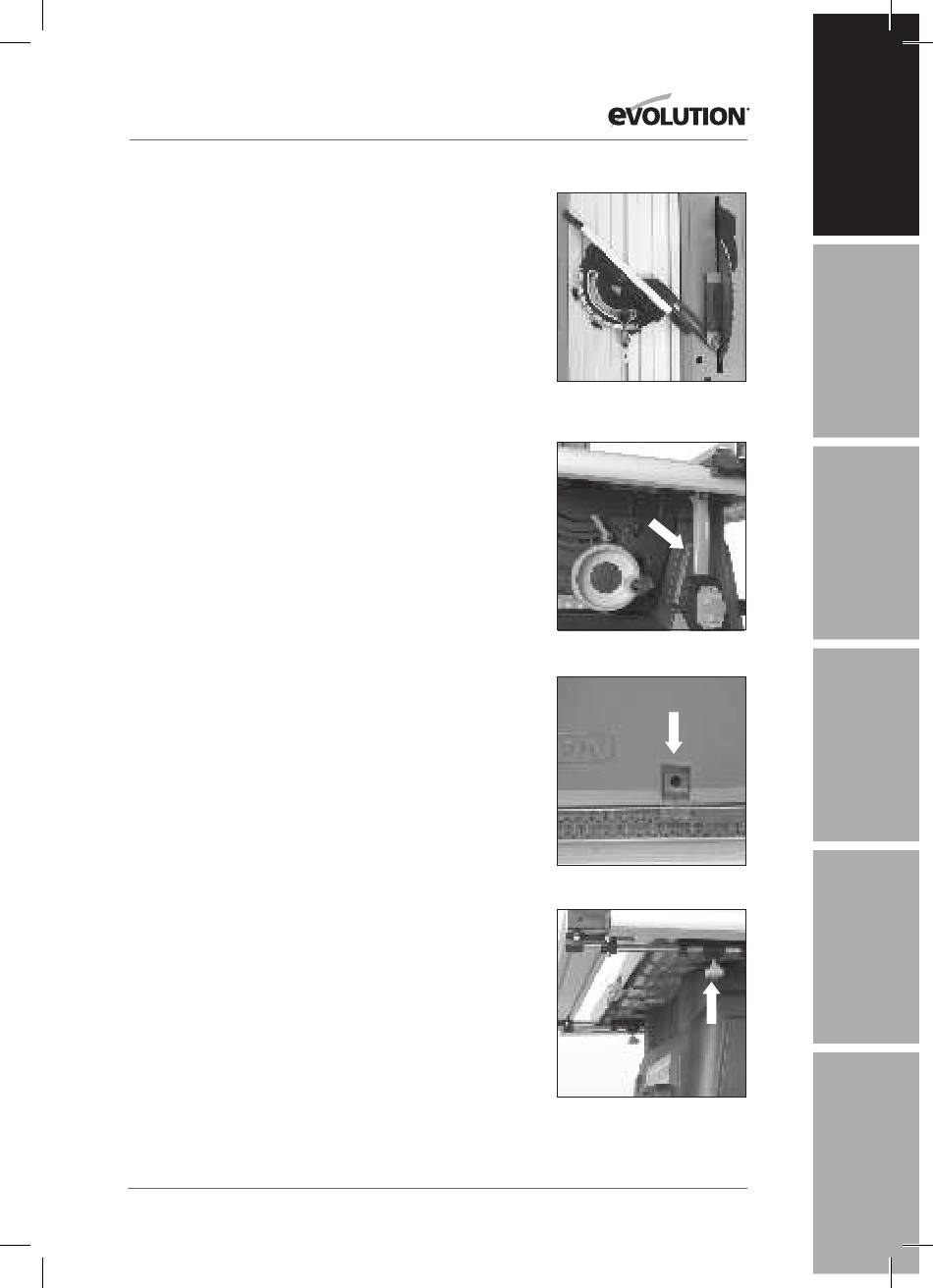

To Check 45 0 Settings
•
Raise the blade to its full height.
•
Place the 45 0 square on the machine table with one face
resting accurately against the saw blades body. (Fig. 25)
•
Check that the Mitre Gauge is set at one of the 45
•
Slide the Mitre Gauge into its 'T' slot and slide it up to the
edge of the 45 0 square.
•
The Mitre Gauge Face Plate should index precisely with the
edge of the 45 0 square.
If adjustment is required follow the instructions as for the
setting of the 90 0 setting.
6. Multi-Function Table Top
This Table Saw is equipped with a versatile table top capable
of various adjustments which are designed to aid operator
efficiency and safety.
Table extensions
The table can be extended to the RH and to the LH side, to
provide extra workpiece support when necessary. Both sides of
the table can be extended at the same time, or just one side at a
time as required operationally.
To extend the table to the RH side:
•
Pull up the table extension locking lever found just above the
machines ON/OFF switch. (Fig. 26)
•
Deploy the table extension to give the required workpiece
support.
•
Push the locking lever down to lock the table in the required
position.
•
Re-attach and/or adjust the Rip Fence as required.
•
When cutting is completed return the table to its original
setting.
Note: The Fence Rail will 'travel' with the RH table extension
when it is deployed. A window with datum index line is built
into the front edge of the table to aid setting. (Fig. 27)
To extend the table to the LH side:
•
Loosen the two locking knobs (one to the front and one
to the rear of the machine) underneath the LH side of the
machines table. (Fig. 28)
•
Deploy the table extension.
•
Tighten the locking knobs.
•
When cutting is completed return the table to its original
setting.
0 settings.
FIG. 25
(Blade guard removed for clarity)
FIG. 26
FIG. 27
FIG. 28
