ASSEMBLY & OPERATION
To reposition the Rip Fence Face:
•
Loosen the two thumb nuts to the RH side of the Rip Fence.
•
Slide out the Rip Fence Face extrusion.
•
Re-attach the Rip Fence Face in the 'Lo' position.
•
Adjust to suit and tighten the two thumb nuts.
•
Return to the normal 'Hi' position when cutting has been
completed.

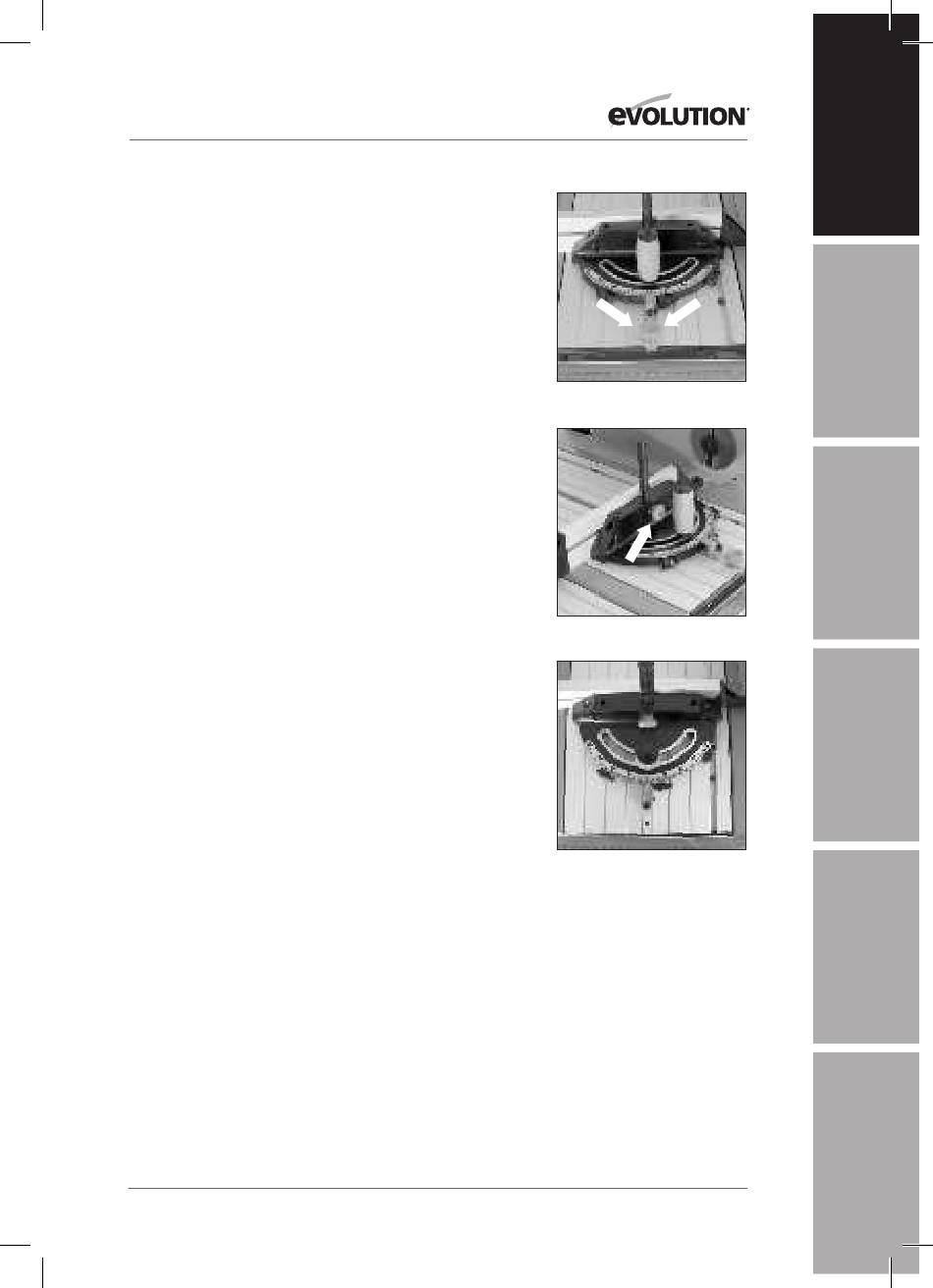

5. Mitre Gauge
The mitre gauge is used on the LH side of the table and runs in
an inverted T slot in the sliding carriage table top.
Turn the vertical handle counter-clockwise to unlock the mitre
gauge, and adjust to the required mitre angle. Turn the handle
clockwise to lock the mitre gauge at the chosen angle.
Note: We recommend that the Mitre Gauge Slide Locking screw
(Fig. 18) be removed and stored safely off the machine for future
use when the Mitre Gauge is being used with the sliding carriage
in the 'locked' position.
We further recommend that the Hold Down Clamp be removed
from the Mitre Gauge and stored safely when the machine is being
used with the sliding carriage in the 'locked' position.
Note: The extruded aluminium face plate of the mitre gauge
should be adjusted so that it is close to, but does not foul the
blade guard. Adjust by loosening the finger nut and sliding the
faceplate to the required position. Securely tighten the thumb
nut. (Fig. 19)
The Mitre Gauge can be set at any angle between 60
60 0 Right.
Fast index positions are incorporated into the design for 90
45 0 L and 45 0 R.
To use the Fast Index facility:
•
90 0 - Ensure that the 'stop plate' is in the down position and the
90 index screw is resting against its RH side. (Fig. 20)
0
•
45 0 L - Open the 'stop plate' by pivoting it upwards. Loosen the
vertical locking handle and rotate the Mitre Gauge so that the 45
L index screw just passes through the 'stop plate' . Close the 'stop
plate' and bring the 45 0 L index screw to rest against the RH side of
the closed 'stop plate' . Tighten the handle
•
45 0 R - Open the 'stop plate' by pivoting it upwards. Loosen the
vertical locking handle and rotate the Mitre Gauge so that the
90 0 index screw passes through the 'stop plate' .
•
Close the 'stop plate' and bring the 45
against the RH side of the 'stop plate' .
Left and
0
0 ,
0
0 R index screw to rest
19
FIG. 18
FIG. 19
FIG. 20
