ASSEMBLY & OPERATION

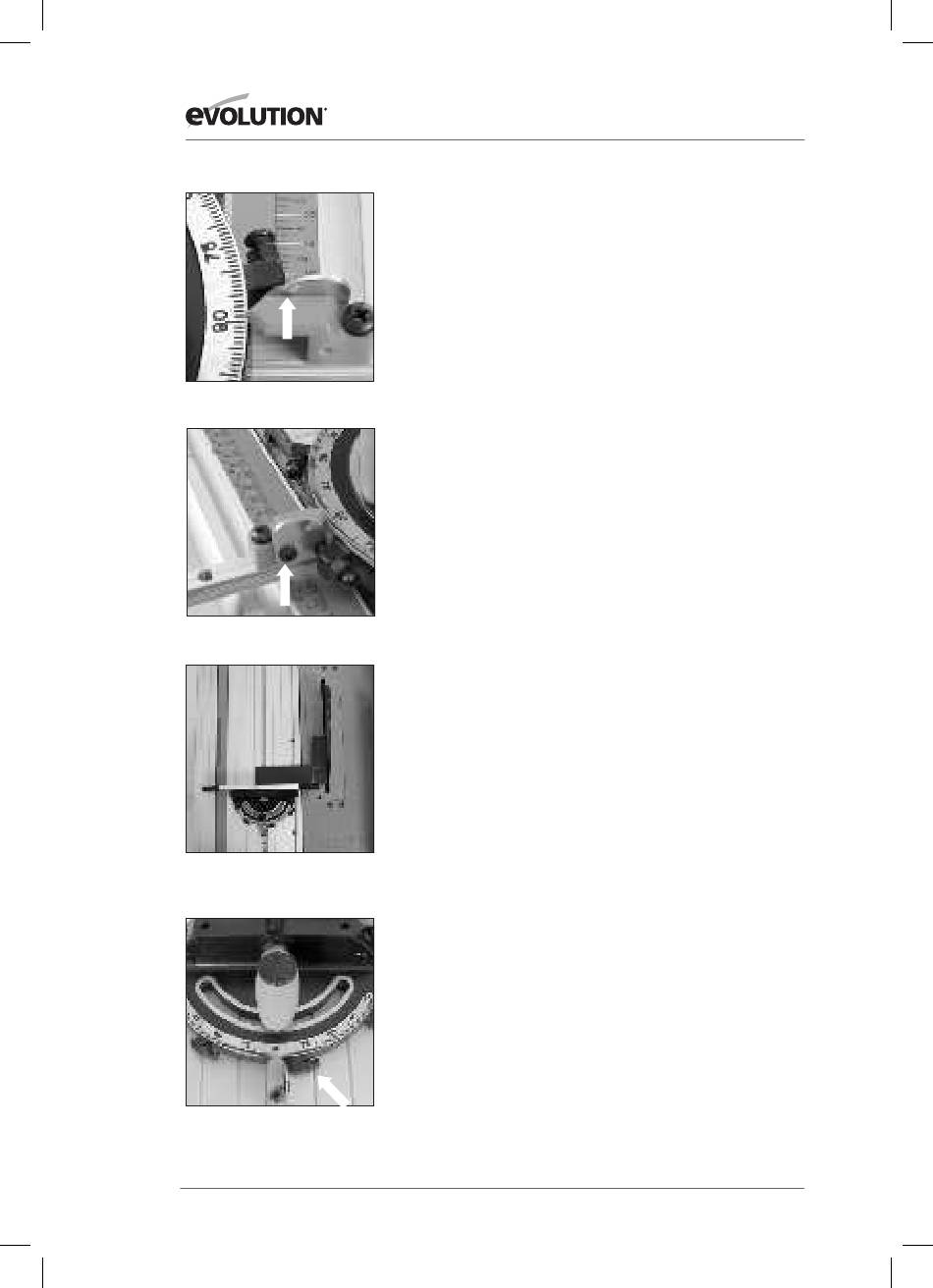

FIG. 21
FIG. 22
FIG. 23
(Blade guard removed for clarity)
FIG. 24
Note: Each of the fast index screws has been factory set for
angular accuracy. All the index screws can be adjusted if
necessary.
The 'stop plate' should rotate easily. It is important that the
punched swage on the plate (Fig. 21) which prevents it from
being over-rotated and potentially fouling the 'T' slot be
checked and adjusted.
To check and adjust the 'stop plate':
•
Rotate the 'stop plate' forward.
•
Visually check that the punched swage is resting upon the
plastic index pointer preventing over-rotation.
•
If necessary adjust the 'stop plate' mounting screw so that
plate moves easily and the swage always rests upon but
cannot slide past the plastic index pointer. (Fig. 22)
Index Screw Checking and Adjustment
To check the accuracy of the angular settings the operator will
require an Engineers Square and a 45
WARNING:
Only carry out these procedures with the machine
disconnected from the mains supply.
To Check 90 0 Setting (Fig. 23)
•
Raise the blade to its full height.
•
Place the engineers square on the machine table with one
leg resting accurately against the saw blades body.
•
Check that the Mitre Gauge is set at 90
•
Slide the Mitre Gauge into its 'T' slot and slide it up to the
other leg of the engineers square.
•
The Mitre Gauges Face Plate should index precisely with the
engineers square.
If adjustment is required:
•
Loosen the index screws locking nut. (Fig. 24)
•
Turn the index screw clockwise or counter-clockwise until
precise alignment with the engineers square is achieved.
•
Re-tighten the locking nut.
