• After a valve driver board (B)
• At the end of a section (C)
• At the end of the valve system (D)
To simplify your documentation and configuration, we recommend
that you expand the valve system on the right end (D).

12.5.3 Impermissible configurations

The following figure displays the configurations that are not permissible. See
g Fig. 24.
You may not:
• Split a 4x or 3x valve driver board
• Mount more than 64 valves (128 solenoid coils)
• Integrate more than 8 AV-EPs
• Integrate more than 32 electrical components.
Some configured components have multiple functions and therefore count as
multiple electrical components.
Table 20: Number of electrical components per component
Configured component
Valve driver boards, 2x
Valve driver boards, 3x
Valve driver boards, 4x
Pressure regulators
Electrical supply plate
UA-OFF monitoring board
AES-
D-BC-
ECAT
UA
P
AES-
D-BC-
ECAT
UA

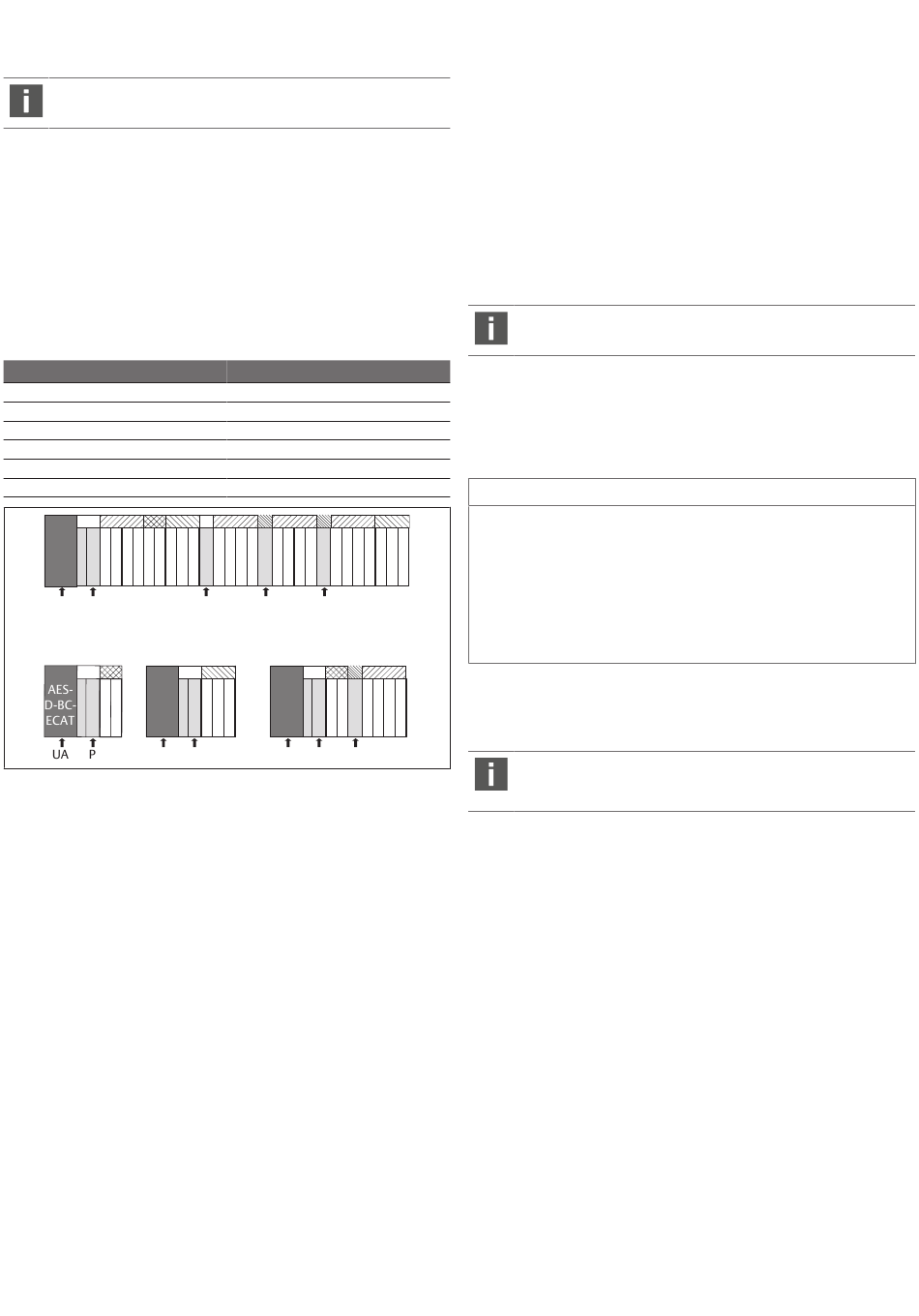

Fig. 24: Examples for impermissible configurations

12.5.4 Reviewing the valve zone conversion

Following the conversion of the valve zone, use the following checklist to de-
u
termine whether you have complied with all rules.
• Have you mounted at least 4 valve positions after the first pneumatic supply
plate?
• Have you mounted a maximum of 64 valve positions?
• Have you integrated no more than 32 electrical components? Note that an
AV-EP pressure regulator corresponds to three electrical components.
• Have you mounted at least two valves after every pneumatic or electrical sup-
ply plate that marks the start of a new section?
• Have you always installed the valve driver boards to be in line with the base
plate limits, i.e.
– One base plate, 2x, is installed with one valve driver board, 2x,
– Two base plates, 2x, are installed with one valve driver board, 4x,
– One base plate, 3x, is installed with one valve driver board, 3x,
• Have you integrated no more than 8 AV-EPs?
If you have answered "Yes" to all these questions, you may proceed with the doc-
umentation and configuration of the valve system.

12.5.5 Conversion documentation

PLC configuration key
After a conversion, the PLC configuration key printed on the right end plate is no
longer valid.
AVENTICS™ EtherCAT | R412018142-BAL-001-AH | English
Number of electrical components
1
1
1
3
1
1
P
UA
UA
AES-
D-BC-
ECAT
P
UA
P
UA
1. Correct the PLC configuration key or cover it with a new label and write the
new PLC configuration key on the end plate.
2. Always document all changes to your configuration.
Mat. no.
After a conversion, the material number (MNR) on the right end plate is no longer
valid.
Mark the material number so that it is clearly visible that the unit no longer
u
corresponds to its original condition on delivery.

12.6 Conversion of the I/O zone

12.6.1 Permissible configurations

No more than ten I/O modules may be connected to the bus coupler.
For further information on converting the I/O zone, see the system descriptions
of the individual I/O modules.
We recommend an expansion of the I/O modules starting from the left
end of the valve system.
12.6.2 Conversion documentation
The PLC configuration key is printed on the top of the I/O modules.
Always document all changes to your configuration.
u

12.7 New PLC configuration for the valve system

Configuration error!
An incorrect valve system configuration can cause malfunctions in and dam-
age to the overall system.
1. The configuration may therefore only be carried out by an electrical special-
ist!
2. Observe the specifications of the system owner as well as any restrictions
resulting from the overall system.
3. Observe the documentation of your configuration program.
After converting the valve system, you need to configure the newly added com-
ponents. Components that are still in their original slots (M1) will be detected
and do not require a new configuration. If the data length of the modules on the
valve side exceed 4 bytes after conversion, the "4-byte valve module" may have
to be replaced by a "32-byte valve module" in the configuration.
If you have exchanged components without changing their order or
quantity, you do not need to reconfigure the valve system. All compo-
nents will be recognized by the controller.
For the PLC configuration, see section g 5. PLC Configuration of the AV Valve
u
System.

13 Troubleshooting

13.1 Proceed as follows for troubleshooting

1. Even if you are in a rush, proceed systematically and in a targeted manner.
2. In the worst case, arbitrary, indiscriminate disassembly and modifications to
the settings may mean that you are no longer able to determine the original
cause of the error.
3. Get an overview of the function of the product as related to the overall sys-
tem.
4. Try to clarify whether the product fulfilled the required function in the overall
system before the error occurred.
5. Try to record any changes to the overall system where the product is installed:
- Have changes been made to the operating conditions or area of application
of the product?
- Have changes (e.g. conversions) or repairs been made to the overall system
(machine/system, electrical system, controller) or the product? If so: What are
they?
- Has the product or machine been operated as intended?
- How does the malfunction manifest itself?
