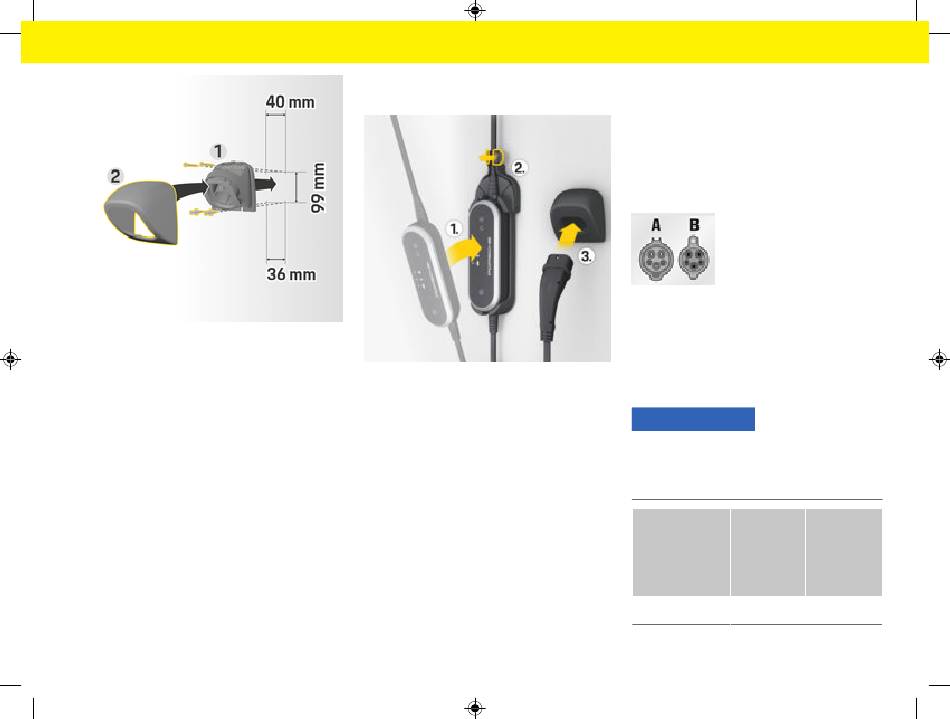

Fig. 10 Drilling dimensions
1. Remove plug holder from the cover (Fig. 10)
1
(Fig. 10).
2. Mark the drill holes on the wall.
3. Drill the mounting holes and insert wall plugs.
4. Screw the plug holder (Fig. 10) to the wall.
1
5. Fit the cover (Fig. 10) onto the plug holder
2
(Fig. 10) from below and press it upwards.
Inserting the control unit in the wall
mount
2
Fig. 11 Inserting control unit
1. Guide the vehicle cable through the lower open-
ing in the basic wall mount, fit the bottom of the
control unit on the locking lug and engage it by
pushing it to the rear.
1
2. Guide the supply cable through the upper open-
ing in the basic wall mount and lock the snap
ring by pushing it to the left.
3. Insert the vehicle plug into the plug holder.

Setup

Vehicle charging and supply cables

Information on vehicle charging cables
and plugs
Different vehicle charge ports and vehicle plugs
A
are available depending on country-specific vehicle
equipment.
IEC 62196-2/
SAE-J1772-2009
Type 1 UL
Selecting a Supply Cable
For regular charging with optimum charging speed,
use only the supply cables listed below. The maxi-
mum achievable charging power is up to 9.6 kW
(depending on device version, national regulations,
power grid/house connection and on-board charger).
NOTICE
In some countries, only approved supply cables may
be used. When driving abroad, always carry the ap-
propriate supply cable for the country you are visiting
with you.
Country Supply ca-
bles for in-
dustrial
electrical
outlets
Argentina 5, 6, 7, 8
Setup
B
Supply ca-
bles for do-
mestic elec-
trical outlets
C
