2.3.6.3.2. Fuel conversion RES 18 EC / RES 16 TEC

For LP vapor fuel, an orifice is used in the fuel line. The unit is typically shipped set up for natural gas, with the loose orifice tied
near the fuel line. To convert to LP vapor, install the orifice and disconnect the spark advance leads as described below.
See figure 2.22 for the position of the various supply circuit components.
1. Hose fitting
2. Regulator
3. Fuel valve
4. Fuel intake, 1/2" NPT female
5. Fuel hose with clamp
6. Position of DSAI connector

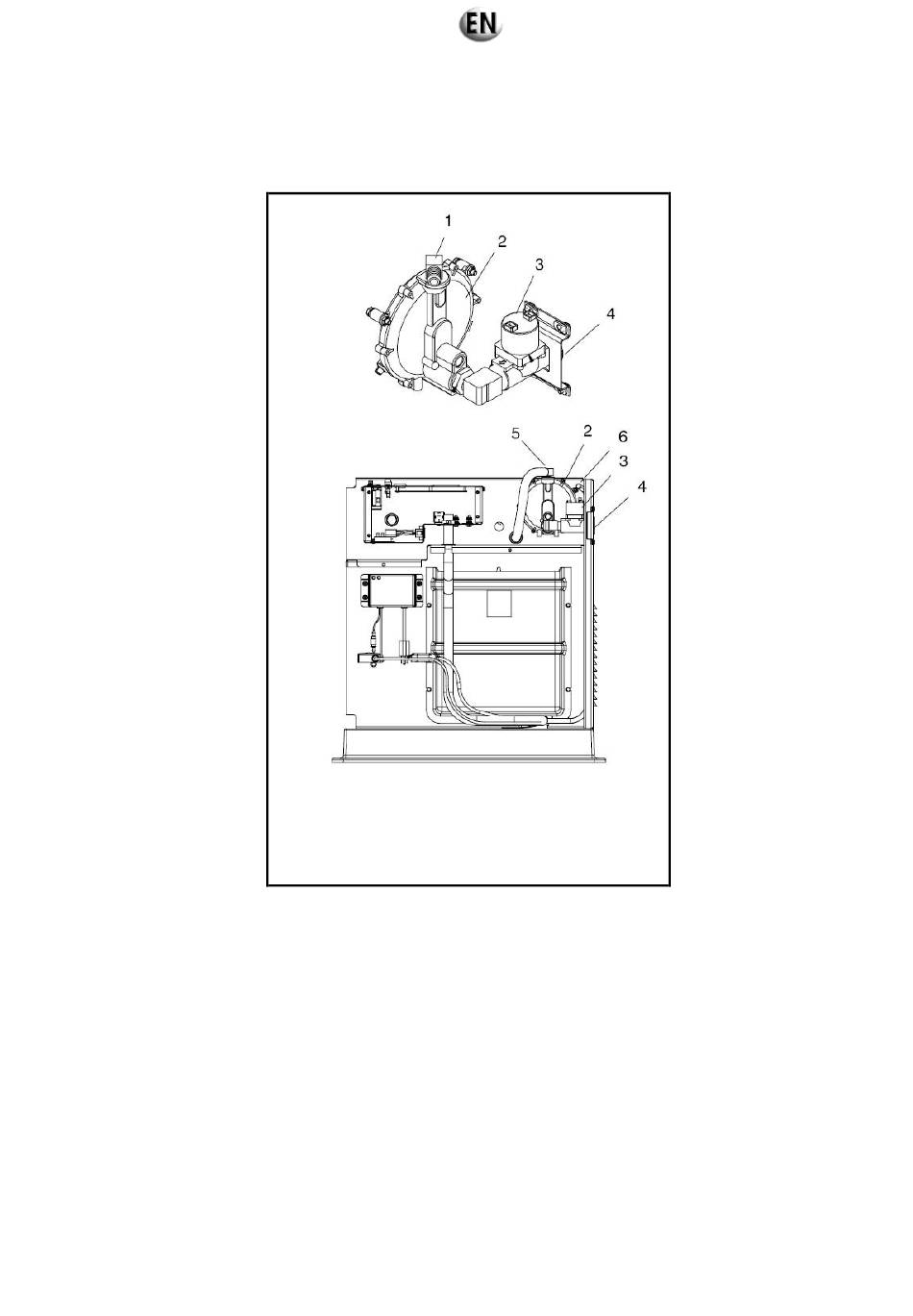

Figure 2.22: Position of supply circuit components, RES 18 EC / RES 16 TEC
