ACCESSING THE HYDRAULIC SUB-ASSEMBLY (6550-001-030)

Tools Required:
• T27 Torx Driver
Procedure:
1. Using a T27 Torx driver, remove the six button head cap screws (0004-592-000) from the six well nuts (0055-100-
074) that hold the mid-section (6550-001-111) to the motor mounts (6500-001-294) and (6500-001-194).
2. Remove the mid-section skin (6550-001-111) and lay to the side out of the way along with the six button head cap
screws (0004-592-000). The six well nuts will stay with the two motor mounts (6500-001-294) and (6500-001-194).
3. Remove the four button head cap screws (0004-596-000) and the four Nylock hex nuts (0016-102-000) from
the two straight "T" pivots (6100-003-125) that hold the gatch assembly (6550-001-019) to the litter cross brace
(6500-001-196).
4. Flip the gatch assembly (6550-001-019) toward the foot end of the cot until it rests on the telescoping foot end
(6550-001-015).
5. Reverse the above procedures to reassemble.
Return To Table of Contents
1-72

Service Information

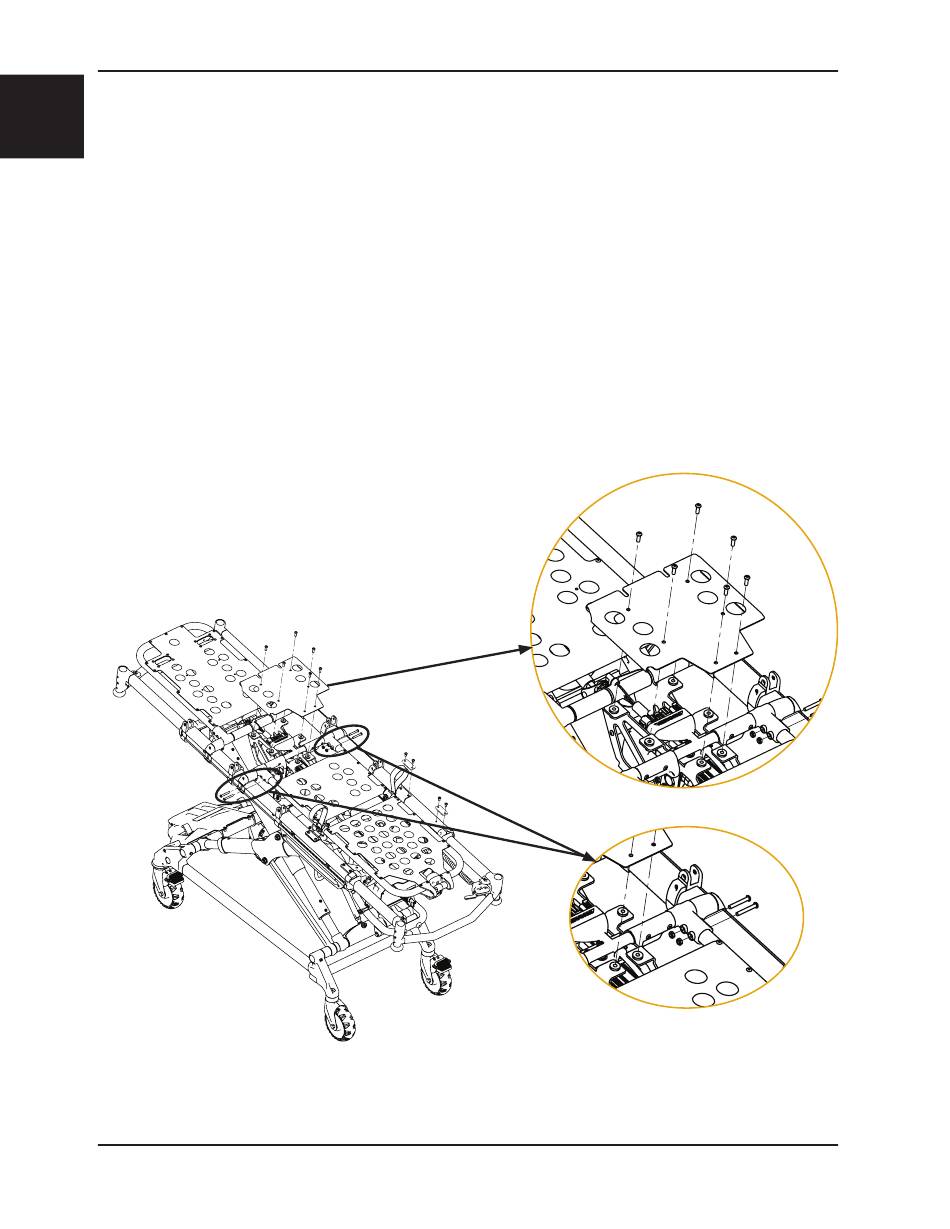

Step 1
6550-109-005 REV A
Step 3
