ADJUSTING THE WHEEL LOCKING FORCE

Minimum
To adjust the wheel locking force:
1 . Remove the screw from the center of the lock pedal .
2 . Remove the octagonal sleeve (B) from the pedal (A) .
3 . Rotate the octagonal sleeve counterclockwise to increase the pedal locking force or clockwise to decrease the
locking force .
4 . Insert the octagonal sleeve (B) into the pedal (A) .
5 . Reinstall the screw into the center of the lock pedal .
6 . Test the pedal locking force and verify that it holds properly before returning the chair to service .
Note: If, after adjustment, the pedal still does not hold the wheel properly, replace the wheel .
www.stryker.com

Service Information

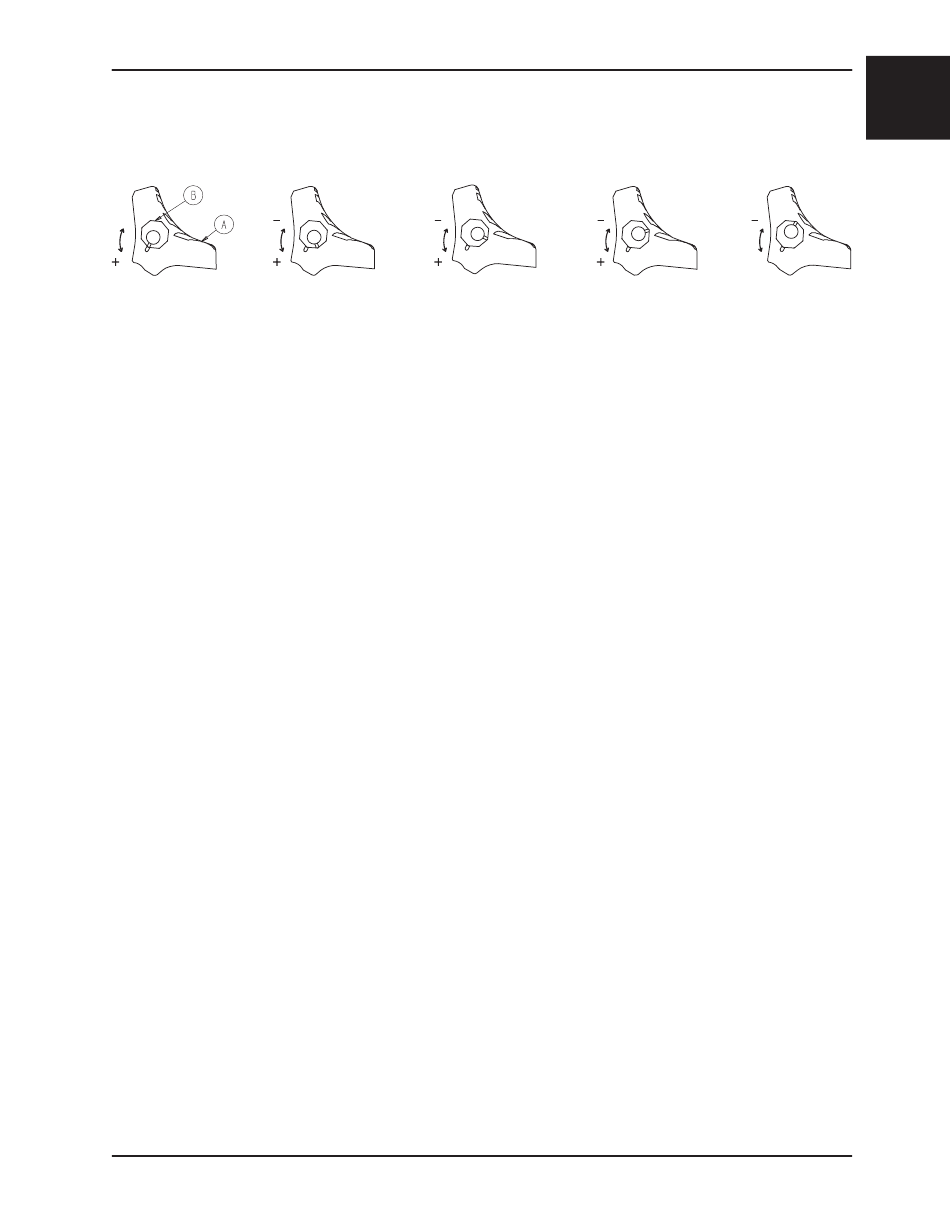

Figure 41 - Wheel locking force adjustment
6254-009-005 REV B
Maximum
