Level 2: Rod-electrode set-up parameters
-
Select
"Parameter 2nd"
-
-
Important! The first parameter to be displayed is always the one that was the last to be
selected the last time the set-up menu was accessed.
-
Accessing
Once the set-up parameter "2nd" has been selected:
-
-
Important! The first parameter to be displayed is always the one that was the last to be
selected the last time the set-up menu was accessed.
Selecting and
-
altering the set-
up parameter
-
Exiting and
-
saving
Available set-up
r .......... Welding-circuit resistance ... x milliohms (e.g. 11.4 milliohms)
parameters
L ......... Welding-circuit inductivity ... x microhenrys (e.g. 5 microhenrys)
ASt ..... Anti-Stick ... On / OFF ... factory setting: On
ELn .... Electrode-line ... characteristic-selection function ... con / 0.1 - 20 / P

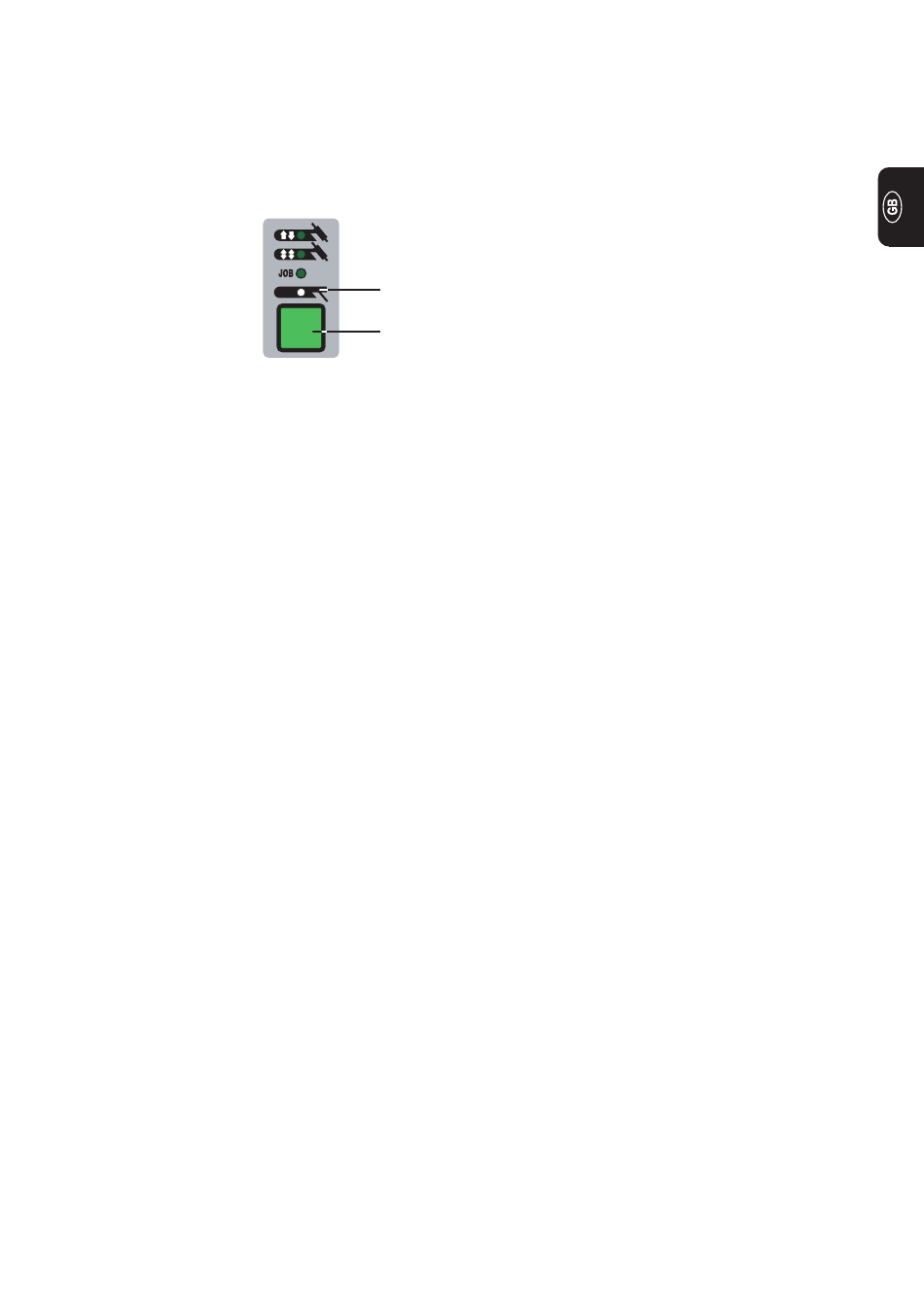

Press the "Mode" button (1) to select the "Rod-electrode (MMA) welding" mode (5)
(5)
(1)
While pressing and holding the Store button (13), press the "Mode" button (1)
The first set-up parameter is displayed (e.g. "HCU")
Select the set-up parameter "2nd" with the parameter selection buttons (8) and (9).
While pressing and holding the Store button (13), press the "Mode" button (1)
The first set-up parameter of Level 2 is displayed (e.g. "r")
Select the desired set-up parameter with the parameter selection buttons (8) and
(9).
Alter the value of the set-up parameter with the adjusting dial (7)
Press the Store button (13) twice
See section headed: "Indicating the welding-circuit resistance r"
See section headed: "Indicating the welding-circuit inductivity L"
See the section headed: "Rod electrode (MMA) welding"
Factory setting: con
See the section headed: "Rod electrode (MMA) welding"
