7. I

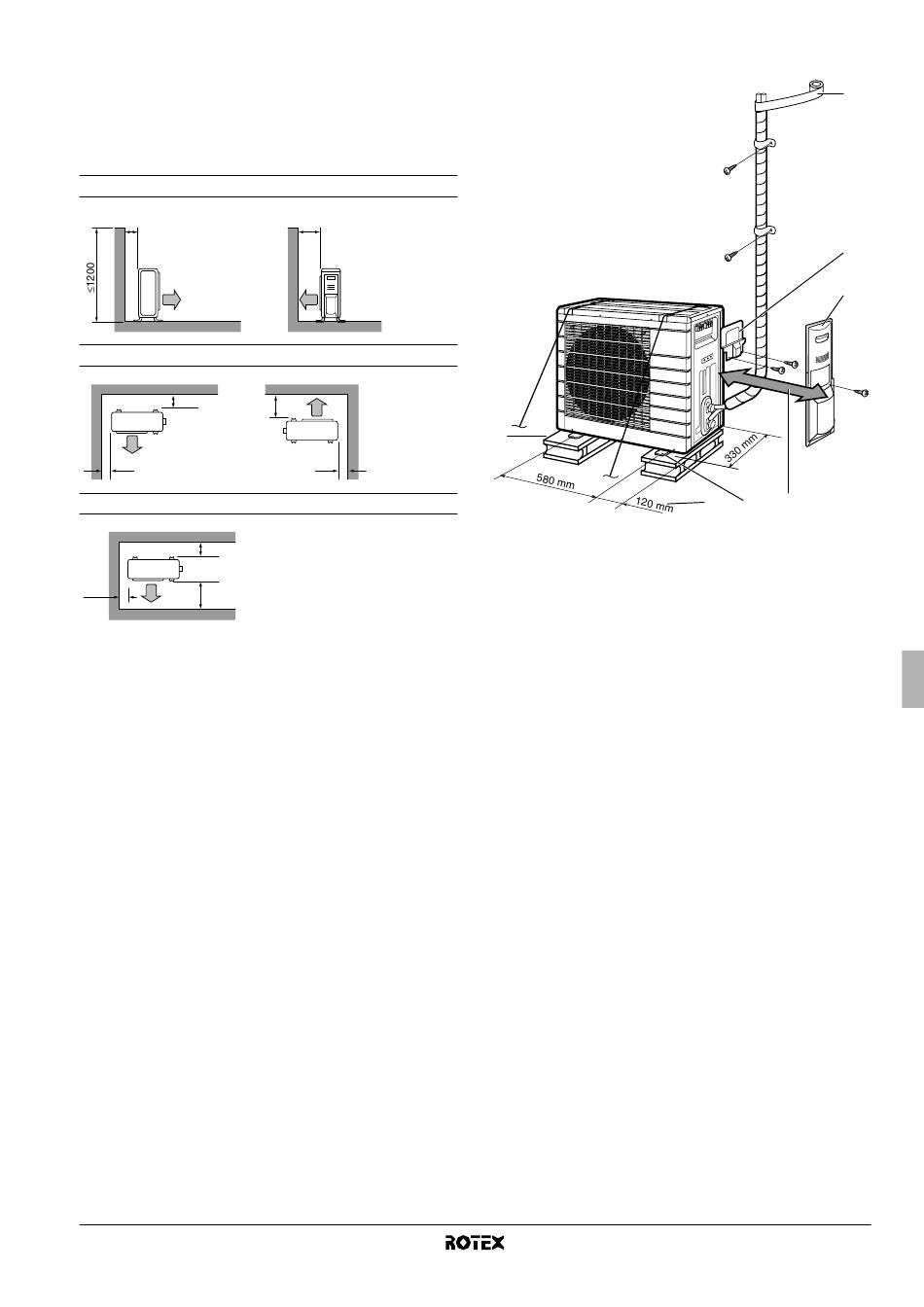

NSTALLATION SERVICING SPACE
■
Where a wall or other obstacle is in the path of the outdoor unit
air intake or exhaust airflow, follow the installation guidelines
below.
■
For any of the installation patterns below, the wall height on the
exhaust side should be 1200 mm or less.

Wall facing one side (unit: mm)

>100

Walls facing two sides (unit: mm)

>100
>350
>50

Walls facing three sides (unit: mm)

>100
>50
>350
RRLQ006~008BBV3
Outdoor unit for air to water heat pump
4PW68222-1 – 02.2011
>350
>50

7.1. Outdoor unit installation drawing

7
1 Wrap the insulation pipe with finishing tape from bottom to
top.
2 Service cover
3 Stop valve cover
4 250 mm from wall. Allow space for piping and electrical
servicing.
5 If there is danger of the unit falling or overturning, fix the
unit with foundation bolts, or with wire or other means.
6 Distance from the outer side of the stop valve cover
7 If the location does not have good drainage, place the unit
on block bases. Adjust foot height until the unit is levelled.
Failure to do so may result in water leakage or
accumulation.
1
2
3
6 5 4
Installation manual
