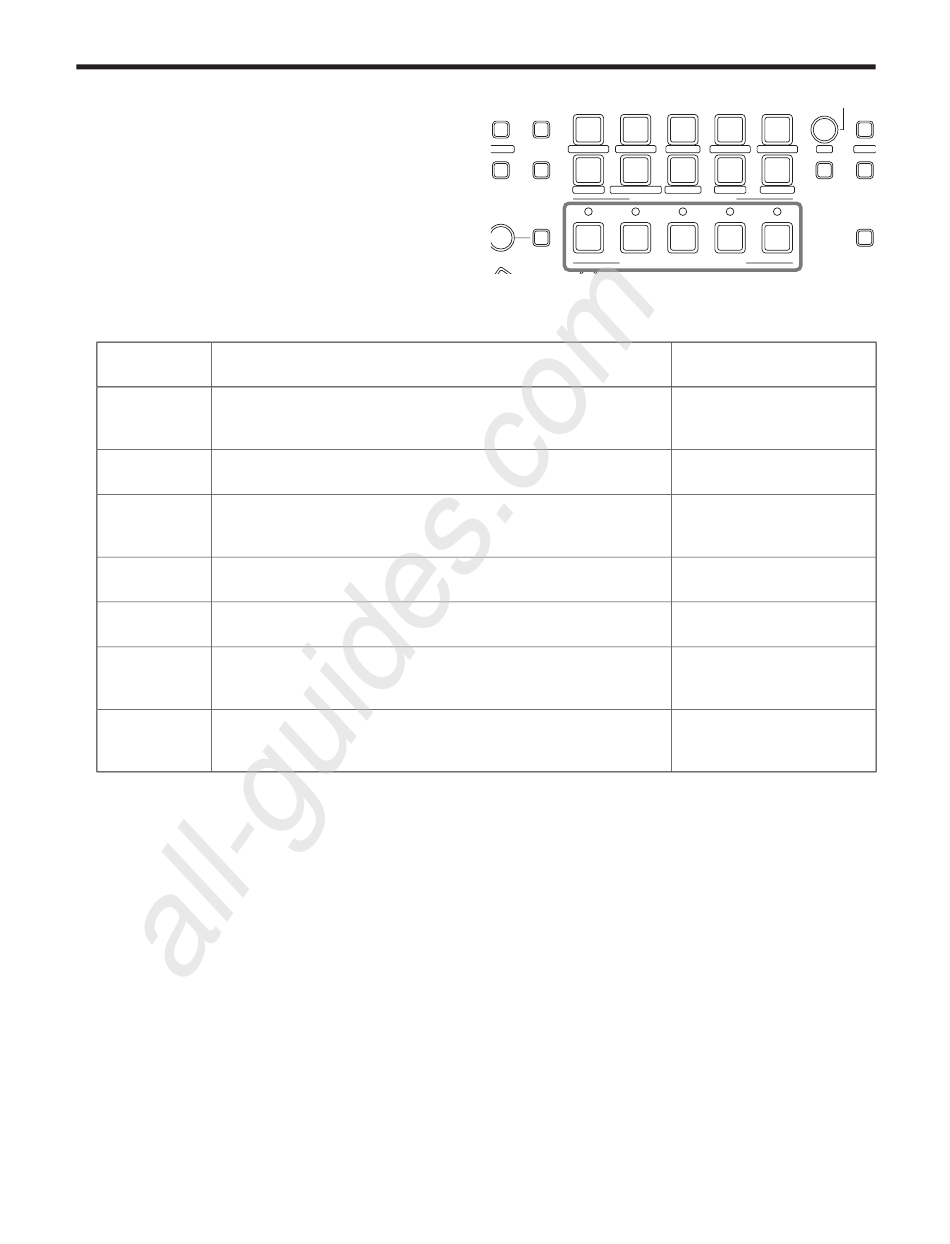

Selecting the remote cameras to be operated
Up to five remote cameras to be operated can be
selected using the CAMERA STATUS/SELECTION
buttons.
When one of the CAMERA STATUS/SELECTION
buttons 1 to 5 is pressed, the indicator of the
corresponding button lights.
The statuses of the remote cameras assigned to
CAMERA STATUS/SELECTION buttons 1 to 5 can
be identified by the lighting statuses of the indicators
above the buttons.
Indicator lighting statuses and remote camera statuses
Indicator
lighting status
  No remote camera has been assigned to the corresponding button.
Off
("NoAsign" is set for the remote camera connection.)
  The power of the remote camera has not been turned on.
(3)
Lights
The remote camera is in the standby status.
(orange)
It is not possible for the unit to be connected to the remote camera
Blinking
concerned because five other AW-RP50 remote camera controllers
(orange)
have already been connected.
Lights
The unit is now connected with the remote camera.
(green)
Blinking
The remote camera concerned is connected to an AW-RP50 remote
(green)
camera controller which is other than the unit.
The image of the remote camera concerned is now on the air.
Lights
(The OA tally signal is received over the network or at the GPI input
(red)
connector.)
The remote camera concerned is connected to another AW-RP50
Blinking
remote camera controller, and the image of the its remote camera is
(red)
now on the air.
1: Follow the steps set forth in the "How to turn the power of the remote cameras on and off" in the <Operations and
Settings> Operating Instructions, and turn on the power of the remote camera.
2: When the AW-PH400 is connected through the protocol converter (AW-IF400), the indicator also will go off when the
LAN cable has been connected or disconnected.
Follow the steps set forth in the "How to turn the power of the remote cameras on and off" in the <Operations and
Settings> Operating Instructions, and turn off the power of the remote camera and then turn it back on.
3: This is "Off" when the AW-PH400 is connected through the protocol converter (AW-IF400).
