Parts and their functions
 

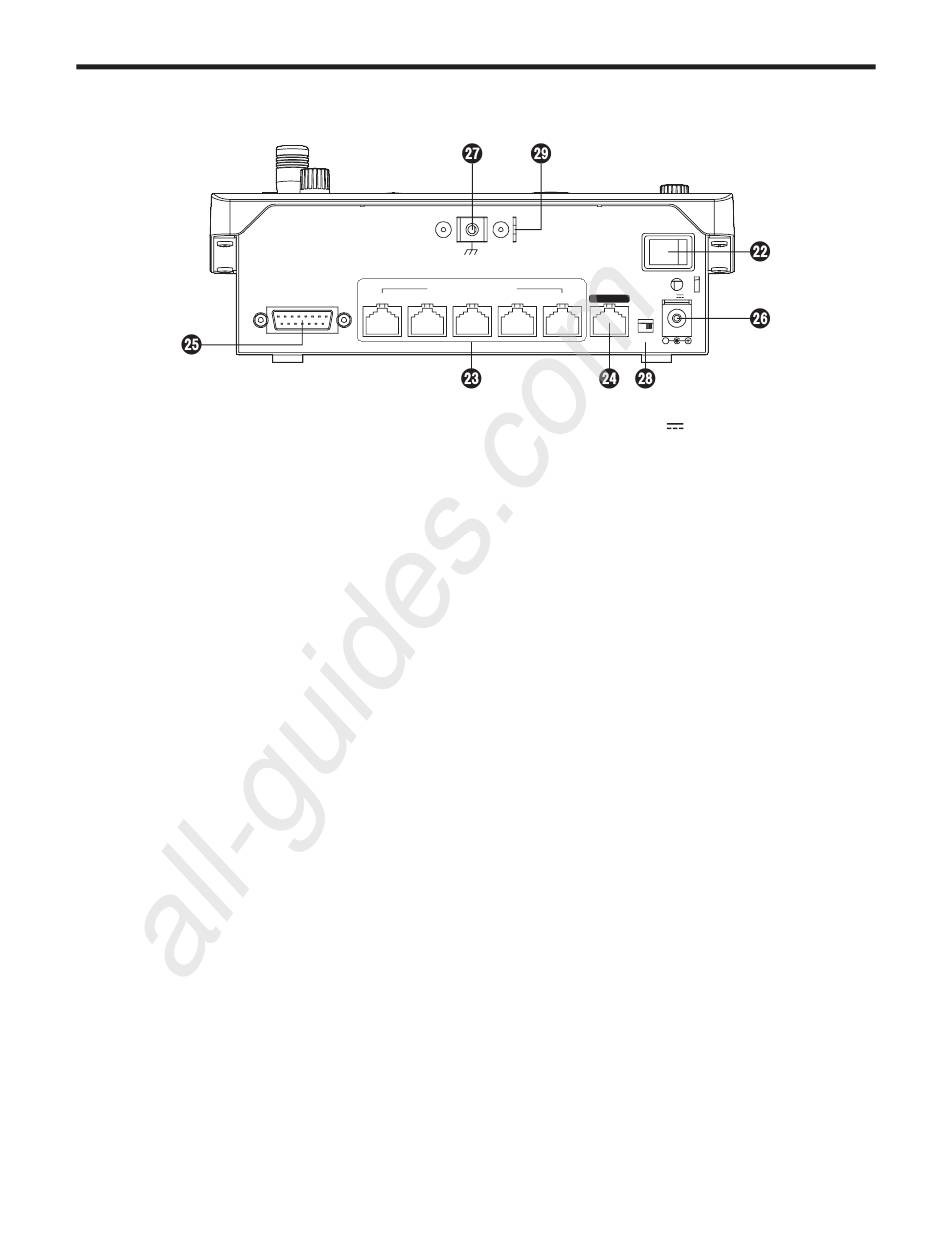

Rear panel
 POWER switch [POWER]
When the POWER switch is set to the ON position,
the POWER indicator () lights, and the unit can
be operated.
 TO PAN/TILT HEAD 1 to 5 connectors
[TO PAN/TILT HEAD 1 to 5] (RJ-45)
Connect the remote cameras to these connectors
using straight cables (category 5 or above).
 LAN connector [LAN] (RJ-45)
(10BASE-T/100BASE-TX)
Connect the remote camera, switcher or host
computer that supports IP connections to this
connector using a LAN cable.
When directly connecting a device to the unit, use a
crossover cable (category 5 or above).
When making the connection through a hub
(switching hub) or other device, use a straight cable
(category 5 or above).
 TALLY/GPI input/output connector
[TALLY/GPI]
(D-sub 15-pin, female, inch thread)
 Refer to "Control interface for external devices"
(<Operations and Settings> Operating
Instructions).
All manuals and user guides at all-guides.com
SIGNAL GND
TO PAN/TILT HEAD
TALLY/GPI 5 4
15 (E)
ON
3 2 1 LAN
BOOT
SV NM
 DC IN socket [12V
The AC adapter provided with the unit is connected
to this socket.
 Ground terminal [SIGNAL GND]
Connect this to the system's ground.
 SERVICE switch [SV/NM]
This switch is used for maintenance purposes.
Normally, it is set at the "NM" position.
 Wire fastening fitting
An anti-theft wire available on the market can be
fastened to this fitting to prevent theft.
POWER
12V IN
IN] (DC 12 V)
