Network settings
This section describes how the unit's network are set.
Note
Correct operation is not possible if the same IP
address already exists in the same network.
Set the IP addresses in such a way that they do not
duplicate any existing IP addresses.
Setting the unit
The unit's settings are established using the
[SYSTEM] menu.
Set the IP address, subnet mask and default gateway.
First, the basic menu operations will be described.
1
Set the MENU button to ON.
Press the MENU button, and light its indicator.
2
Set the PRESET MEMORY/MENU 10
button (SYSTEM) to ON.
When the button is pressed and its indicator is
lit, the [SYSTEM] menu is displayed on the LCD
panel.
[1]CAMERA CTL
3
Turn the F1 dial, and display the
[NETWORK] menu.
[6]NETWORK
4
Press the F1 dial.

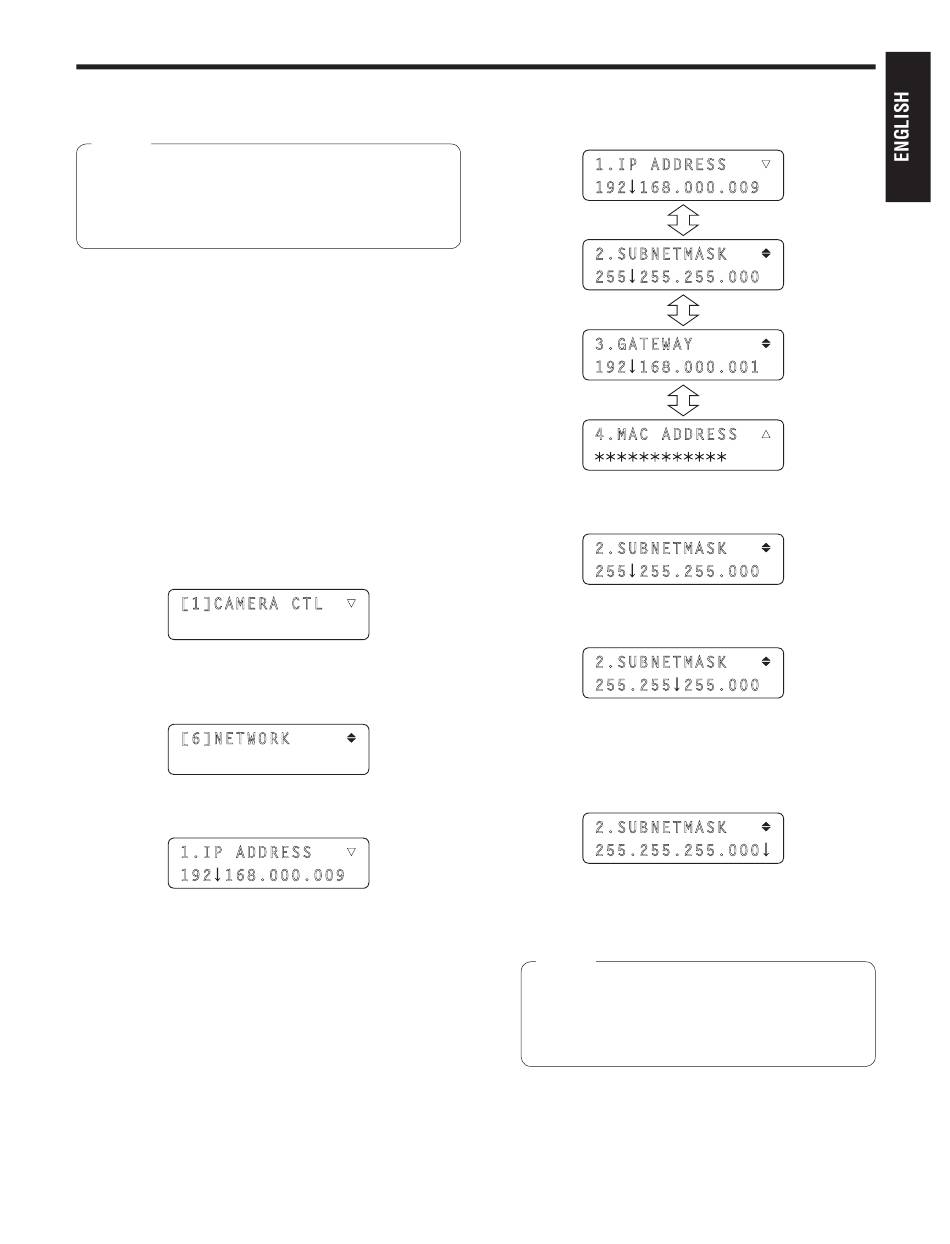

1.IP ADDRESS
192 168.000.009
All manuals and user guides at all-guides.com
5
6
▼
7
▼
18 (E)
Turn the F1 dial, and display the target
setting item.
1.IP ADDRESS
192 168.000.009
2.SUBNETMASK
255 255.255.000
3.GATEWAY
192 168.000.001
4.MAC ADDRESS
Turn the F2 dial, and select the setting.
2.SUBNETMASK
255 255.255.000
Press the F2 dial, and change the setting.
2.SUBNETMASK
255.255 255.000
Input all the settings except for the MAC address
in four blocks of numerals.
When input advances to the last block and the F2
dial is pressed, the IP address is entered.
2.SUBNETMASK
255.255.255.000
The MAC address is merely displayed — it
cannot be changed.
Note
In order for the settings to take effect, the unit
must be restarted.
Turn off the unit's power, and then turn it back
on again.
▼
▲
