Connections
1
Connect the additional remote cameras
and the switcher to be introduced and
the unit to the network within the same
subnet.
2
On the [SYSTEM] menu, select [AUTO
SET IP], and display [AUTO SETUP].
Then select "RENEW IP ADR", and press
the F2 dial.

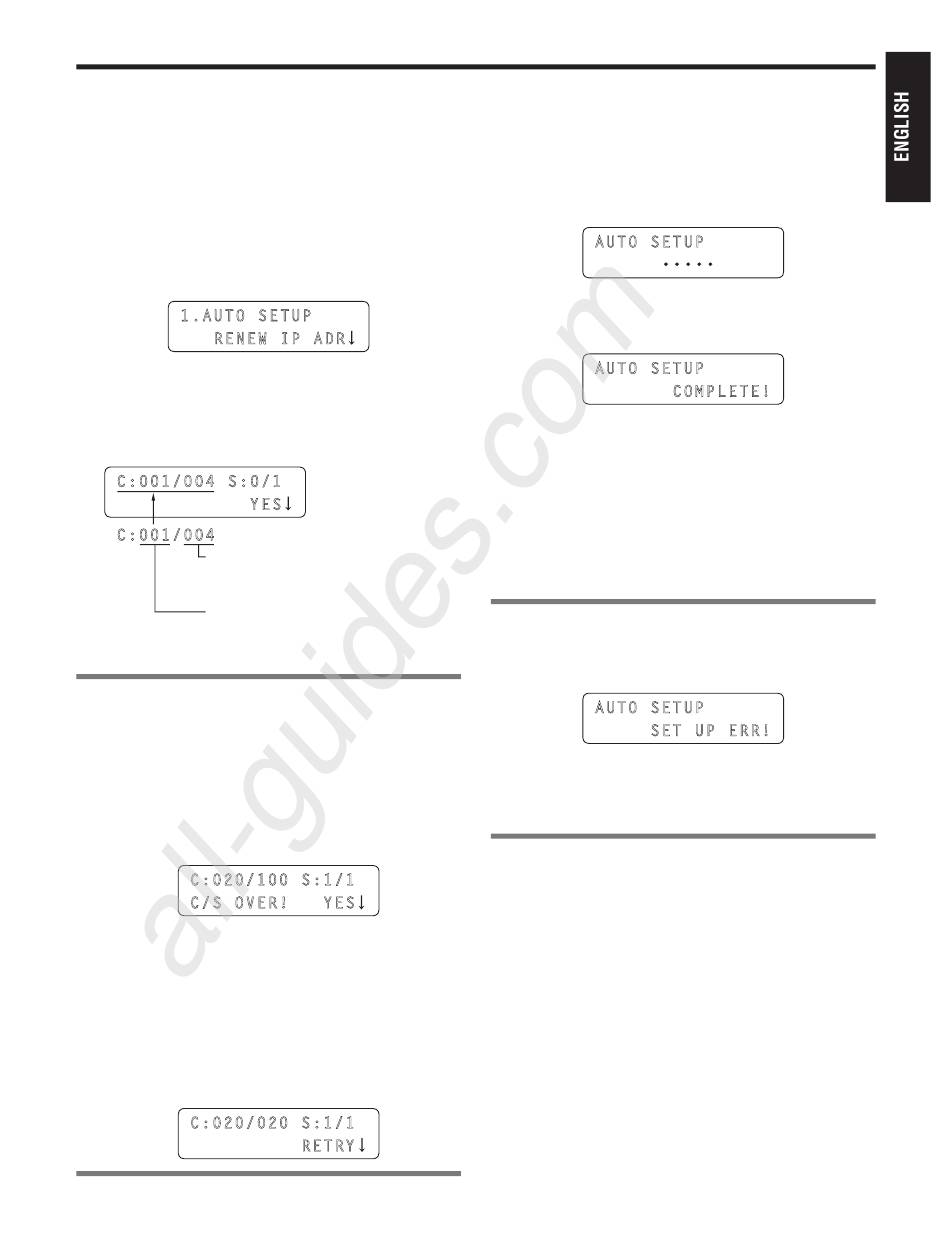

1.AUTO SETUP
RENEW IP ADR
Both the number of devices (all remote cameras
and the switcher) currently being managed by the
unit and the number of new devices detected are
displayed on the LCD panel.
C:001/004 S:0/1
YES
C:001/004
Number of devices currently
managed by the unit + Number of
new devices detected
Number of new devices detected
C: Remote camera, S: Switcher
Memo
If the number of new devices detected exceeds
the number of devices that can be registered
(100 remote cameras and 1 switcher), [C/S OVER!]
will be displayed at the bottom of the LCD panel.
Automatic IP address setting can be performed
even in this state, but IP addresses will be set only
for the number of devices that can be registered.
C:020/100 S:1/1
C/S OVER!
The number displayed for "Number of new devices
detected" may be lower than the actual number
of devices to be set, due to a cause such as the
remote cameras or switches not being powered on.
In this case, eliminate the cause of the problem,
select "RETRY", and then press the F2 dial to retry
the operation.
The number of units to be added can be updated.
C:020/020 S:1/1
All manuals and user guides at all-guides.com
YES
RETRY
30 (E)
3
Turn the F2 dial, select "Yes", and then
press the F2 dial.
This starts the "Auto IP setting" process.
When "Auto IP setting" has been initiated, the
progress is shown by the number of displayed
dots which are reduced one by one.
AUTO SETUP
When all the operations have been completed
successfully, "COMPLETE!" is displayed.
AUTO SETUP
The remote cameras and the switcher are
automatically rebooted, and they restart with the
new IP addresses which were set.
The remote cameras can now be operated from
the unit.
The function for linking the switcher with the unit
becomes available for use at this point.
Memo
If the IP addresses were not set successfully,
"SET UP ERR!" is displayed.
AUTO SETUP
SET UP ERR!
The cause of the problem is likely a network
malfunction.
Check the connection status of the hub and LAN
cables, and then retry the "Auto IP setting" operation.
COMPLETE!
