Parts and their functions

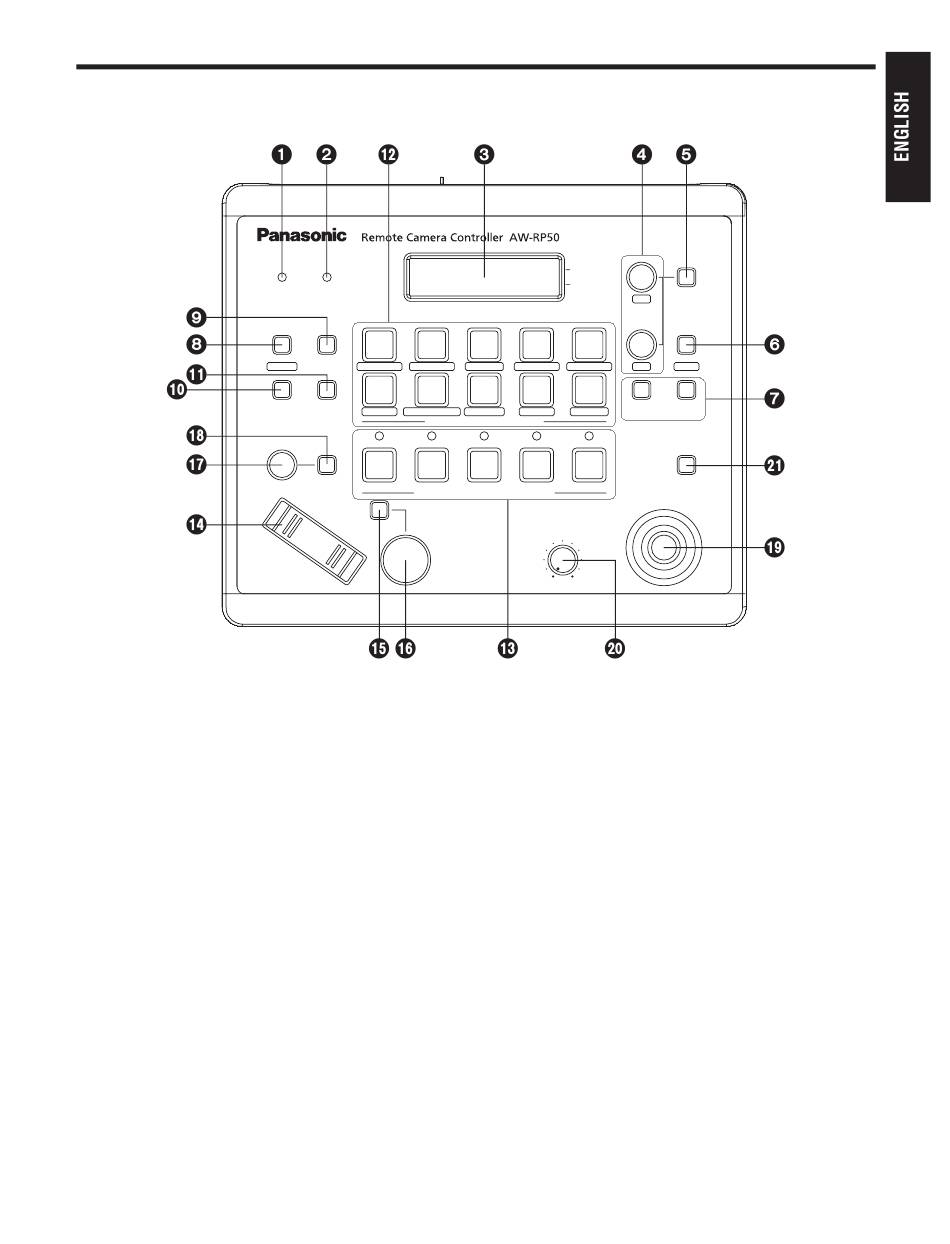

Control panel
TELE
POWER indicator [POWER]
This indicator lights when the POWER switch
() on the rear panel is set to ON while power is
supplied to the DC IN socket.
ALARM indicator [ALARM]
This indicator lights when there is a problem with
the power supply (voltage drop).
It also lights when an alarm (a cooling fan alarm
or pan/tilt error) has been received from a remote
camera.
Refer to "Checking the equipment alarm
information" (<Operations and Settings>
Operating Instructions).
When the alarm indicator has lit, stop using the unit
immediately, and be absolutely sure to contact your
dealer.
Continuing to use the unit even after an alarm has
occurred may cause the unit to malfunction.
The alarm information can be output to an external
device from the unit's TALLY/GPI connector ().
LCD panel
The current setting statuses are displayed on this
panel.
All manuals and user guides at all-guides.com
POWER
ALARM
1
2
MENU
PAGE
GAIN/PED
R/B GAIN
6
7
STORE
DELETE
DETAIL
SCENE/MODE
PRESET MEMORY / MENU
1
2
IRIS
AUTO
CAMERA STATUS / SELECTION
AUTO
ZOOM
WIDE
FOCUS/
F1
F2
3
4
5
R/B PED
AWB/ABB
SHUTTER
8
9
10
CAMERA
SETUP
SYSTEM
USER1
3
4
5
LOW
HI
OTAF
PTZ/FOCUS SPEED
PAN/TILT
PUSH
F1 dial, F2 dial [F1, F2]
These dials are turned to change the menu values,
and they are pressed to enter the changes that
have been made.
The F1 dial is used to operate the items displayed
at the top of the LCD panel, and the F2 dial is used
to operate the items displayed underneath.
What appears on the on-screen displays of the
remote cameras and how operations are performed
differ depending on the camera type.
Refer to "Operating the menu items of the
selected remote camera" (<Operations and
Settings> Operating Instructions).
CAMERA OSD button [CAMERA OSD]
When the CAMERA OSD button is held down, its
indicator lights, and the on-screen menu of the
selected remote camera is displayed as the output
image of the remote camera.
When the button is held down again while its
indicator is lit, the menu is cleared, and the indicator
goes off.
12 (E)
F1
CAMERA
OSD
F2
EXIT
USER2
PT ACTIVE
