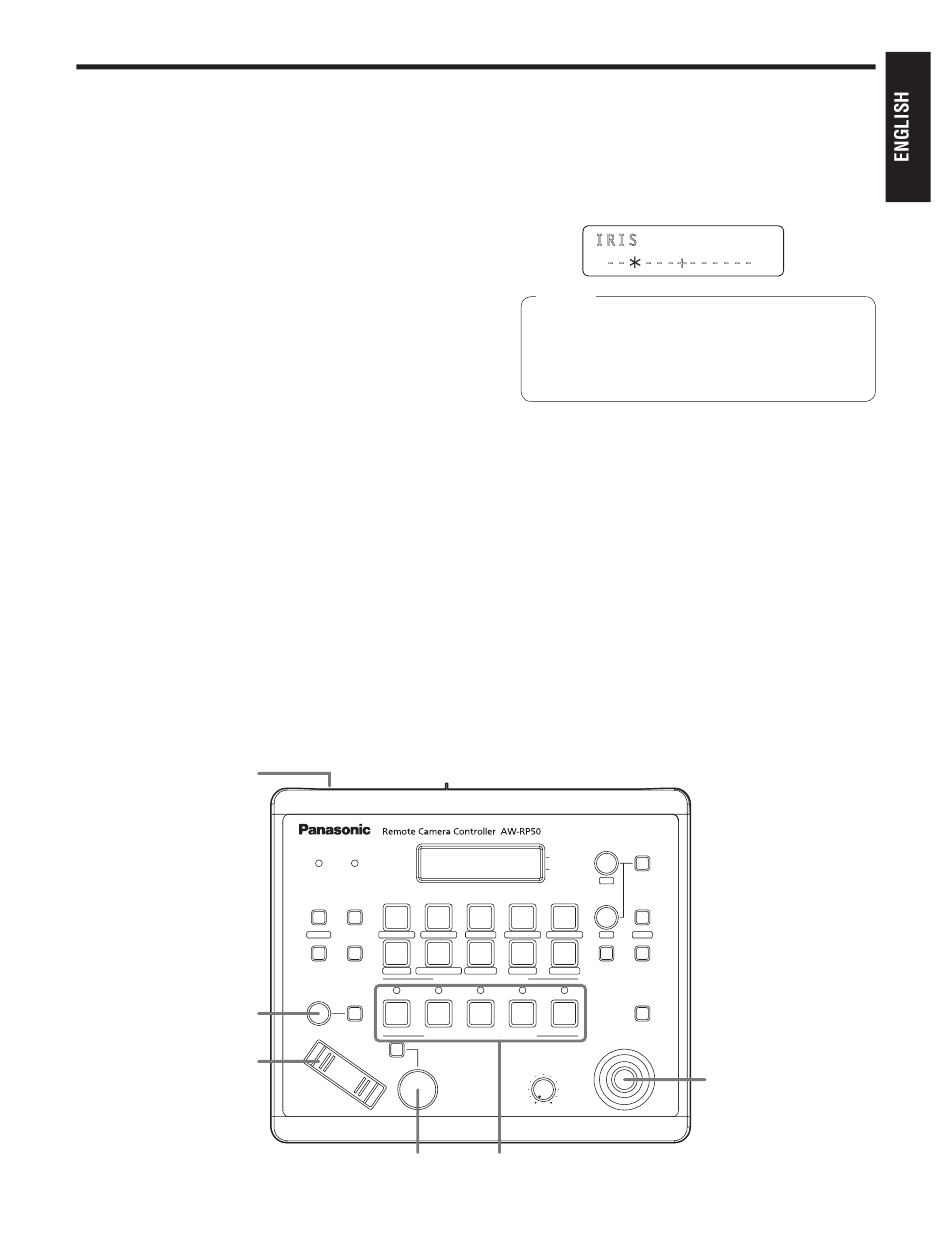

Basic operations of the unit
1
Turn on the unit's power.
Set the POWER switch to the ON position.
Power is now supplied to the unit, and the
POWER indicator lights.
  However, when [CAMERA]  [POWER] 
AUTO ON item have been selected and "On" is
selected as the AUTO ON item setting, power-
on is automatically instructed for the remote
cameras controlled by the [SYSTEM] 
CAM IP ADR item.
2
Select the remote cameras.
Select the remote cameras to be controlled using
the CAMERA STATUS/SELECTION buttons.
3
Adjust the direction in which the remote
cameras are to be pointed.
Use the PAN/TILT lever to adjust the direction in
which the remote cameras are to be pointed.
4
Adjust the zoom.
Use the ZOOM button to adjust the lens zoom.
When the TELE side is pressed, the zoom is set
to the telephoto mode; when the WIDE side is
pressed, it is set to the wide-angle mode.
1, 7
5
4
For detailed operations, refer to the Operating Instructions — <Operations and Settings>.
All manuals and user guides at all-guides.com
POWER ALARM
1 2
MENU PAGE GAIN/PED R/B GAIN R/B PED
6 7
STORE DELETE DETAIL SCENE/MODE CAMERA
PRESET MEMORY / MENU
1 2
IRIS AUTO
CAMERA STATUS / SELECTION
AUTO
TELE
ZOOM
WIDE
FOCUS/
PUSH
6
16 (E)
5
Adjust the lens iris.
Use the IRIS dial to adjust the lens iris.
  While the lens iris is being adjusted, a level
meter is displayed on the LCD panel. (What is
displayed by the level meter is an approximate
value.)
IRIS
-- ---+------
Note
When performing adjustments for one remote
camera from a multiple number of AW-RP50
remote camera controllers, the level meter may
not show the correct displays.
6
Adjust the focus.
Turn the FOCUS/PUSH OTAF dial, and adjust the
lens focus.
When the dial is pressed during manual focusing,
the auto focus mode is established temporarily,
and the subject is brought into focus automatically.
  The OTAF (one-touch auto focus) takes effect
for remote cameras which are equipped with
the OTAF function.
7
Turn off the unit's power.
Set the POWER switch to the OFF position.
The unit's power is turned off, and the POWER
indicator goes off.
  Even when the unit's power is turned off, the
power of the connected remote cameras does
not go off.
F1
F2
F1 CAMERA
OSD
3 4 5
AWB/ABB SHUTTER F2 EXIT
8 9 10
SETUP SYSTEM USER1 USER2
3 4 5
PT ACTIVE
LOW HI
OTAF PTZ/FOCUS SPEED PAN/TILT
