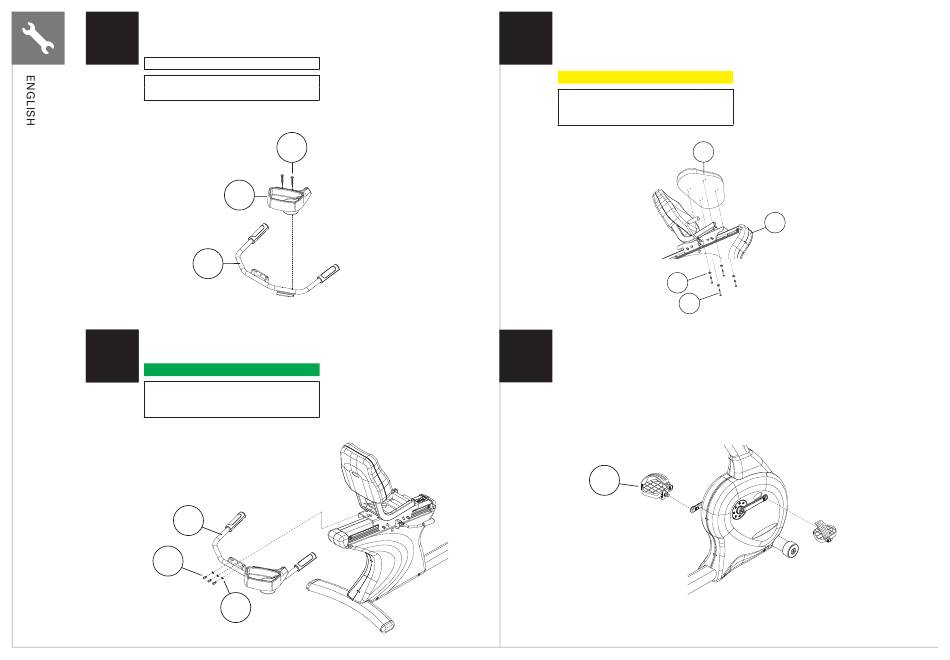

• Secure the ACCESSORY TRAY (10) to the SEAT HANDLEBAR (11) with 2 BOLTS (M).
Be careful when inserting the bolts to clear the wires inside the handlebar to prevent
7
damage. Tighten with the screwdriver.
WHITE BAG
Description
M M5x10L Bolt
• Fix SEAT HANDLEBAR (11) by 3 BOLTS (N) and LOCK WASHERS (O) to wire harness
2 8
from the seat frame and tighten by 6MM L-SHAPED WRENCH.
GREEN BAG
Description
N
M8x15L Bolt
O
M8 Lock Washer
11
N
6
Qty
2
M
10
11
Qty
3
3
O
• Fix SEAT PAD (12) on SEAT FRAME (13) by 4 BOLTS (P) with LOCK WASHERS (Q) by
5MM L-SHAPE WRENCH.
9
• Attention: There are eight holes in the neath of seat pad, please follow the drawing of
STEP 9 to find the correct position.
YELLOW BAG
Description
P
M6x55L Bolt
Q
M6 Lock Washer
Q
P
• Attach the PADELS (14) to crank and tight them by 15MM PADEL WRENCH.
10
14
Qty
4
4
12
13
