Sportec R60 Mode D'emploi page 5

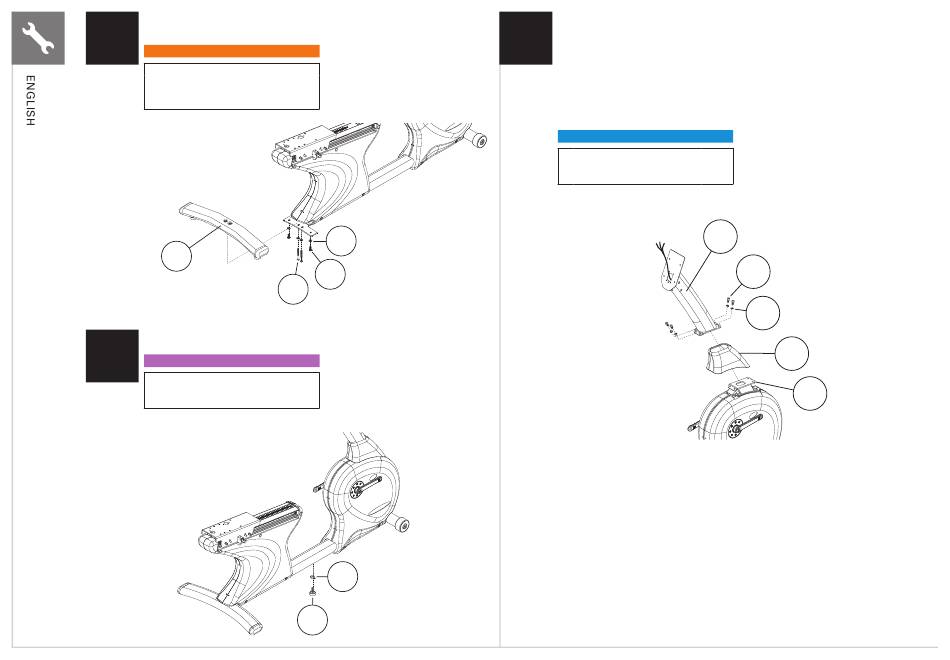

• Install the REAR FOOT (1) with the 4 LOCK WASHERS (C), 2 inside BOLTS (A),
and 2 outside BOLTS (B). Tighten with the 6MM L-SHAPE WRENCH.
1
ORANGE BAG
Description
A M8x65L Bolt
B M8x20L Bolt
C M8 Lock Washer
1
• Put FOOT PAD (D) through FOOT PAD NUT (E) then fix on the frame.
2
PURPLE BAG
Description
D Foot Pad
E Foot Pad Nut
4
Qty
2
2
4
C
B
A
Qty
1
1
E
D
• Slide the CONSOLE MAST BOOT (2) onto the CONSOLE MAST (3).
3 • Unfold the wire harness and heart rate wires located in the console mast frame
bracket. Attach the wire tie coming from the bottom of the console mast to the wire
harness and heart rate wires. Pull the wire tie with wire harness and heart rate wires
up through the top of the console mast while simultaneously sliding the mast into
the frame bracket.
• Secure the console mast to the FRAME BRACKET (4) with 4 BOLTS (F),
4 WASHERS (G) and tighten by 6MM L-SHAPE WRENCH.
• Slide the console mast boot down and snap it into place on the side cover.
BLUE BAG
Description
F M8x16L Bolt
G M8 Lock Washer
Qty
4
4
3
F
G
2
4
