6.4.0 WC4-B-L CONFIGURATION (WAVE.COM4 POWER UNIT)

As the supply cables of the additional modules (LED- or 230 V-colour module) change dependent
on the presence of the same, it must be ensured that these possess an adequate conductor cross-
2
section (1.5 mm ) and that these supply cables of the respective boards are additionally
interconnected by means of cable ties as apparent from the following images.

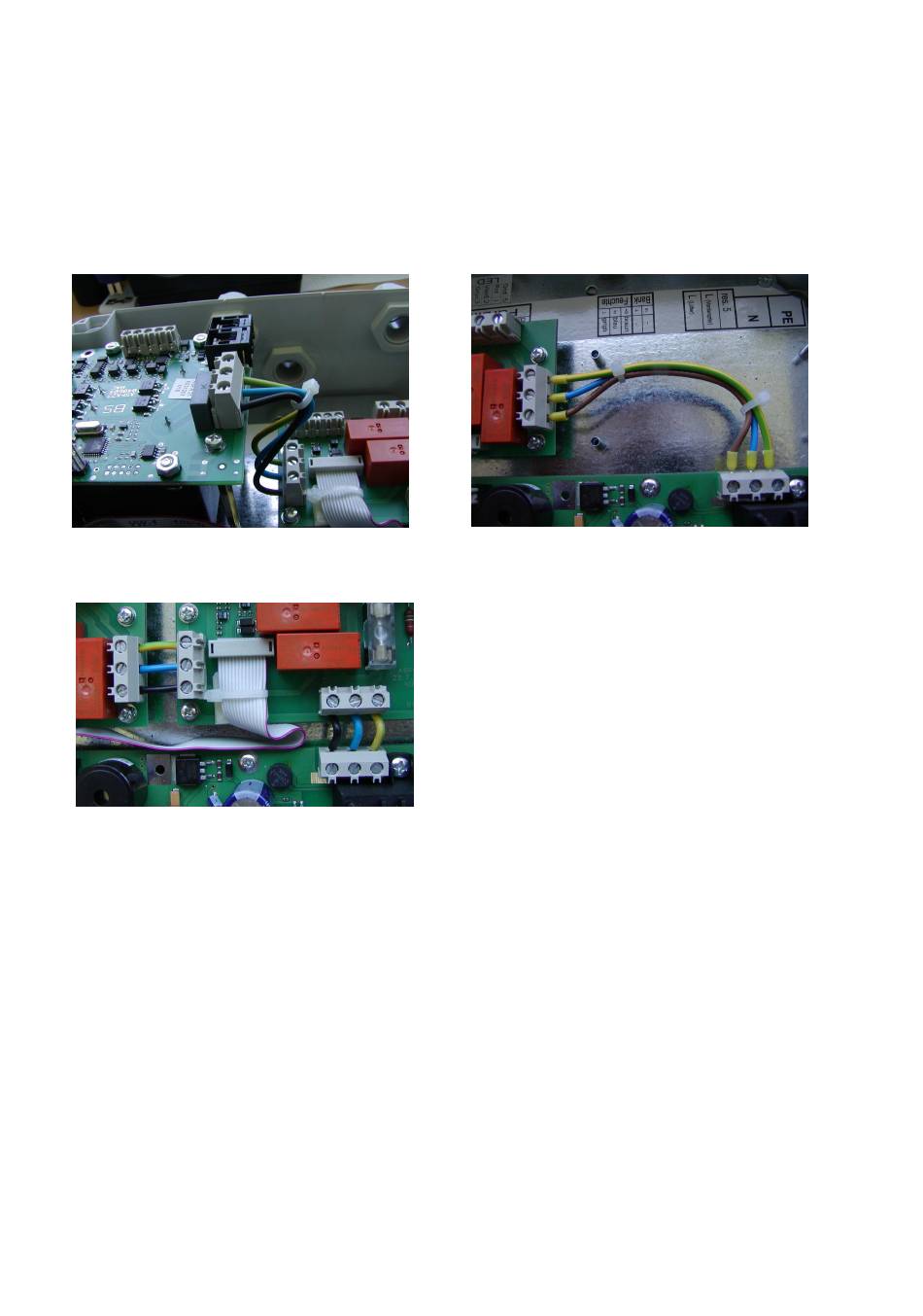

LED colour module
230 V-colour module without
with humidity
humidity module
module
230 V colour module
with humidity module
