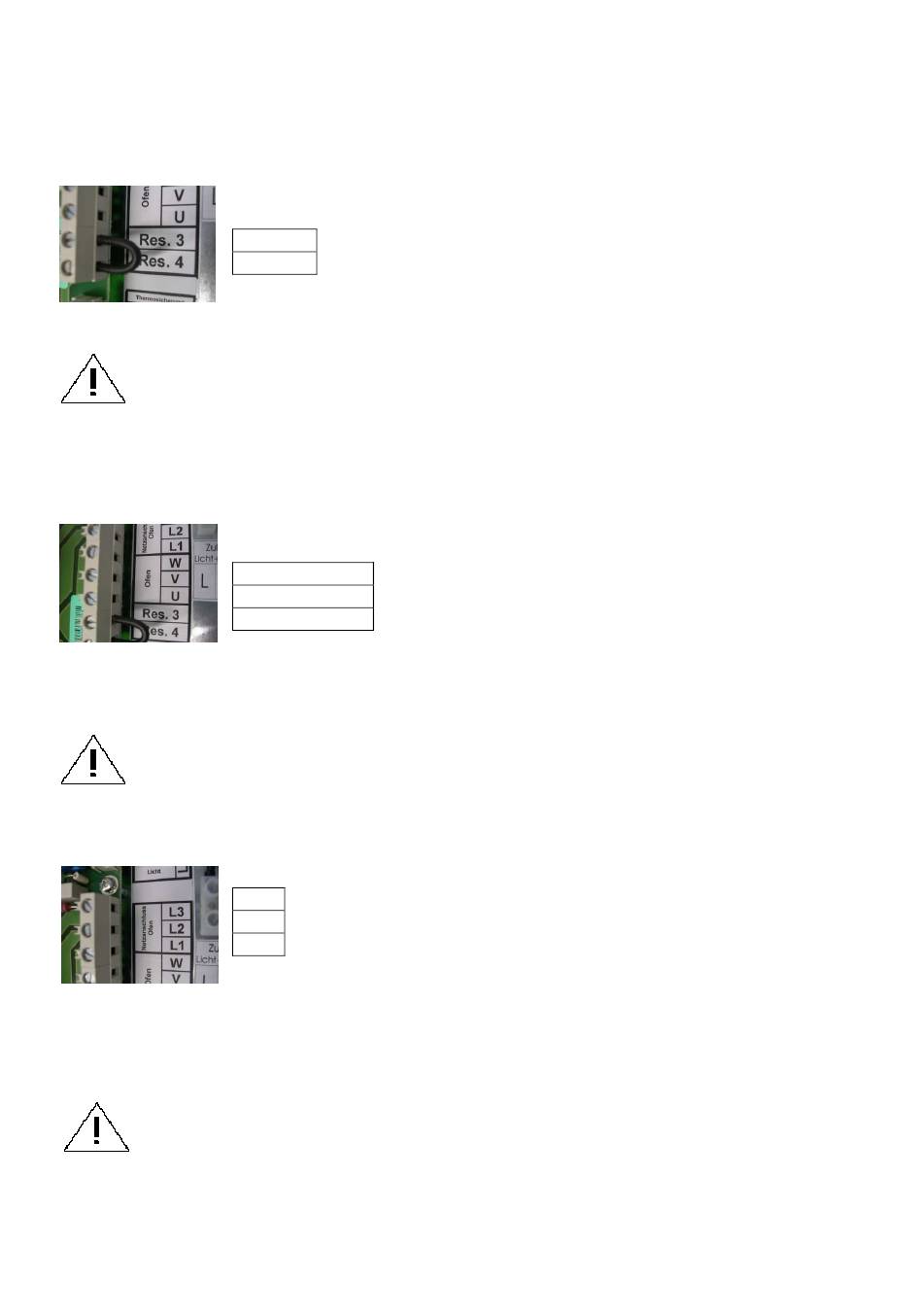

6.4.3 Res.3 and Res.4
The mains phase L1 is looped through here. A clamp must be placed between the
terminals for this purpose.

6.4.4 Connect sauna heating device

These connections must be used for the 5-pole heater cable. Contact the earth wire and the
neutral wire with the collective terminals 6.4.7 and 6.4.8.
Feed the cable through the construction screw joint provided for.

6.4.5 Network connection control device; heater supply cable

These connections must be used for the 5-pole mains connection. The supply cable is directed
sensibly from the building's electricity supply via an all-pole main switch. Contact the earth wire
and the neutral wire with the collective terminals 6.4.7 and 6.4.8
Feed the cable through the construction screw joint provided for.
