Instructions for assembly and use, only for experts
6.5.0 TERMINAL CONFIGURATION HUMIDITY MODULE (OPTIONAL: WC4-H-
PCB)

6.5.1 Voltage supply

The ventilator cable is inserted via the cable screw joint and connected to terminals L
and PE. The outflow has a 4A slow fuse.

6.5.2 Humidity sensors and bench sensors

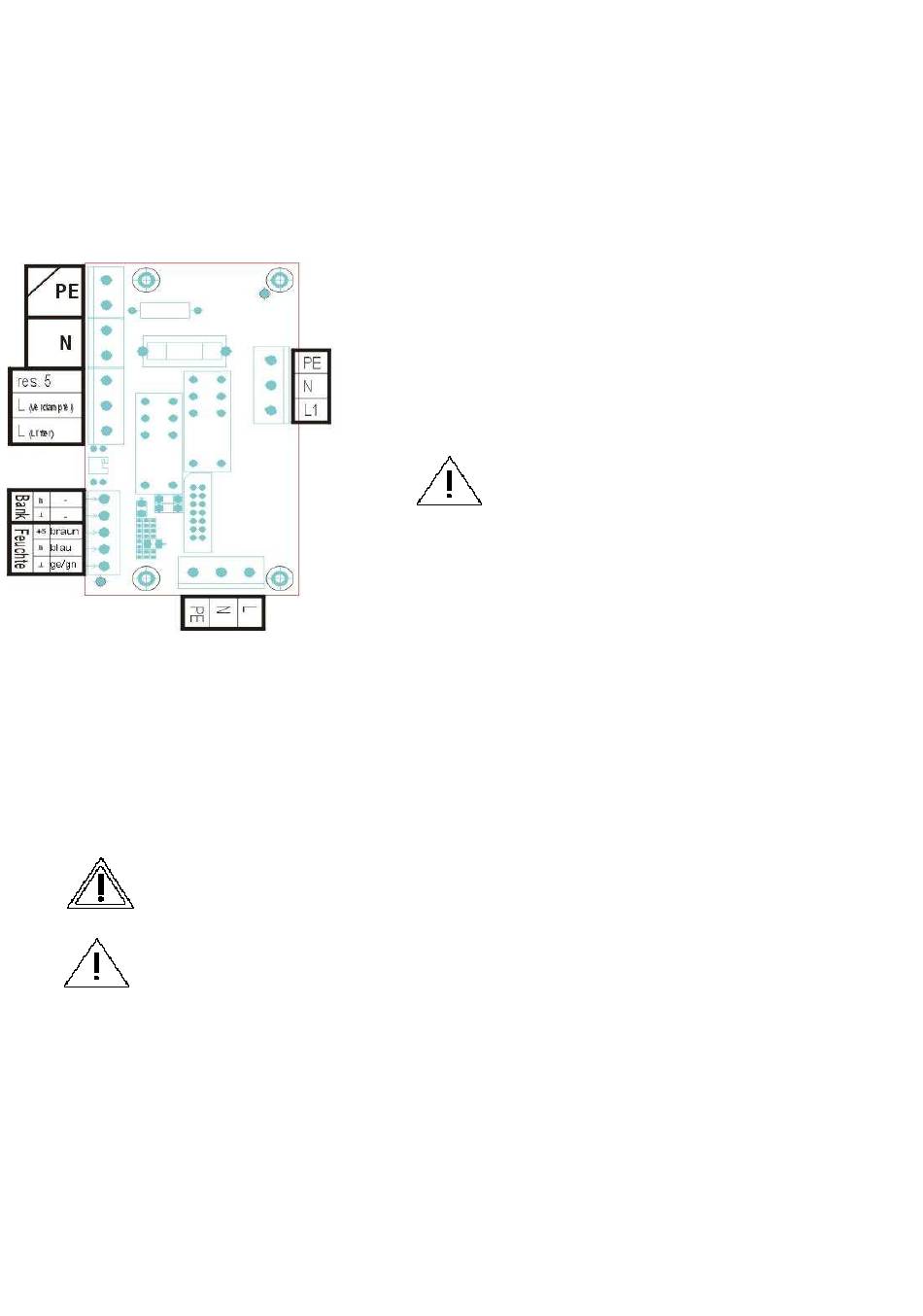

Bench sensors and humidity sensors must be connected to the terminals provided for on the
humidity expansion board WC4-H-PCB.
Assembly work on the sensors may only be undertaken when the Wave.com4 sauna
control unit is switched offf / disconnected from the mains at all poles and may only be
undertaken by a qualified/ authorised technician.
The polarities must be observed under all circumstances (observe labelling).
Incorrect polarities can lead to permanent damage.
WE DO IT FIRST.
The neutral wire "N" and the earth wire terminals"PE"
are collective connections.
The right supply is internally connected to the base
module (see 6.4.10).
The evaporator is conducted via the PG screw joint and
connected to terminals L
The evaporator itself requires its own cut-
out for safety reasons in the event of water
deficiency.
The water deficiency connection can be connected to
"res. 5" of the optional humidity extension board WC4-
H-PCB.
, N and PE.
(evaporator)
(ventilator)
, N
