Instructions for assembly and use, only for experts

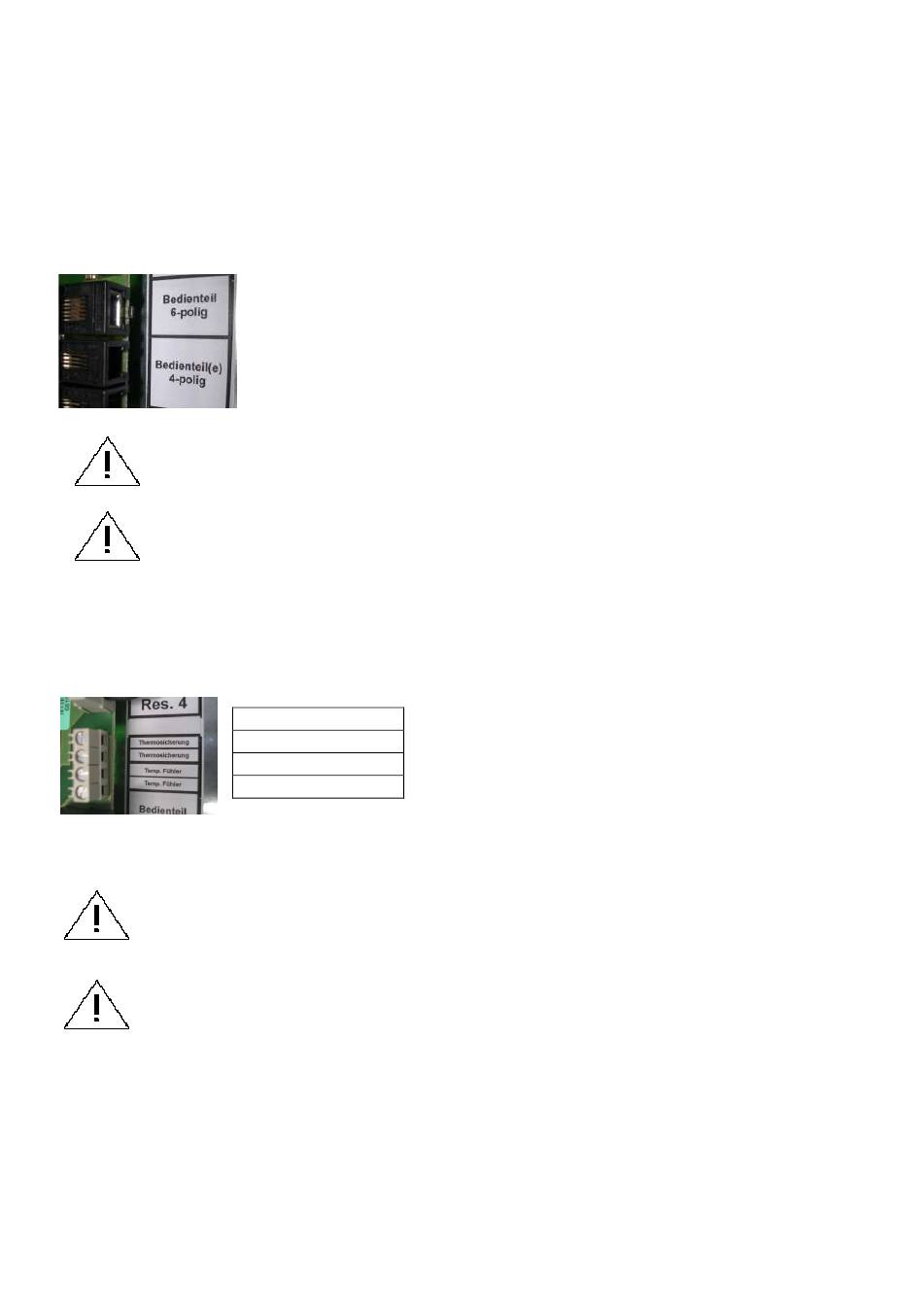

6.4.1 Operating unit

The WC4-B-L (Wave.com4 sauna control power unit) has the following data connections:
• 2 pcs RJ10 4/4
• 1 pcs RJ12 6/6
4-pole cable may not be inserted into 6-pole socket, as otherwise the operating
unit will be damaged.
Do not use force under any circumstances.

6.4.2 Heater sensors

The cables must be properly inserted into the casing via the PG screw joint and connected.
Heed the cable labelling under all circumstances.
Wrongly connected cables can cause irreparable damage.
WE DO IT FIRST.
Thermal fuse
Thermal fuse
Temp. sensor
Temp. sensor
47 /228
