Instructions for assembly and use
**x = Colour of the operating unit:
D= dark wood
H= light wood
S= black
W= white

1.4.0 FIELD OF APPLICATION

Heater control unit for sauna cabins.
The Wave.com4 sauna control unit may only be used with the accessories intended for
its use.

1.5.0 OVERVIEW/ CLEANING

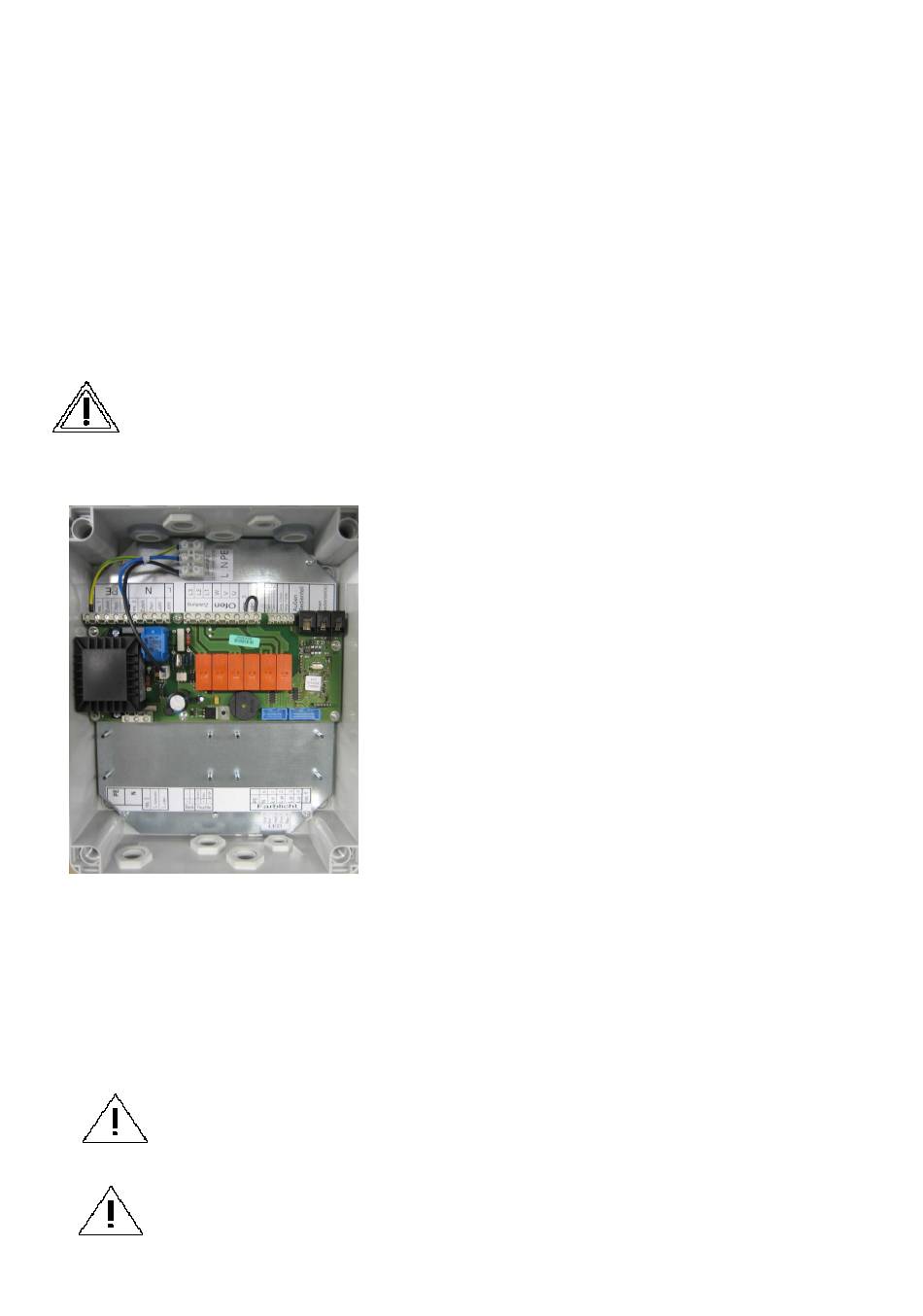

Figure 20: Wave.com4 base module
Cleaning of the external casing: 1 x annually
You now possess a maintenance-free Wave.com4 sauna power unit. Never open! When any
work is undertaken on the control unit, the power unit must be completely disconnected from the
mains and switched off at all poles.
Remove dust and similar from the (external) casing with a dry, soft cloth.
Maintenance of the Wave.com4 power unit itself may only be undertaken by
qualified experts (authorised electronics specialists).
WE DO IT FIRST.
Wave.com4 power unit:
Electronic control device for sauna heater. The
power unit which is controlled by a µ-processor has a
control range from 30 ° C to 110 ° C.
A herbal steam column can also be operated with the
power unit. The power unit regulates the temperature
and the cabin light which can be electronically dimmed.
An electronic clock with a buzzer which reminds you of
the infusion replaces the conventional hourglass.
Humidity is regulated with the optional add-on module. A
control device for colour lamps is optionally integrated.
Switching power: 9 kW max.
12 /228
