OPERATION

GETTING STARTED

CAUTION! ALWAYS DISCONNECT THE SAW FROM THE
POWER SOURCE BEFORE MAKING ANY ADJUSTMENTS.
Refer to the "Service Parts List Drawing". Install a blade as
detailed in the "Installing or Removing the Blade" section.
1. Mounting the Table Mitre Saw
WARNING:
To reduce the risk of injury from unexpected saw
movement, place the saw in the desired location either on a
workbench or other recommended leg set. The base of the saw
has four holes to mount the mitre saw. If the saw is to be used in
one location, permanently fasten it to the workbench or leg set
using appropriate bolts with lock washers and nuts.
•
Tighten the mitre and bevel locks.
•
Position the saw so other people cannot stand behind it.
Thrown debris could injure people in its path.
•
Place the saw on a firm, level surface where there is plenty of
room for handling and properly supporting the workpiece.
•
Support the saw so that the table is level and the saw does
not rock.
•
Bolt or clamp the saw to its support.
2. Installing or Removing the Blade
WARNING:
Only use genuine Evolution blades which are
designed for this machine. Ensure that the maximum speed
of the blade is compatible with the machine. Only perform
this operation with the machine disconnected from the mains
supply.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the machines blade.
•
Pull out the cutting head locking pin and allow the cutting
head to rise to its upper position. (Fig. 1)
•
Remove the top blade guard with the attached riving knife
by loosening the socket headed fixing screw (Fig. 2) and
withdrawing the riving knife upwards. The riving knife is
slotted for easy removal.
•
Push in the sprung loaded lower guard operating pawl and
slide it upwards along the slot. The lower guard will rotate
into the machine exposing the blade. (Fig. 3)

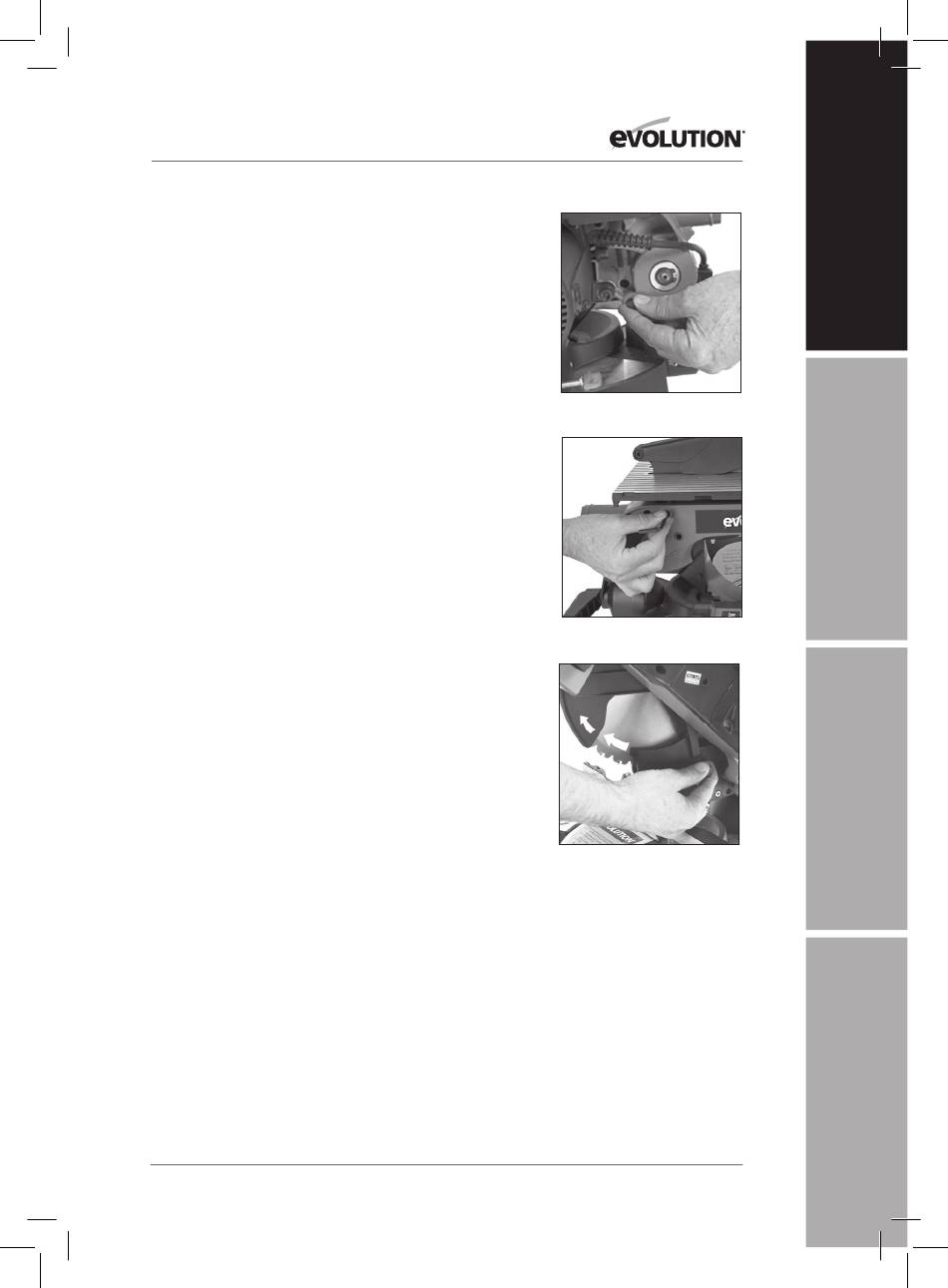

FIG. 1
FIG. 2
FIG. 3
