OPERATION

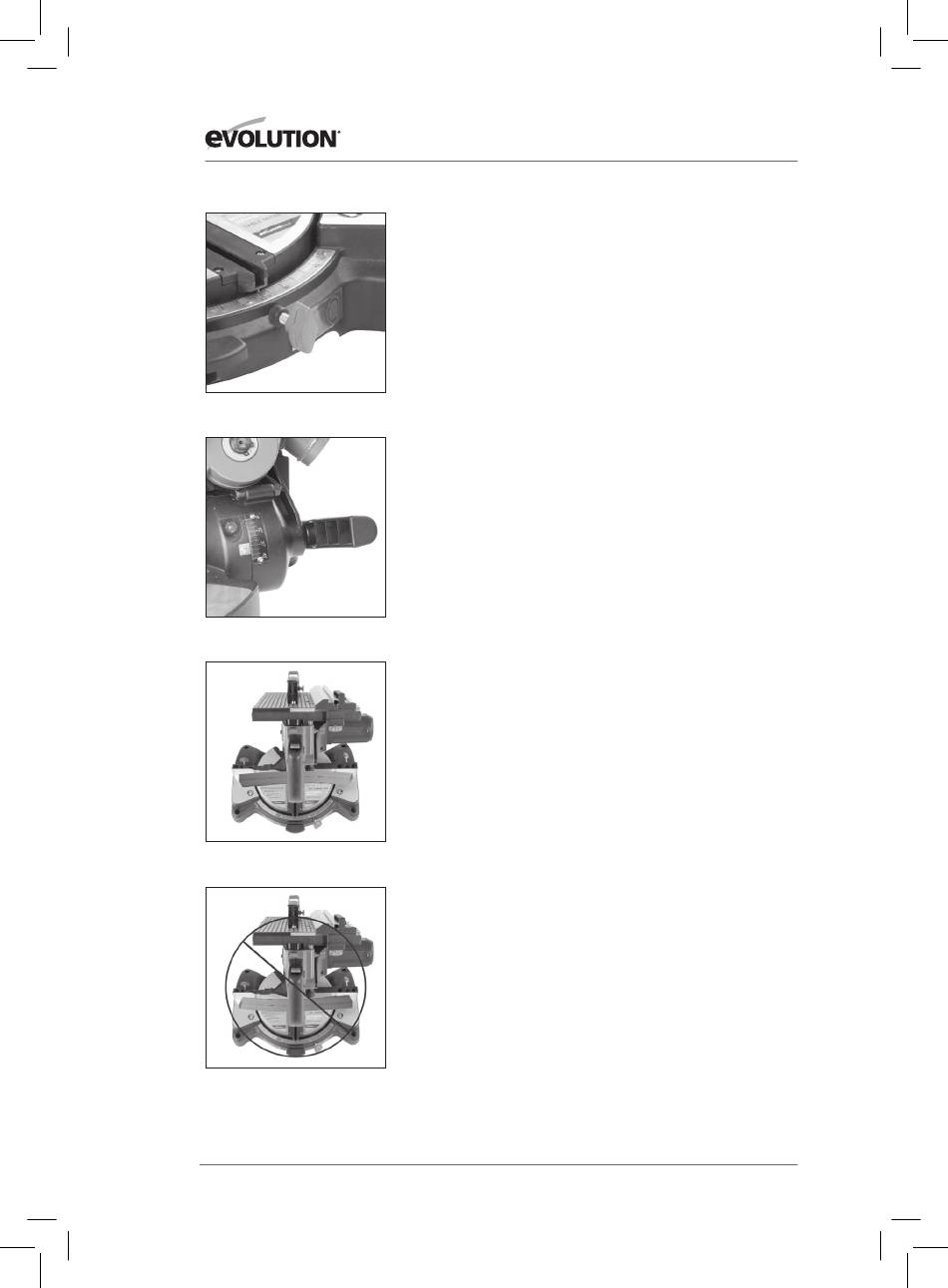

FIG. 11
FIG. 12
FIG. 13
FIG. 14
6. Mitre Cutting
Any angle from 50 º left to 50 º right is available, and a protractor
scale can be found on the front of the machine table.
Positive stops are provided at 0 º and 15 º , 22.5 º , 30 º and 45 º to
the RH and LH side.
Loosen the mitre angle locking screw. This is situated on the
RH side of the machine table just above the 22.5 º index mark.
Push down the positive stop locking lever and turn the table
to the desired angle as indicated on the mitre protractor
scale by using the cutting handle. Lock in the required
position by tightening the mitre angle locking screw.
(Fig. 11) A small index pointer can be found under the table
insert to aid accurate setting.
If utilizing the positive stop facility it is still good practice to
lock the table into position using the mitre locking screw
Start the saw and allow it to reach full operating speed
before making the cut.
7. Bevel Cutting
The cutting head can be set at any angle up to a 45 º to the LH
side only.
The bevel angle locking lever is found at the rear of the
machine and a protractor guide and pointer is incorporated
into the casting to the front of the locking lever to aid setting.
(Fig. 12)
Loosen the bevel lock lever.
Tilt the saw head to the desired angle. Use the protractor
guide provided to the front of the lever to aid setting.
Ensure the locking lever is tightened securely when the
required angle has been achieved.
Stand to the left hand side of the handle to make the cut.
8. Compound Cutting
A compound cut is a combination of a mitre cut and a bevel cut.
Select the required mitre angle as previously described.
Select the required bevel angle as previously described.
Ensure the tightness of all adjustment/locking screws before
making a cut.
9. Cutting Bowed Material
Before cutting any workpiece, check to see if it is bowed. If it is
bowed the workpiece must be positioned and cut as shown.
(Fig. 13 & Fig. 14)
Do not position the workpiece incorrectly or cut the workpiece
without the support of the fence.
20
