OPERATION

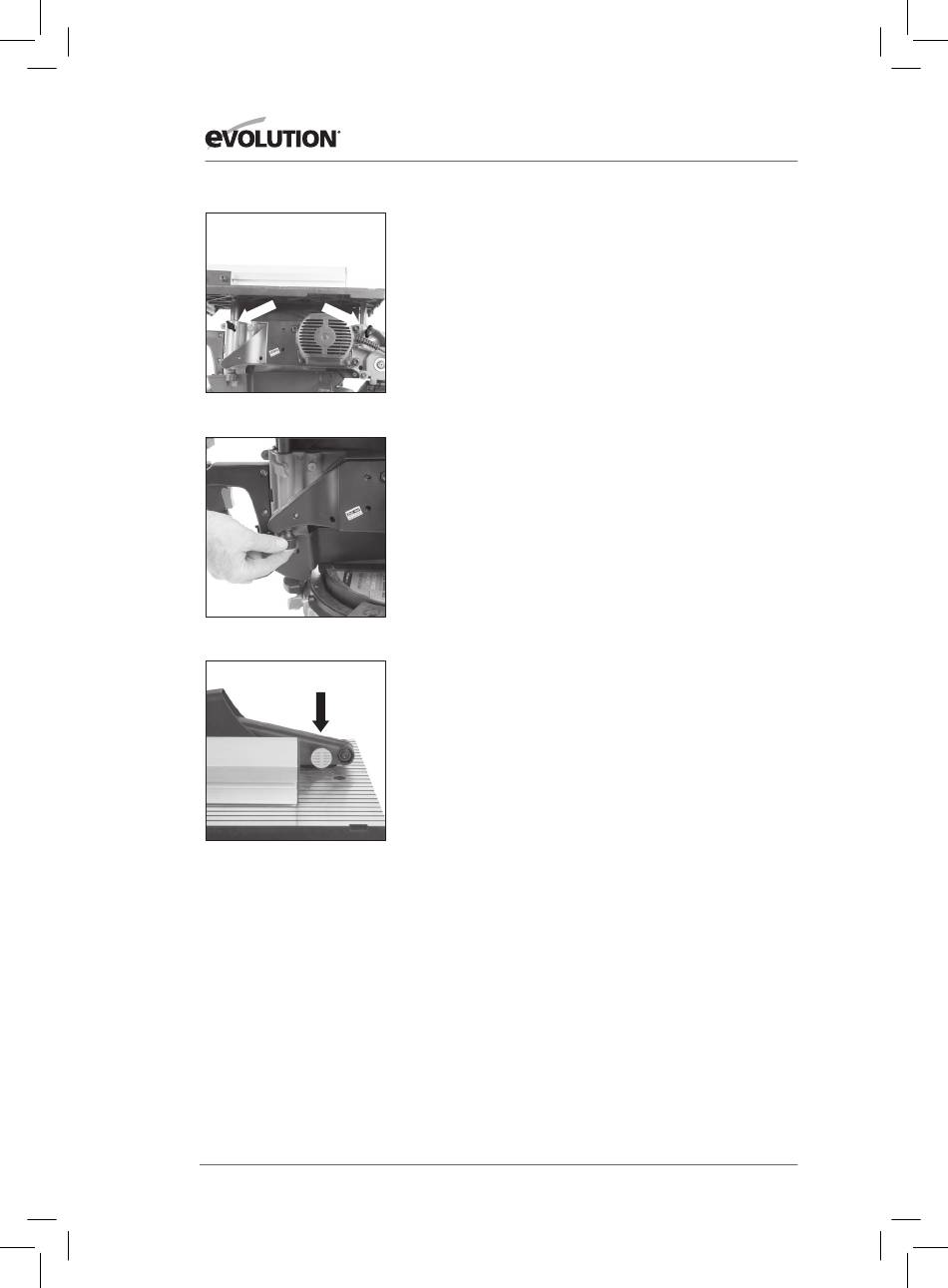

FIG. 17
FIG. 18
FIG. 19
2. Adjusting the Table Height
The height of the machine table top above the machine motor
can be adjusted. This enables your Evolution Table/Mitre Saw
to mimic the rise and fall facility found on many conventional
table saws. The cutting depth of the blade can thereby be
adjusted from 0mm to 50mm.
WARNING:
Only adjust the height of the table with the
machine disconnected from the mains power supply.
To adjust:
•
Loosen the two table pillar wing nuts, one to the front, and
one to the rear underneath the machine table. (Fig. 17)
•
Turn the height adjustment screw (Fig. 18) clockwise or
counter-clockwise until the saw blade protrudes through the
table by the required amount.
•
Tighten the two table pillar wing nuts securely.
Note: The upper blade guard can be rotated backwards to
allow access to the table top so that a machinist ruler can be
used to measure the height of the blade above the table.
To gain access –
•
Pull out the sprung loaded locating pin at the rear of the
upper guard (Fig. 19)
•
Rotate the guard backwards.
WARNING:
Always return the guard to its operational
position with the locating pin fully engaged in its hole in the
riving knife when measuring has been completed.
Never use the machine without the upper guard in its
operational position. Check the operation of the upper guard
after every adjustment.
Return the table to its original (lowest) position when cutting is
completed.
