OPERATION
10. Clearing Jammed Material
•
Turn mitre saw "OFF" by releasing the trigger switch.
•
Allow the blade to come to a complete halt and the cutting
to rise to its upper position if possible.
•
Unplug the mitre saw from the mains supply.
•
Carefully remove any jammed material from the unit.
11. Supporting Long Workpieces
The free end of a long workpiece should be supported at the
same height as the machines rotary table. The operator should
consider using a remote workpiece support stand or enlisting
competent trained help if thought necessary.
TABLE SAW CONFIGURATION
WARNING:
To operate as a table saw certain adjustments/
checks must be carried out to ensure that the machine is
configured correctly. Optimally the table saw is best suited to
the Rip Cutting of sheet material.
•
The cutting head must be in the locked down position with
the locking pin completely engaged in its socket.
•
The rotary table should be set at 0 º and locked in position
with the mitre locking screw.
•
The cutting head should be locked at 0 º bevel with the bevel
locking lever securely tightened.
•
The auxiliary lower blade guard must be fitted.
Note: Ensure that these checks/adjustments are carried out with
the machine disconnected from the mains supply.

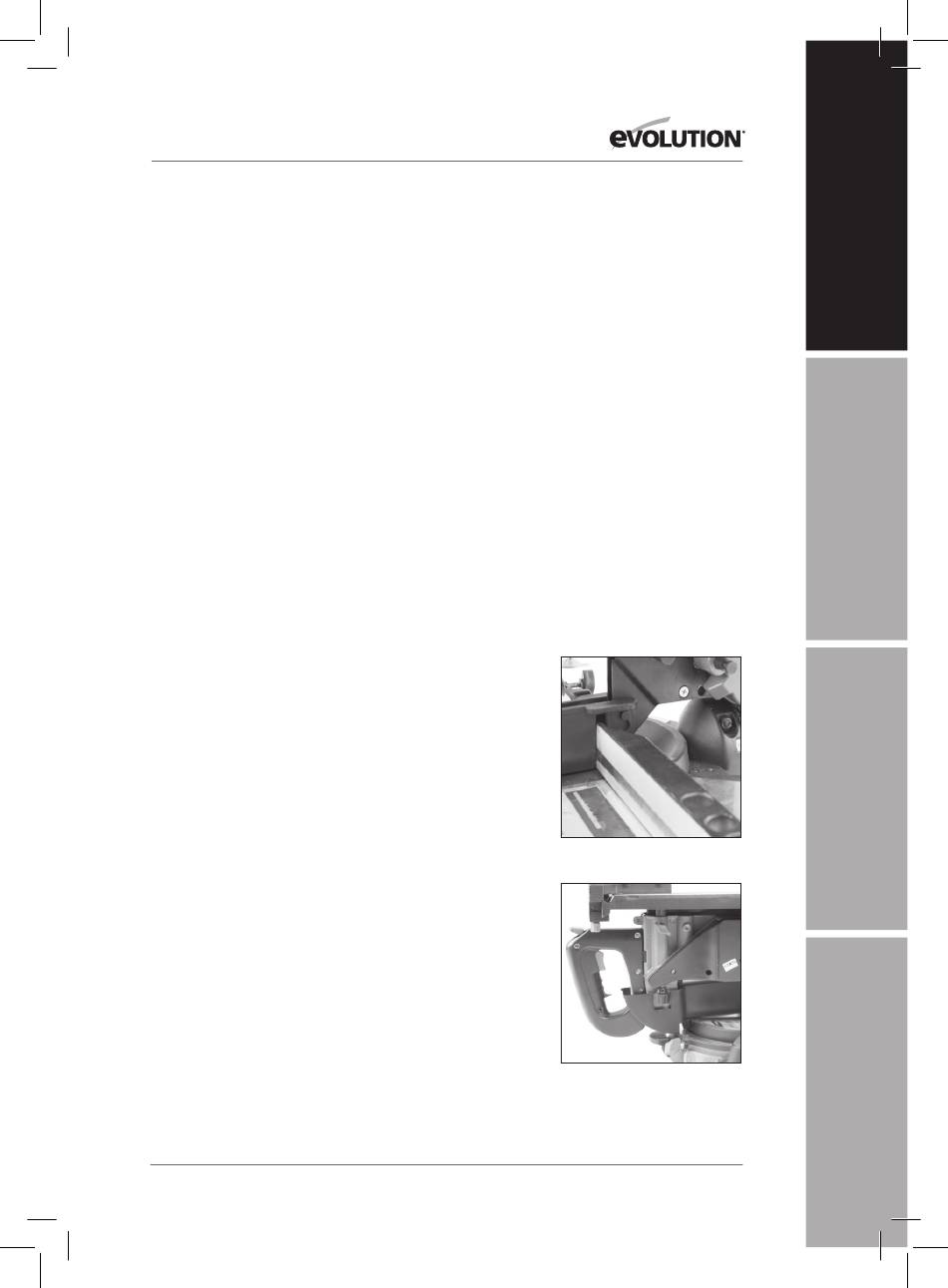

1. Fitting the Auxiliary Lower Blade Guard
•
Ensure that the cutting head is in its upper position.
•
Position the lower auxiliary guard over the rotary table insert
and slide it to the rear. Narrow end of the guard to the rear,
open wide end to the front.
•
Ensure that the RH and LH sides of the guard engage with
their respective locating pins on the lower rear fixed blade
guard, and that the cut out slot on the RH side of the auxiliary
guard straddles the machine fence. (Fig. 15)
•
When satisfied that the lower auxiliary guard is correctly
positioned, lower the cutting head to its lowest position and
securely lock in place with the locking pin.
•
Check the integrity of the installation, and that the machine
handle has trapped the auxiliary guard in place. (Fig. 16)
WARNING:
The Auxiliary Blade Guard must be fitted when
this machine is used as a Table Saw. Do not operate this machine
if the Auxiliary Blade Guard is damaged or missing.
FIG. 15
FIG. 16
