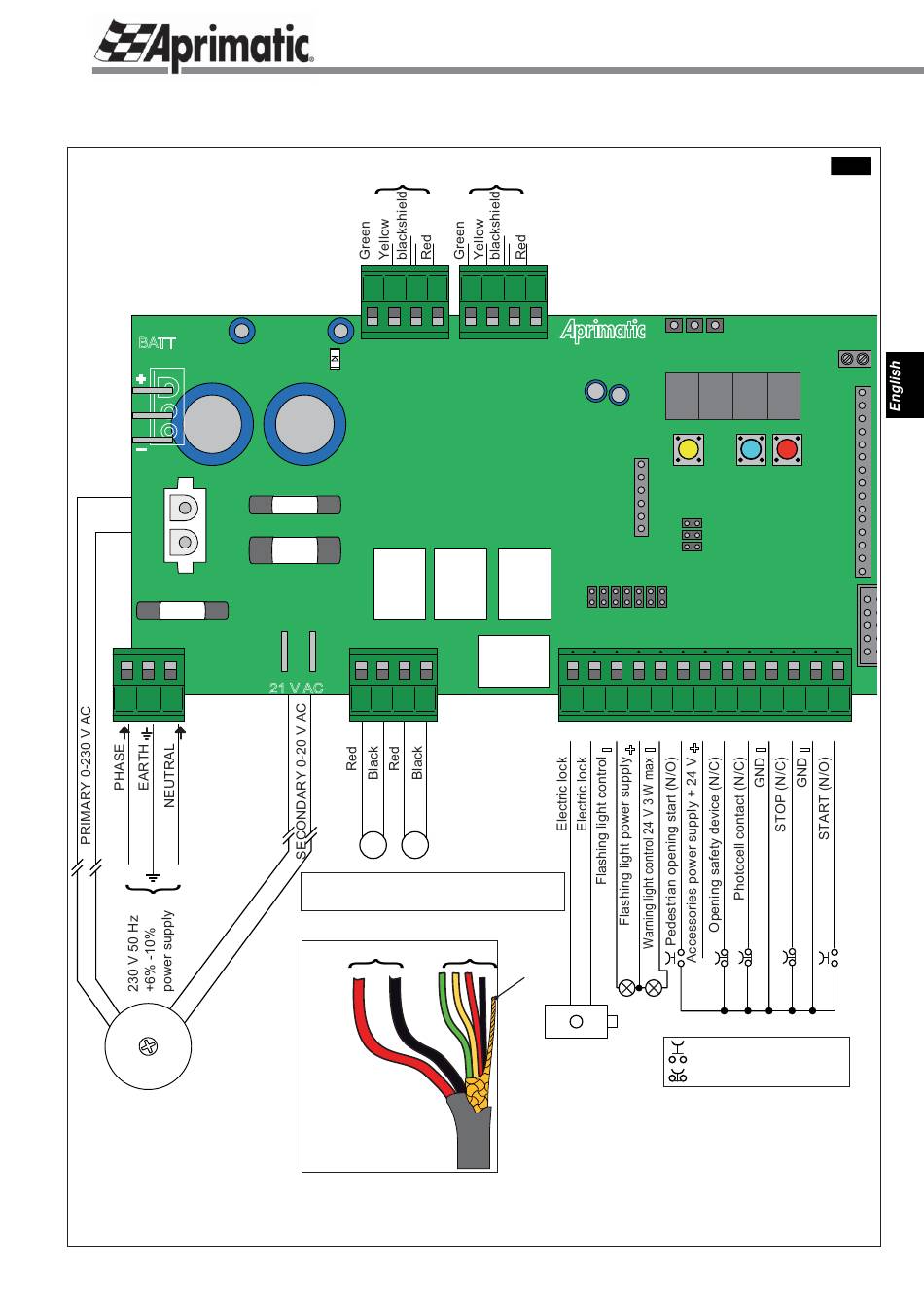

2.4.1 UNIT BLOCK DIAGRAM (Fig.2)
BATT
J7
+
FS3
FS5
FS4
-
J6
F1
M1
L N
PH N
TRANSFORMER
Encoder M1
4 3 2
DL1
J10
F2
F3
FS1 FS2
J3
21 V AC
M1 M2
M1 M2
M1 = motor 1 wing or single wing opening
st
M2 = motor 2 wing opening
nd
J3
Motor/unit connection:
6-wire shielded cable
Encoder M2
1 4 3 2 1
J9
J12
J1
J4
1 2
-
J9/10
shield
12 V AC 15 W max.
CAUTION! The N/C contacts (terminals 8, 9,
11) must have a jumper inserted between the
contact and earth (terminal 10 or 12) when
they are not used. If you do not do this the
automation WILL NOT work.
- 23 -
Electrical connections
CN2
DS1 DS2 DS3 DS4
8 8 8 8
YELLOW BLUE RED
(ESC) (scroll) (OK)
3 4 5 6 7 8 9 10 11 12
- + -
+
= N/O contact
= N/C contact
Fig. 2
CN3
JRX
CN1
