CHECKING DISPLAY CONNECTIONS

The status of some accessories and functions can be
displayed at all times.
When you press the YELLOW key, the displays are
switched ON. The lit sections show the connections and
the items enabled (see fi g.10).
Briefly press the YELLOW button to switch OFF the
display.
Yellow
display 1: GATE STATUS
C
= CLOSED
b
= during OPENING
A
= OPEN
d
= during CLOSING
E
= LOCKED
O
= OBSTACLE DETECTION
display 2: INPUT (light ON=contact closed)
8
2 = CLOSING PHOTOCELL
2
4 = PEDESTRIAN START
5 = SAFETY during OPENING
7
6 = START
7 = STOP
6 4
5
display 3: LIMIT SWITCH (light ON=limit switch engaged)
8
1 = FIRST WING OPENING LIMIT SWITCH
3 = SECOND WING OPENING LIMIT SWITCH
1 3
4 = SECOND WING CLOSING LIMIT SWITCH
6 = FIRST WING CLOSING LIMIT SWITCH
6 4
display 4: OUTPUT (light ON=output enabled)
8
1 = FLASHING LIGHT
2
2 = ELECTRIC LOCK
1 3
3 = WARNING LIGHT
4 = SECOND WING MOTOR
6 = FIRST WING MOTOR
6 4
- 34 -
DISPLAYS

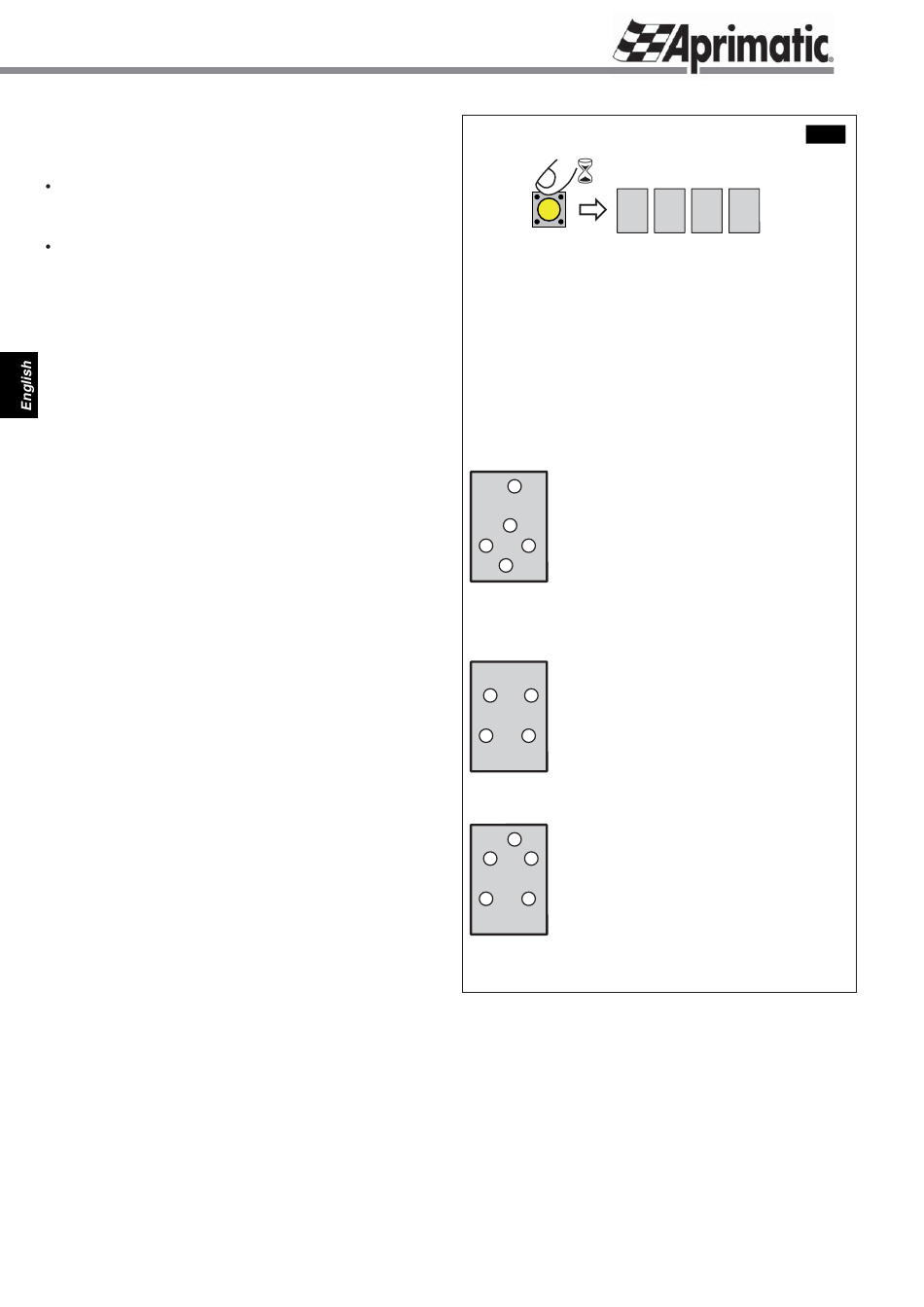

1 2 3 4
8 8 8 8
Fig. 10
