1.1 PRODUCT DESCRIPTION - TECHNICAL
SPECIFICATIONS
R1-24 - electronic unit fi tted with a microprocessor to drive
1 or 2 motors with encoder. The motors are powered at 24
V DC and up to a maximum overall power of 250 Watt.
The unit acquires the data of the installed system by
performing a self-teach cycle to set the functioning
parameters.
The programming of functioning parameters can be
modified (digital adjustments) to ensure optimum
automation performance in accordance with the type of
equipment controlled.
The R1-24 can be supplied with a radio receiver already
Main features
Self-teach function for number of wings, stroke span, motor polarity, electric lock installation
●
Electronic speed adjustment - Current limits automatically adjusted in accordance with temperature and friction
●
variations
Obstacle recognition (reaction based on settings made e.g. block wing, invert drive, etc.)
●
Slowing on approach to opening/closing stop
●
Pedestrian opening available (on one wing)
●
Manned functioning available (by setting the relevant parameter) with safety device overridden
●
Step-by-step functioning
●
Non-reversible motors available when wings closed (enable short circuit parameter)
●
Emergency procedure when mains power restored
●
Programming data saved in fl ash memory
●
Data saved in EEPROM memory (gate status, spatial and angular position off wings) in the event of mains power
●
or battery failure
Remote control devices can be installed e.g.: PL-ECO receiver, Unico Receiver, DEC/A (tag decoder and keypad),
●
GSM
GSM cycle counter output (500 ms pulse)
●
Functioning cycle counter for routine maintenance
●
Technical specifi cations
Power supply voltage for accessories
Frequency
Motor power supply
Accessory power supply
Power consumption (no load)
Power consumption (Max.)
Operating temperature
Storage temperature
Relative humidity
Protection class
Primary transformer protection fuse (F1)
External accessories protection fuse (24 V DC) (F2)
Electronic circuit protection fuse (F3)
Toroidal power transformer
programmed on the unit.
- 21 -

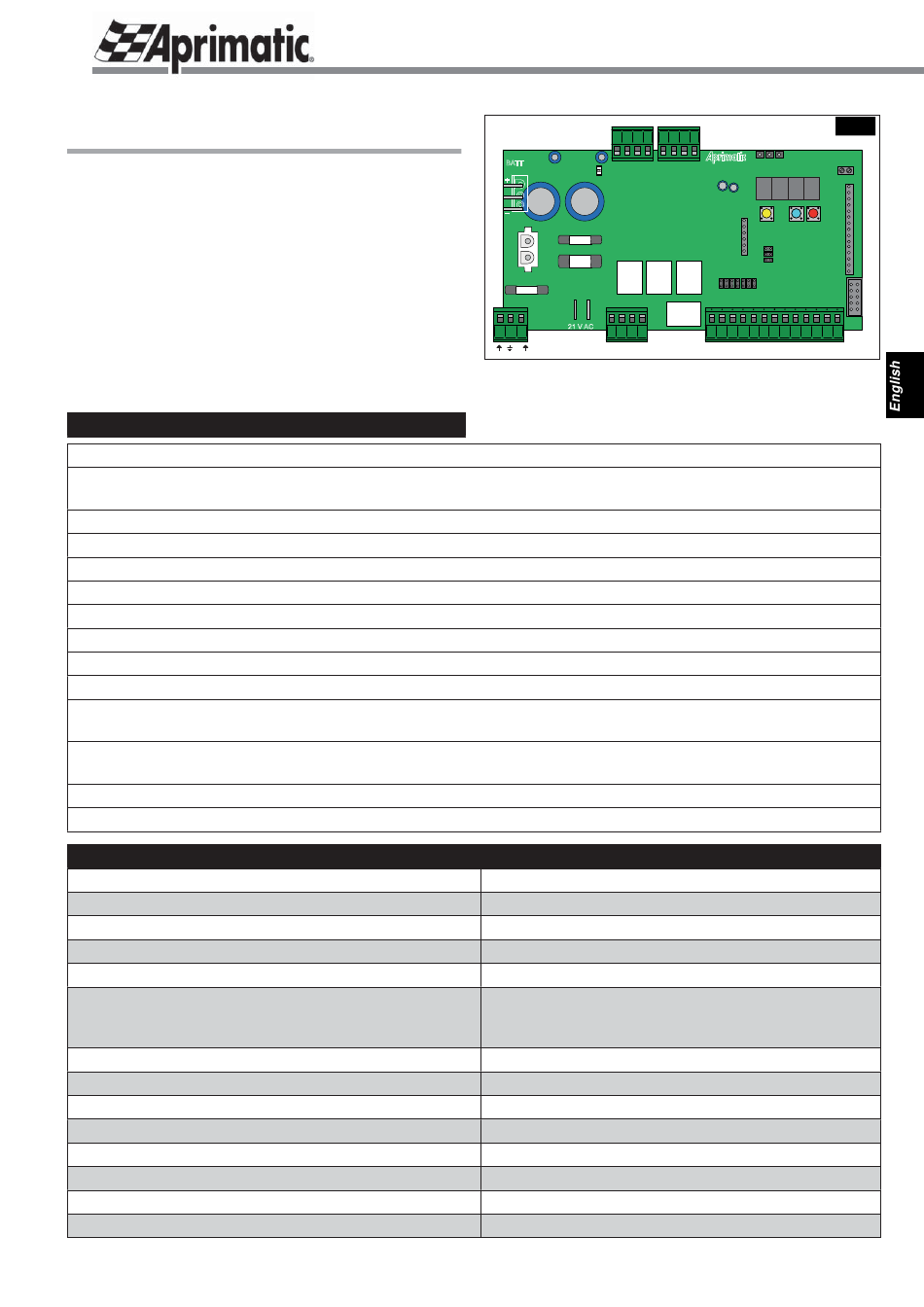

R1-24 card
BATT
4 3 2 1 4
DL1
J7
J10 J9
+
FS3
FS5
FS4
-
F2
J6
F3
F1
FS1 FS2
M1 J3
21 V AC
M1 M2
L N
230 V AC (±10 %)
50 Hz
24 V DC
800 mA
3 W
250 W
(with 2 motors and accessories connected up and
operating)
-20°C +70°C
-20°C +85°C
<95% non condensing
IP44 (only with IP44 housing)
3.15 A fast blow
1 A fast blow
8 A fast blow
250 V AC
Features of the unit
Fig. 1
CN2
3 2 1 CN3
DS1 DS2 DS3 DS4
8 8 8 8
JRX
J12
YELLOW BLUE RED
(ESC) (scroll) (OK)
J1
CN1
J4
1 2 3 4 5 6 7 8 9 10 11 12 13
