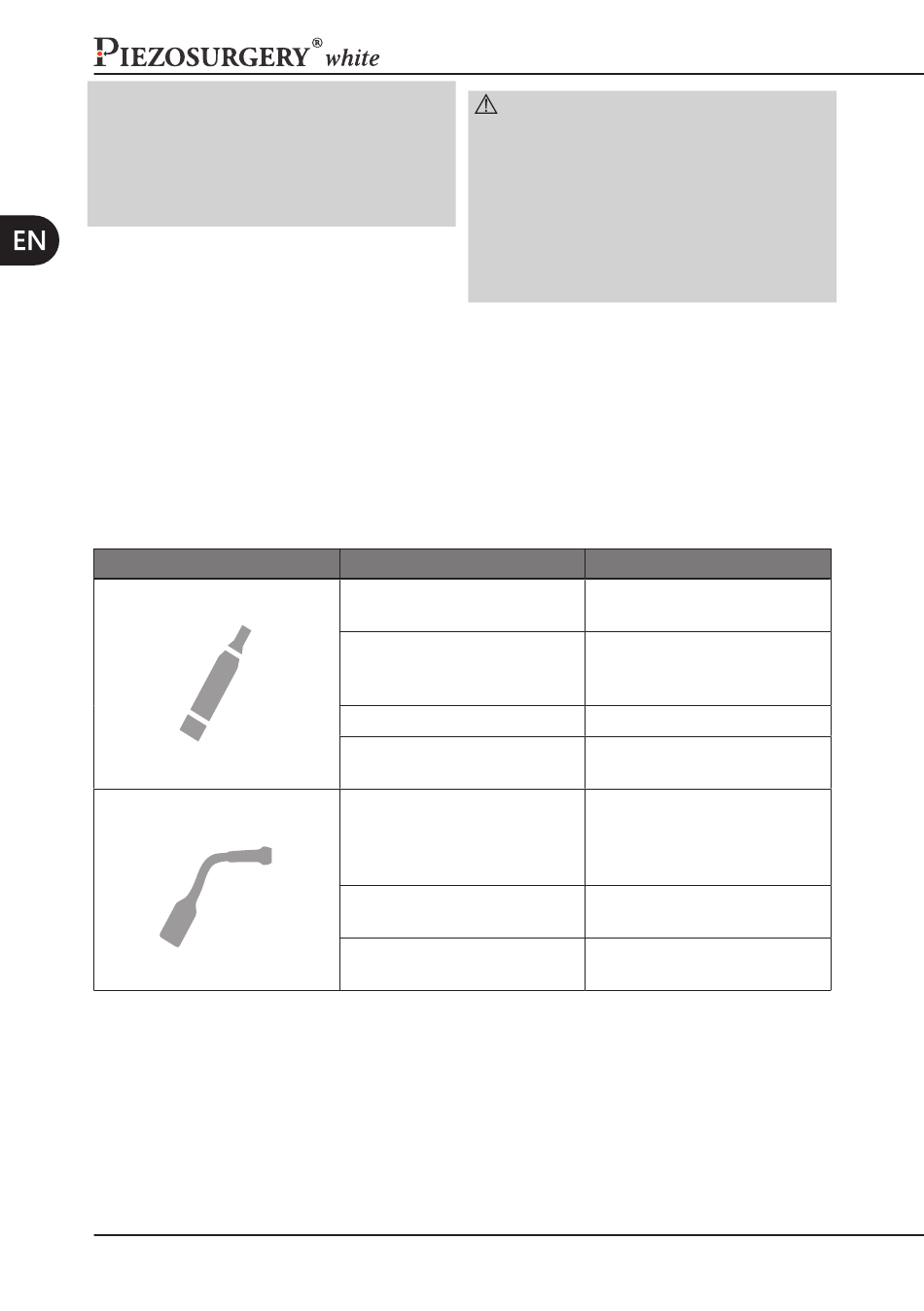

TROUBLESHOOTING

9.1 Diagnostic System and Symbols on Keyboard
PIEZOSURGERY® white is equipped with a diagnostic circuit that allows to detect operating
abnormalities and to view their type on the keyboard via their relative symbol. By using the
following chart, the user is guided toward the identification and possible solution of the
malfunction detected.
Symbol on the Keyboard
36
WARNING: Portable RF communication
equipment (including peripheral devices
as antenna cables and external antennas)
must not be used closer than 30 cm
(12 inches) to any part of the device
PIEZOSURGERY® white, including the cables
specified by the manufacturer. Otherwise,
there may be a performance degradation of
these devices.
Possible Cause
Handpiece electric contacts/
lead wet.
PIEZOSURGERY® white
handpiece not connected to
the device.
Faulty Handpiece.
Malfunction of the tuning
circuit.
Insert not properly tightened
on the handpiece.
Insert broken, worn or
deformed.
Handpiece electric contacts/
lead wet.
Solution
Thoroughly dry the contacts
with compressed air.
Connect the handpiece.
Replace the handpiece.
Contact an Authorized
MECTRON Service Centre.
Unscrew the insert and screw
it back correctly using the
torque wrench (see Chapter
5.4 on page 24 ).
Replace the insert.
Thoroughly dry the contacts
with compressed air.
