8 LUBRICATION AND MAINTENANCE
LUBRICATION
8.1 ENGINE: First 50 working hours and every
200 working hours.
Change Engine Oil.
(a) Warm up the engine first and then shut it off.
Remove oil drain plug from the bottom of the
crankcase and wipe it off.
(b) Replace the drain plug and fill engine with 9.5
litres of oil.

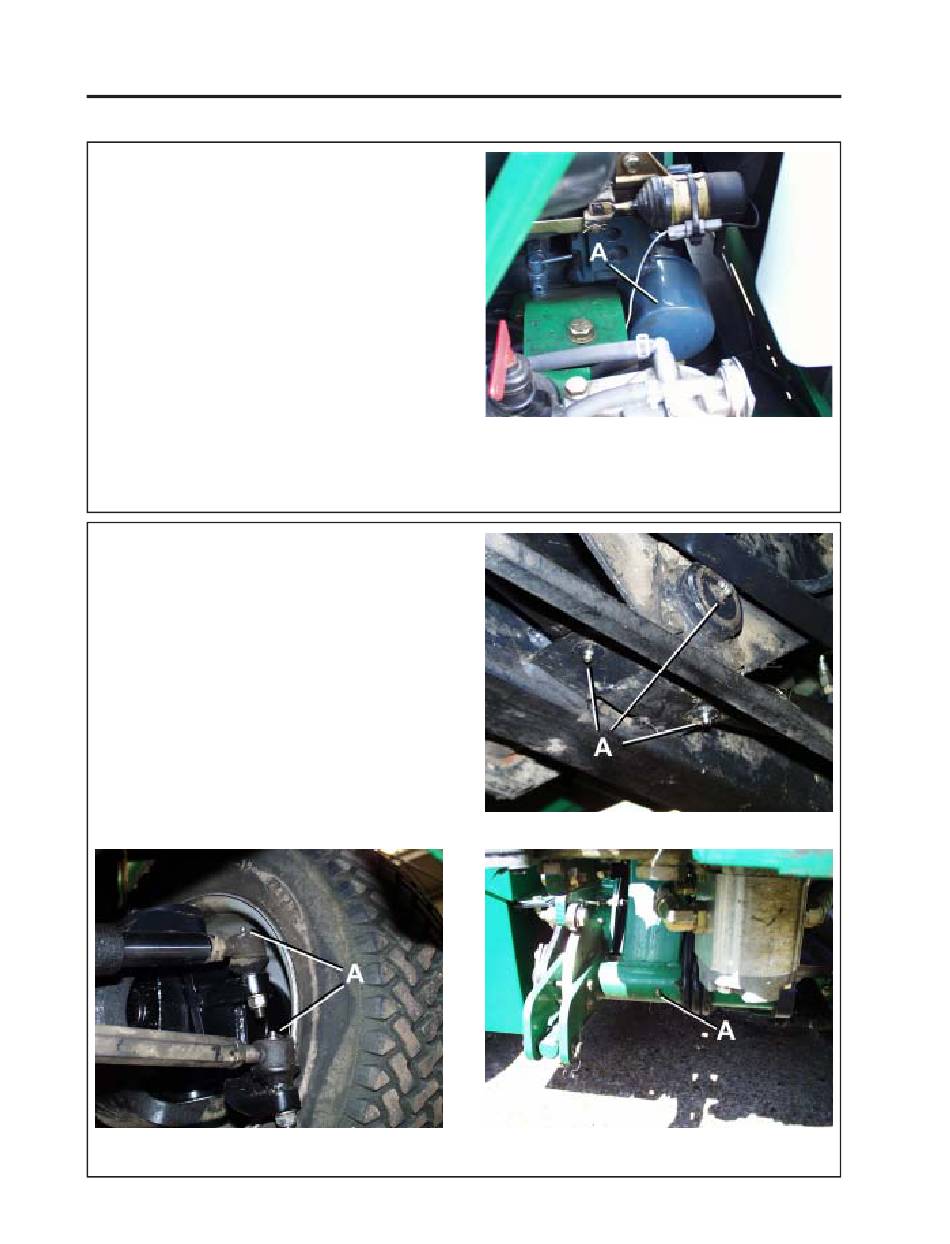

Change Engine Oil Filter (A)
(a) Remove single-unit cartridge (A)
(b) Clean area on crankcase.
(c) Apply thin coat of oil to cartridge gasket
before installing.
(d) Tighten filter by hand only.
(e) Check for oil leaks around the cartridge
gasket after engine is started.
8.2 MACHINE: Lubricate the following points.
Weekly or every 40 working hours.
1. Lubricate the following with Shell Darina R2
grease.
(a) Lift arm pivots (A Fig.8.2.3).
(b) Rear Axle centre pivot (A Fig.8.2.1).
(c) Steering rams-inner pivots (A Fig.8.2.2)
(d) Steering ram rod end (A Fig.8.2.2).
(e) Steering Track Rod, Rod End (A Fig.8.2.2).
(f) Bonnet Actuator Ball Joints.
2 . Lubricate the following with oil:
Divertor Valve spools and operating mechanism.
Fig.8.2.2
GB-32
All manuals and user guides at all-guides.com
SAFETY, OPERATORS & MAINTENANCE MANUAL
RANSOMES COMMANDER 3520
Fig.8.2.1
Fig.8.2.3
