Unlatching And Raising The Cutting Head - Evolution RAGE3-S Instructions D'origine

Step 1 & 2
Step 3
Fig. 21
Fig. 22a
Fig. 22b
Fig. 22a + 22b
Fig. 23

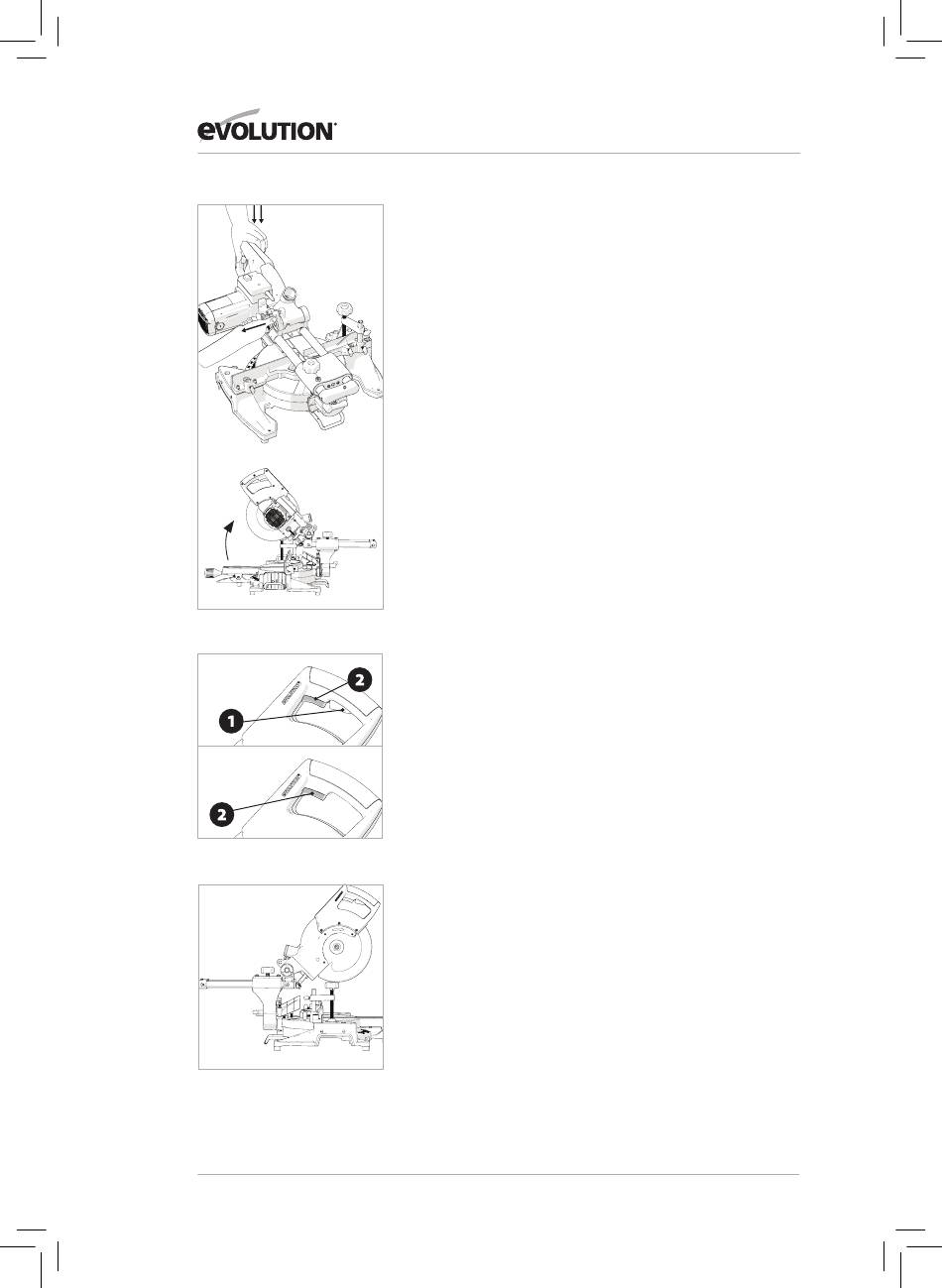

UNLATChiNG AND RAiSiNG ThE CUTTiNG hEAD

(Fig. 21)
WARNiNG: To avoid serious injury, NEVER perform the
unlocking or locking procedure unless the saw is OFF and the
blade stopped.
To Release the Cutting head from the Locked Down position:
• Gently press down on the Handle.
• Pull out the head latching pin and allow the Cutting Head to
rise to its upper position. (Step 1 & 2)
• The Cutting Head will automatically rise to the upper position
once it is released from the locked down position. (Step 3)
• It will automatically lock in the upper position.
if Release is Difficult:
• Gently rock the Cutting Head up and down.
• At the same time twist the Head Latching Pin clockwise and
pull outwards.
Note: We recommend that when the machine is not in use the
Cutting Head is locked in its down position with the latching pin
fully engaged in its socket.
SWiTChiNG ON & OFF (EU MODELS ONLY)
(Fig. 22a)
To start the machine, first press the Blade Guard Release Trigger
(1) and then press the On/Off switch (2) and keep it pressed. To
switch off the machine, release the On/Off switch (2). (Fig. 22a)
Note: For safety reasons, the On/Off switch (2) cannot be locked;
it must remain pressed during the entire operation. (Fig. 22a)
SWiTChiNG ON & OFF (CANADiAN MODELS ONLY)
(Fig. 22a)
To start the machine, first press the lock-off button for the On/Off
switch (1) and then press the On/Off switch (2) and keep it pressed.
To switch off the machine, release the On/Off switch (2). (Fig. 22a)
Note: For safety reasons, the On/Off switch (2) cannot be locked; it
must remain pressed during the entire operation. (Fig. 22a)
SWiTChiNG ON & OFF (USA MODELS ONLY)
(Fig. 22b)
To start the machine, press the On/Off switch (2) and keep it pressed.
To switch off the machine, release the On/Off switch (2). (Fig. 22b)
Note: For safety reasons, the On/Off switch (2) cannot be locked; it
must remain pressed during the entire operation. (Fig. 22b)
