Evolution RAGE3-S Instructions D'origine page 33

www.evolutionpowertools.com
2) 16mm (5/8") ARBOR BLADES
WARNiNG: Only carry out this operation with the machine
disconnected from the mains supply.
WARNiNG: You must ensure the silver dual-sided inner flange
side marked 16mm (5/8") visible to you is correct
for the blade arbor you are fitting. The silver dual-sided inner
flange is marked with the relevant arbor size each side. Do not
fit a 25.4mm (1") arbor blade to the 16mm (5/8") marked silver
dual-sided inner-flange side.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.

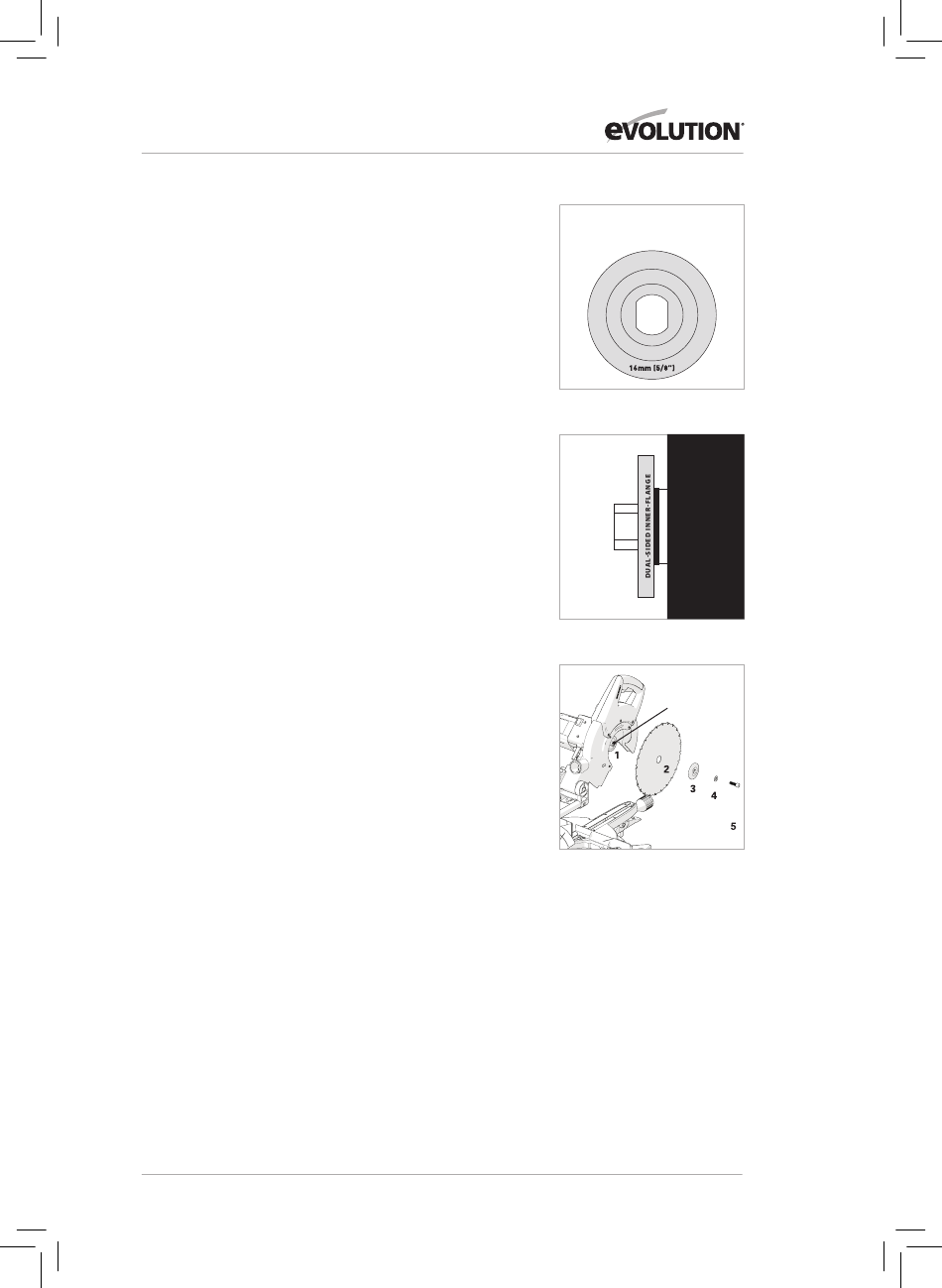

• By 'reversing' this silver dual-sided inner-flange, you can also
safely fit saw blades with a 16mm (5/8") arbor as available in
the USA market (Fig. 40e).
• When 'reversed' , the 25.4mm (1") ring elevation will be
pointing 'inwards' to the motor. This now provides a 16mm
(5/8") arbor on the adjacent side (Fig. 40f).
• Install the new blade (Fig. 40g). Make sure the rotation
arrow on the blade matches the clockwise rotation arrow
on the upper guard.
Note: The blade teeth should always point downward
at the front of the saw.
• Install the black outer-blade flange, washer and arbor screw.
• Lock the arbor and tighten the arbor screw using moderate
force, but do not overtighten.
• Ensure the Hex Key is removed and the arbor lock has
released before operating.
• Ensure the blade guard is fully functional before using
the machine.
16mm (5/8") ARBOR
(REVERSE SIDE OF FIG 40B)
Fig. 40e
16mm (5/8")
ARBOR SIDE

BLADE FiTS
ThiS SiDE
Fig. 40f
Fig. 40g
33
MOTOR
hOUSiNG
16mm (5/8")
DUAL-SiDED
iNNER-FLANGE
