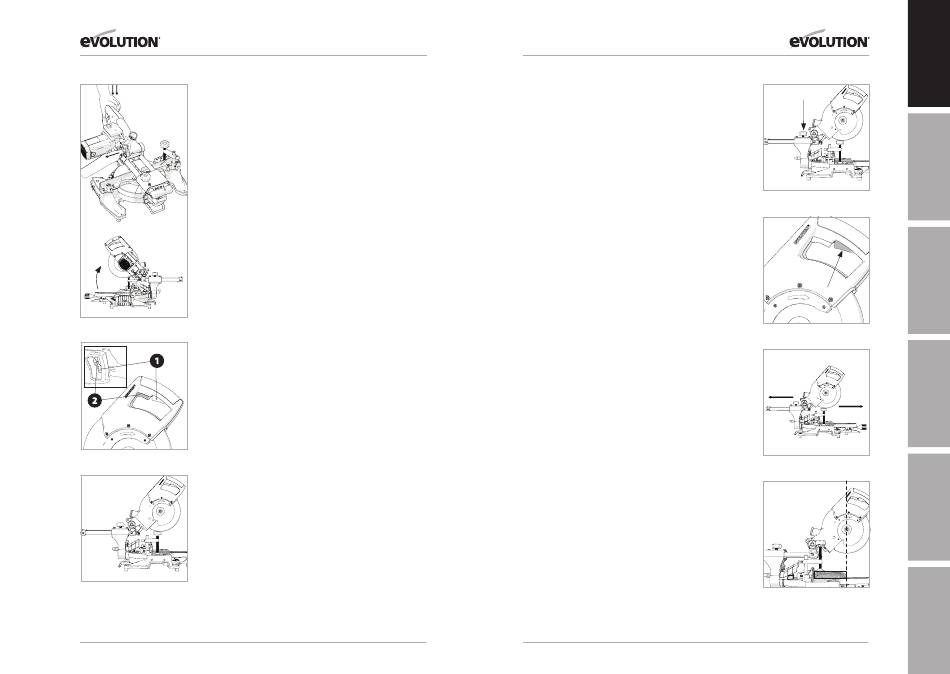

UNLATChiNG AND RAiSiNG ThE CUTTiNG hEAD

Step 1 & 2
(Fig. 21)
WARNiNG:
To avoid serious injury, NEVER perform the
unlocing or locking procedure unless the saw is OFF and the
blade stopped.
To Release the Cutting head from the Locked Down position:
• Gently press down on the Cutting Handle.
• Pull out the head latching pin and allow the Cutting Head to
rise to its upper position. (Step 1 & 2)
• The Cutting Head will automatically rise to the upper position
once it is released from the locked down position. (Step 3)
• It will automatically lock in the upper position.
Step 3
if Release is Difficult:
• Gently rock the Cutting Head up and down.
• At the same time twist the Head Latching Pin clockwise and
pull outwards.
Note: We recommend that when the machine is not in use the
Cutting Head is locked in its down position with the latching pin
Fig. 21
fully engaged in its socket.
SWiTChiNG ON & OFF (USA MODEL ONLY)
To start the machine, first push the lock-off button
for the On/Off switch (1) and then press the On/Off switch
(2) and keep it pressed. To switch off the machine,
release the On/Off switch (2). (Fig. 22)
Note: For safety reasons, the On/Off switch (2)
cannot be locked; it must remain pressed during
Fig. 22 the entire operation. (Fig. 22)

ChOp CUTTiNG

This type of cut is used mainly for cutting small or narrow
section material. The Cutting Head is gently pushed down to cut
through the workpiece.
The Sliding Carriage should be locked
in its rearmost position. (Fig. 23)
Fig. 23
26
www.evolutionpowertools.com
(Fig. 22)
www.evolutionpowertools.com
• Slide the Cutting Head to the rear as far as it will go.
• Tighten the slide lock screw. (Fig. 24)
• Place the workpiece on the table and against the fence and
secure with clamp(s) as appropriate.
• Grasp the saw handle.
• Turn the motor on and allow the saw blade to reach full speed.
• Remember to press the lock-off button first before the
On/Off switch. (Fig. 25)
• Lower the Cutting Handle downwards
and cut through the workpiece.
• Allow the speed of the blade to do the work, there is no need
to apply undue pressure to the Cutting Handle.
• When the cut has been completed,
release the ON/OFF trigger switch.
• Allow the blade to come to a complete stop.
• Allow the Cutting Head to rise to its upper position, with
the lower blade guard completely covering the blade teeth,
and the Cutting Head locked in the upper position, before
releasing the Cutting Handle.
• Remove the workpiece
SLiDE CUTTiNG
This saw is equipped with a Sliding Carriage system.
Loosening the slide lock screw will release the slide and allow
the Cutting Head to move forwards and backwards. (Fig. 26)
The saw blade is lowered into the workpiece and then pushed
to the rear of the machine to complete a cut. This type of cut
can be used for cutting wide pieces.
• Position the workpiece on the table and against the fence
and secure with clamp(s) as appropriate.
• Loosen the slide lock screw.
• Grasp the Cutting Handle and pull the Cutting Head forward
until the arbor (centre of saw blade) is over the front edge of
the workpiece. (Fig. 27)
• Operate the ON/OFF motor trigger switch and allow the saw
blade to reach full speed.
• Push the Cutting Handle all the way down and cut through
the leading edge of the workpiece.
• Gently push the Cutting Handle rearwards towards the fence
completing the cut.
