BEVEL CUTTiNG - TiLTiNG ThE CUTTiNG hEAD

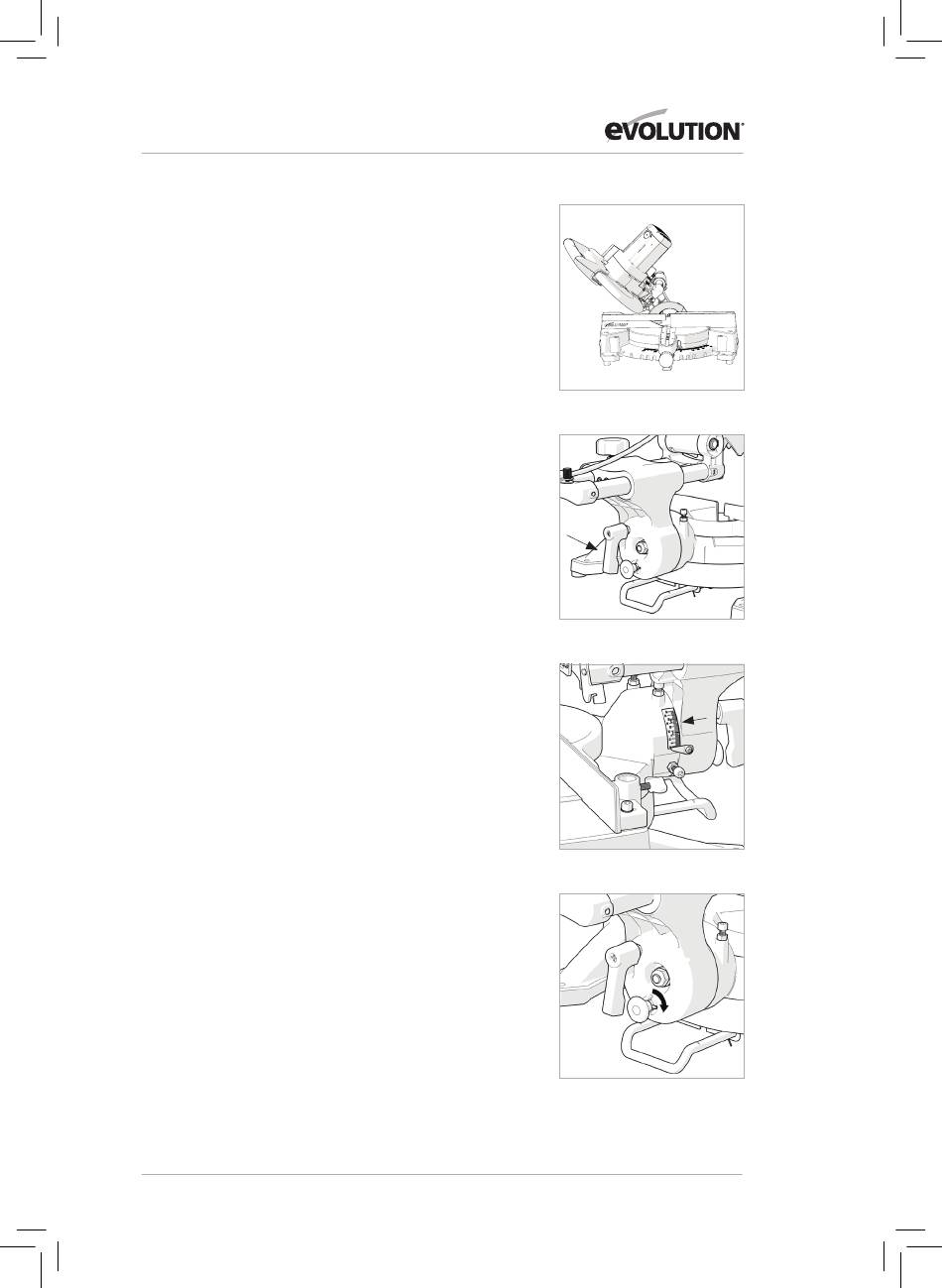

A bevel cut (Fig. 32) is made with the rotary table set at 0
Note: It may be necessary to adjust the upper section of the
Fence to provide clearance for the moving Cutting Head.
The Cutting Head can be tilted from the normal 0
position) to a maximum angle of 45
the left hand side only. Bevel cutting is possible with or without
the sliding carriage system being deployed.
To tilt the Cutting head to the left:
• Loosen the bevel lock lever. (Fig. 33)
• Tilt the Cutting Head to the required angle. A protractor scale
is provided as an aid to setting. (Fig 34)
• Tighten the bevel lock lever when the desired angle has
been selected.
Note: The bevel lock lever is sprung loaded and this enables it
to be repositioned on its operating screw. Repositioning may be
necessary to avoid interference with other parts of the machine
when certain mitre angles are selected.
To reposition:
• Lift up the lever and turn to a convenient position
• Release the lever
When cutting is completed:
• Release the ON/OFF trigger switch, but keep your hands in
position and allow the blade to completely stop.
• Allow the Cutting Head has to rise to its upper position,
with the retractable lower blade guard completely deployed
before removing yours hand(s).
• Return the Cutting Head to the perpendicular position.
• Tighten the bevel lock lever.
CROWN MOULDiNG
Deploy the Crown Moulding pin:
• Pull the Pin out slightly.
• Turn the Pin through 1/4 of a turn (Fig. 35)
• Allow the Pin to deploy to its inner (engaged) position.
Tilt the Cutting Head to the 33.9
tighten the Bevel Locking handle.
mitre.
0
(perpendicular
0
from the perpendicular to
0
Crown Moulding position and
0
29
Fig. 32
Fig. 33
Fig. 34
Fig. 35
