Depth Stop - Evolution RAGE3-S Instructions D'origine

Fig. 9
To use the laser guide for an unknown angle:
• Mark the position of the cut to be made on the workpiece
using a pencil etc.
• Place the workpiece on the rotary table and against the fence.
• Adjust the mitre saw to give the approximate angle of cut. Do
not tighten the mitre locking handle at this stage.
• Slowly slide the workpiece backwards and forwards along
the fence, whilst at the same time slowly adjusting the angle
of the rotary table.
• Stop when the projected laser line and pencil line on the
workpiece match exactly.
• Tighten the mitre locking handle to lock the rotary table in place.
• Secure the workpiece with a hold down clamp.
• Recheck the alignment.
• When satisfied that alignment is accurate proceed to make
the cut.
The Laser Lens cap (if fitted)
If fitted the laser lens cap is a simple push fit onto the front of
the laser unit. If it becomes damaged or opaque for any reason
it can be replaced. Carefully pull the lens from the laser unit and
replace with a new lens.

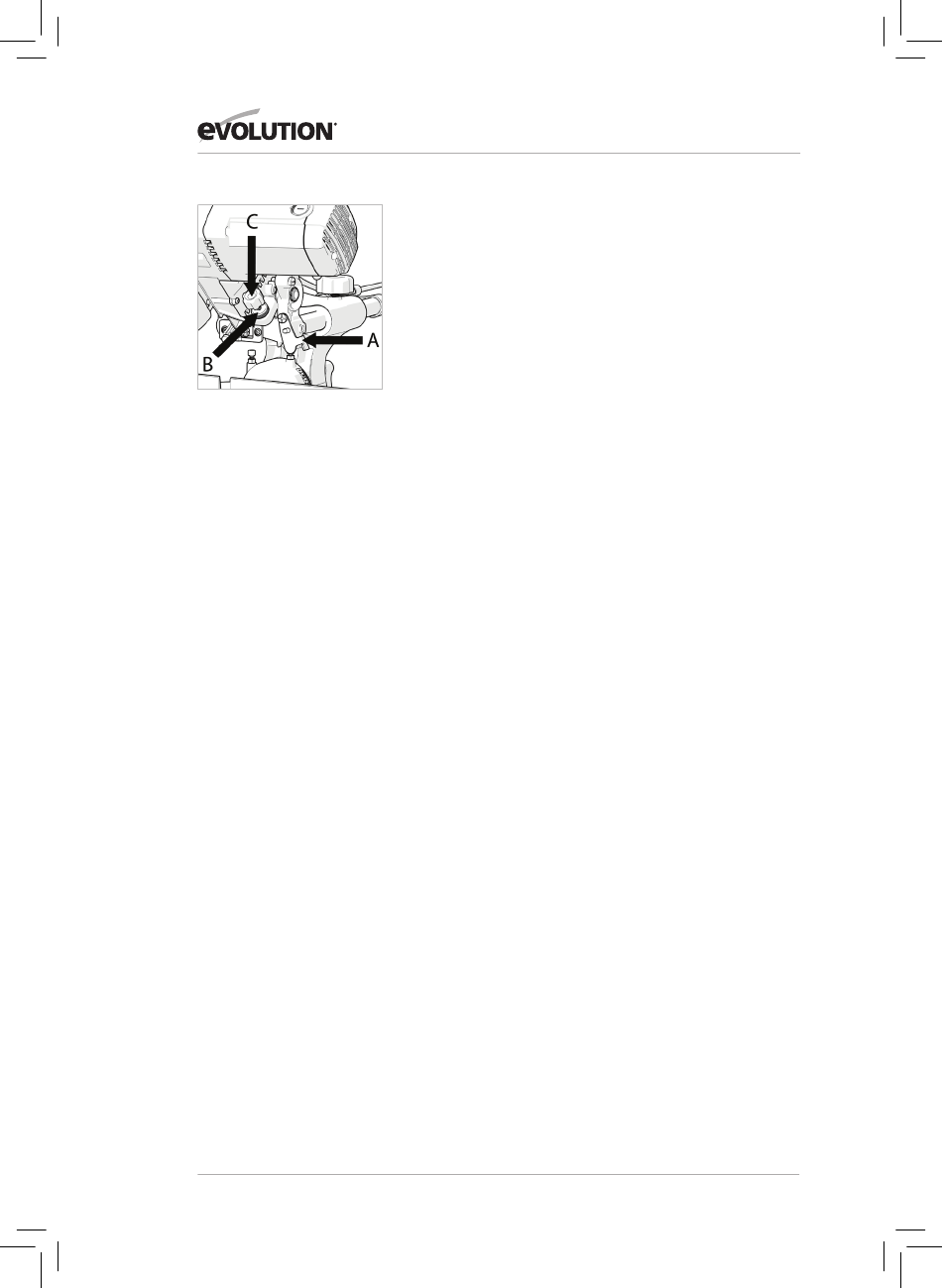

DEpTh STOp

(FiG. 9)
Use of the depth stop allows the operator to cut slots in a workpiece.
The downward travel of the Cutting Head can be limited so that
the saw blade does not completely cut through the workpiece.
Note: When using the Depth Stop it is advisable that the depth
of cut is checked using a scrap piece of timber to ensure that
the slot cut is correctly.
By making a cut in the workpiece, and then repeating the cut
but with the workpiece slightly repositioned to the left or right,
it is possible to perform trenching cuts.
To use the depth stop:
• Deploy the depth stop ' stop plate' (a) by pushing it fully to the left.
• Loosen the locking knurled nut. (b)
• Adjust the thumb - screw (c) to limit the saw heads travel to
the required depth.
• Once set to the desired depth, tighten the wing nut (a)
against the retaining bracket to lock the depth stop and
ensure that there is no movement.
• When cutting is complete re-adjust the depth stop so that the
Cutting Head can be locked in the down position by the head
latching pin.
