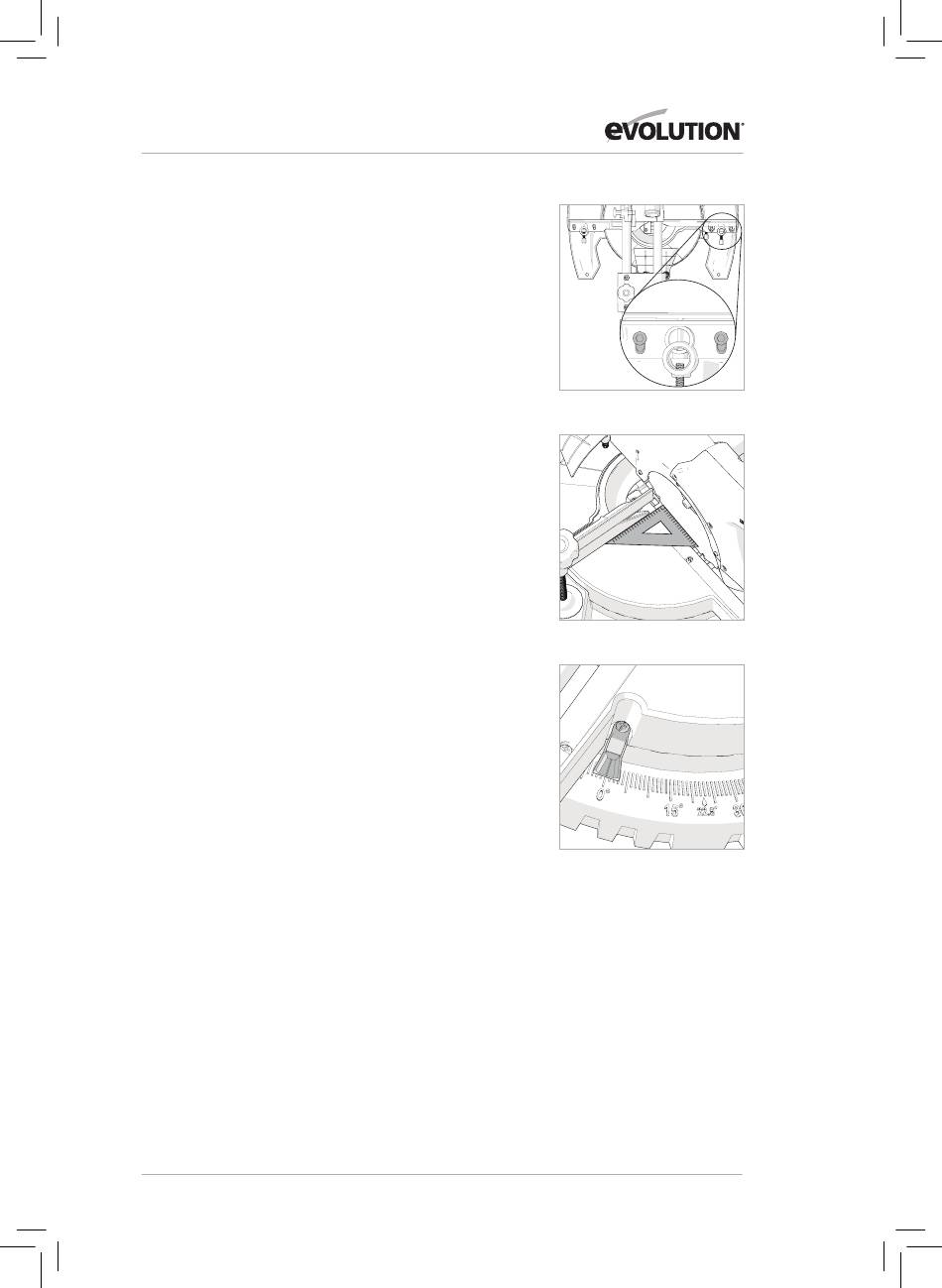

FENCE ALiGNMENT

The fence must be aligned at 90
blade The rotary table must be set at '0
The Fence is fastened to the table with two socket head Hex screws
positioned at either side of the fence in elongated slots. (Fig. 18)
• Ensure that the Cutting Head is in the locked down position
with the latching pin fully engaged in its socket
• Place a Set Square on the table with one short edge against
the Fence and the other short edge against the Blade
(avoiding the TCT tips). (Fig. 19)
• If adjustment is necessary, loosen the four Fence adjustment
screws using a Hex Key
• Re-position the Fence in its elongated slots until alignment
is achieved.
• Securely tighten the socket head Hex screws.
Mitre angle pointer adjustment
Note: There are dual miter angle scales cast into the front of
the machines base. A small pointer attached to the rotary table
indicates the angle selected.
If necessary the pointer can be repositioned by loosening
its fastening screw using a #2 Phillips screwdriver. Adjust as
necessary, and then securely tighten the fixing screw. (Fig. 20)
(8.5)

pREpARiNG TO MAKE A CUT

DO NOT OVER-REACh
Keep good footing and balance. Stand to one side so that your
face and body are out of line of a possible kickback.
Freehand cutting is a major cause of accidents and MUST not
be attempted.
• Ensure that the workpiece is always firmly resting against the
fence, and where practical is clamped with the Hold Down Clamp to the table.
• The saw table should be clean and free from any sawdust etc. before the workpiece is clamped
into position.
• Ensure that the 'cut-off' material is free to move sideways away from the blade when the cut is
completed. Ensure that the 'cut-off' piece cannot become 'jammed' in any other part of the machine.
• Do not use this saw to cut small pieces. If the workpiece being cut would cause your hand or
fingers to be within 150mm of the saw blade, the workpiece is too small.
(square) to a correctly installed
0
' miter angle.
0
25
Fig. 18
Fig. 19
Fig. 20
