Note: In many circumstances the depth stop can be left at the
selected setting if desired. When the depth stop 'stop plate' is re-
turned to the 'normal' position the depth stop screw will pass by
the 'stop plate' and through a channel in the machines castings.
(7.5)

ThE SLiDiNG UppER FENCE SECTiON

The Left Hand side of the Fence has an adjustable upper section.
Adjustment may be necessary to provide clearance for the
moving Cutting Head when acute bevel or compound angles
are selected.
To adjust the Fence:
• Loosen the thumbscrew. (Fig. 10)
• Slide the upper section of the Fence leftward to the required
position and tighten the thumbscrew.
• Conduct a 'dry run' with the power off to confirm that there
is no interference between moving parts as the Cutting Head
is lowered.
(8.1)

OpERATiNG iNSTRUCTiONS

Caution: The Mitre Saw should be inspected (particularly for
the correct functioning of the safety guards) before each use.
Do not connect the saw to the power supply until a safety
inspection has been carried out.
Ensure that the operator is adequately trained in the use,
adjustment and maintenance of the machine, before
connecting to the power supply and operating the saw.
(8.2)
WARNiNG: To reduce the risk of injury, always unplug the
saw before changing or adjusting any of the machines parts.
Compare the direction of the rotation arrow on the guard to
the direction arrow on the blade. The blade teeth should always
point downward at the front of the saw. Check the tightness of
the arbor screw.

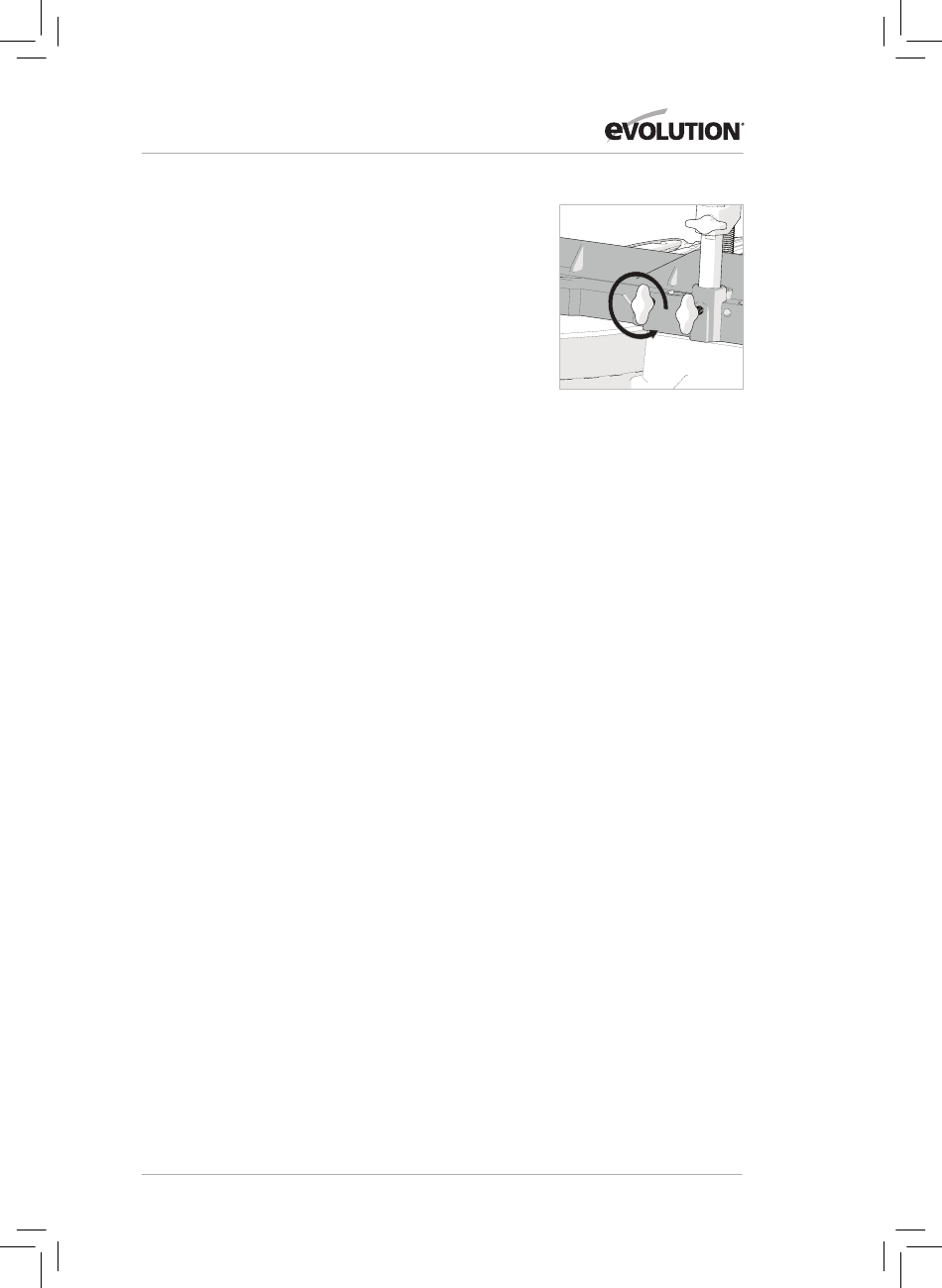

Fig. 10
