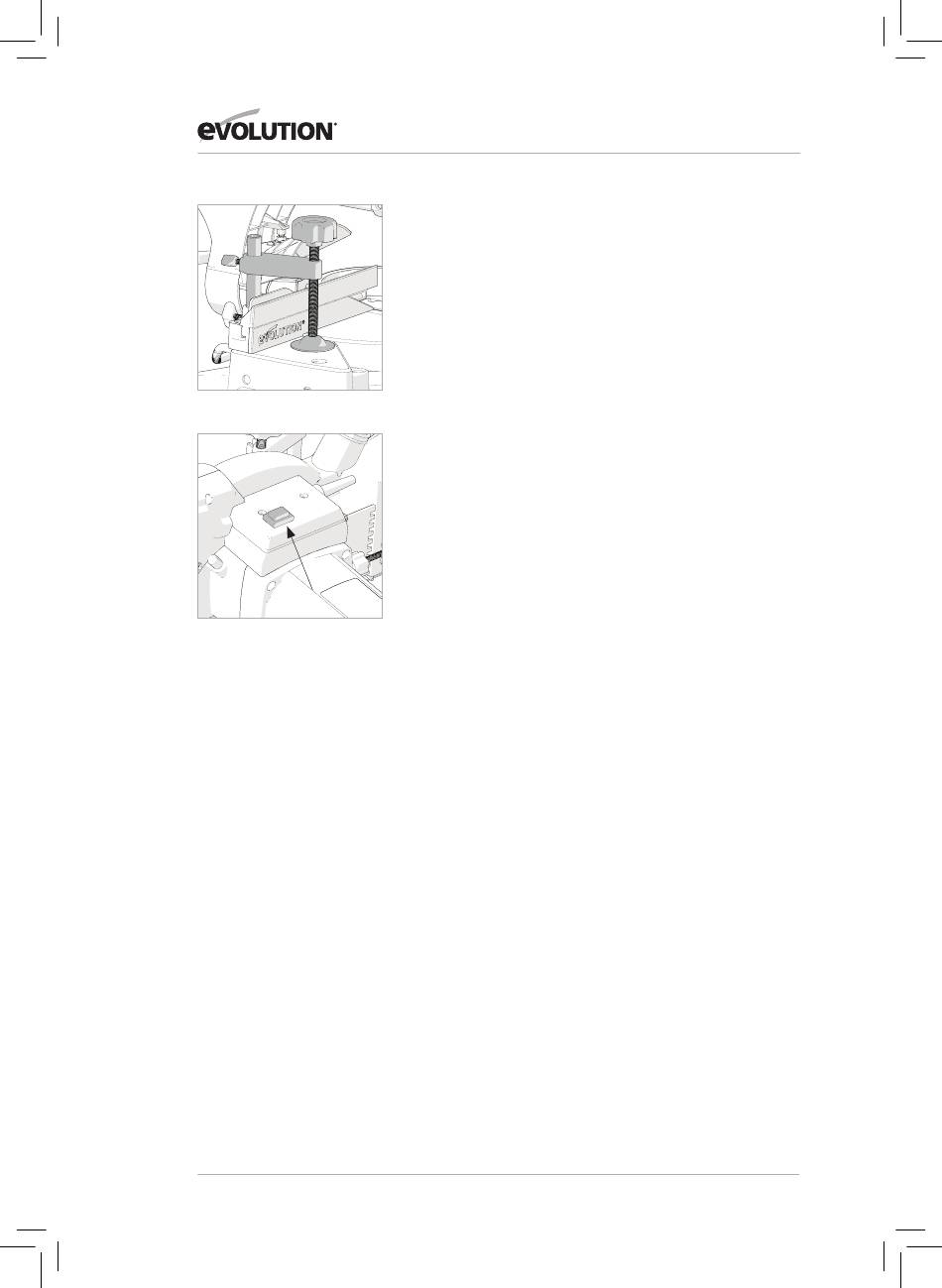

hold down clamp (Fig. 4)
Two sockets (one either side) are incorporated into the rear of
the machines fence. These sockets are for positioning the Hold
Down Clamp.
• Fit the clamp to the retaining socket that best suits the
cutting application, ensuring that it is fully pushed down.
• Tighten the fence thumbscrew to lock the pillar of the clamp
into the fence socket.
• Place the workpiece to be cut onto the saw table, against the
fence and in the desired position.
• Adjust the clamp using the thumbscrews and hand-wheel so
that it securely holds the workpiece to the saw table.
Conduct a 'dry run' with the power disconnected. Ensure that
the Hold Down Clamp does not interfere with the path of the
blade, or with the path of any other part of the Cutting Head as
it is lowered.
The laser
This machine is equipped with a Laser Cutting Guide. This allows
the operator to preview the path of the blade through the
workpiece. The ON/OFF switch for the Laser Guide is positioned
on the top of the motor housing. (Fig 5)
Avoid direct eye contact with the laser beam, and do not use on
material that could reflect the laser beam.
WARNiNG: Do not stare directly at the laser beam. A hazard
may exist if you deliberately stare into the beam. Please observe
all of the following safety rules.
• The laser beam must not be deliberately aimed at personnel
and must be prevented from being directed towards the eyes
of a person.
• Always ensure that the laser beam is used only on workpieces
that have non-reflective surfaces, i.e natural wood or matt
surfaces etc.
• Never exchange the laser module assembly for a different
type or class of laser.
• Repairs to the laser module must only be conducted by
Evolution Power Tools or their authorized agent.
