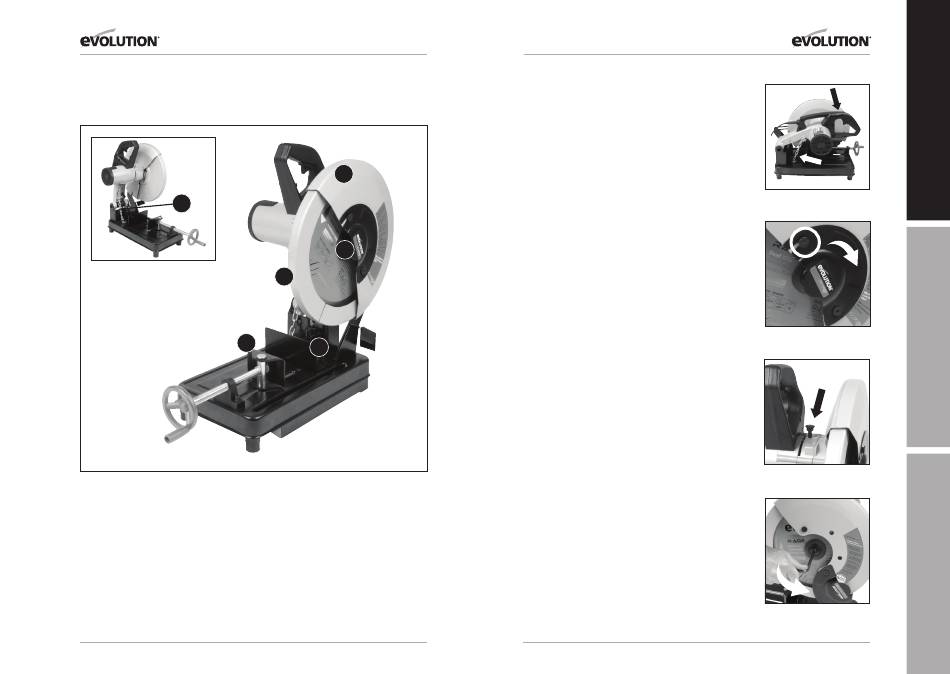

MACHINE OVERVIEW

A parts diagram can be downloaded from www.evolutionpowertools.com.
6
2
1. Lower Blade Guard
2. Front Swiveling Vice Jaw
3. Repositionable Rear Vice Jaw
4. Upper Blade Guard
5. Arbor Guard
6. Hold Down Chain
14
www.evolutionpowertools.com
4
5
1
3
www.evolutionpowertools.com
(5.5) gETTiNg STArTED - PrEPArATiON

rELEASiNg ThE CuTTiNg hEAD

The Cutting Head will automatically rise to the upper
position once it is released from the locked down position.
To Release the Cutting Head from
the Locked Down position: (<5.5)
• Gently press down on the Cutting Handle.
• Unhook the Lock Down Chain from the Lock Down Pin.
(Fig. 1). Allow the Cutting Head to rise to its upper position.
Note: We recommend that when the machine is not in
use the Cutting Head is locked in its down position with
the Lock Down Chain engaged onto the Lock Down Pin.
>5.1) iNSTALLiNg Or rEMOViNg A BLADE
wArNiNg: Only use genuine Evolution blades, or Evolution
approved blades which are designed for this machine.
Ensure that the maximum speed of the blade is compatible
with the machine.
wArNiNg: Only perform this operation with the machine
disconnected from the power supply.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the machines blade. (< 5.1)
(5.6) removing a Blade:
• Ensure that the Cutting Head is in its upper position.
• Loosen the cross head screw securing the arbor guard and
rotate the guard upwards to reveal the machines arbor. (Fig. 2)
• Engage the arbor lock by pressing the arbor lock
button. (Fig. 3).
• Use the supplied Hex Key to loosen the arbor screw. (Fig. 4)
Note: The arbor screw has a Right Hand thread.
Turn clockwise to tighten. Turn counterclockwise to loosen.
