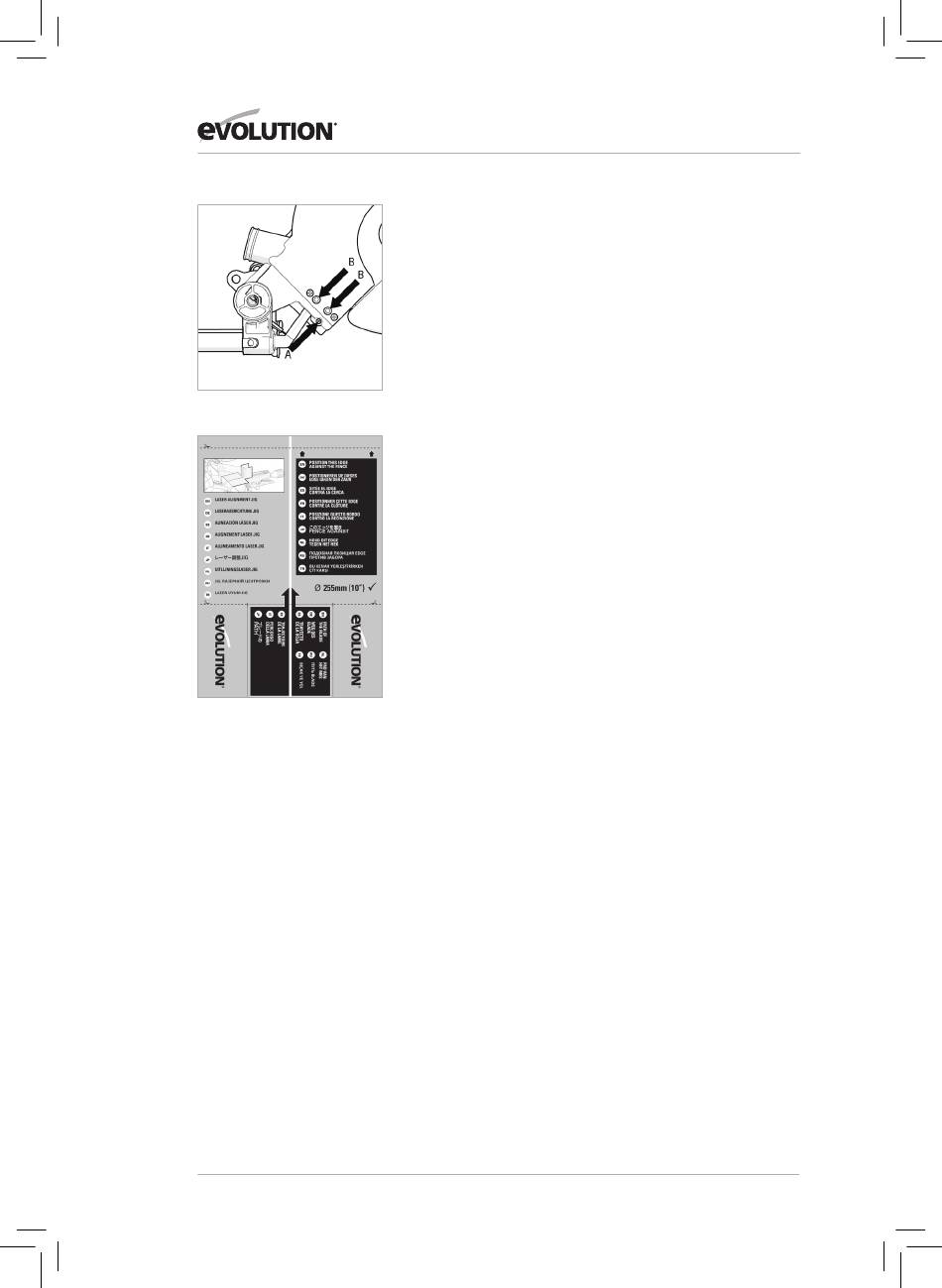

Fig. 8a + 8b
Fig. 8c
LASER ADJUSTMENT FOR
NORTh AMERiCAN pLUG MODELS
WARNiNG: At no time during this procedure should the motor
be started.
The Laser Module is held in a 'mounting block' , The 'mounting
block, itself is located within the machine on two (2) sprung
loaded socket headed screws.
By loosening the cross headed screw (Fig. 8a) slightly, the Laser
Module can be rotated slightly within the "mounting block' . This
will enable the operator ensure that the projected laser line is
set at the vertical.
The two (2) socket headed screws (Fig. 8b) should be viewed
and be adjusted as a pair. They enable the projected laser line
to be aligned exactly with the path of the blade as it enters the
machines table.
To check Laser alignment:
• Place the cardboard laser jig (Fig. 8c) onto the rotary table.
• Lower the Cutting Head and trace the path of the blade
across the cardboard jig by sliding the Cutting Head forward
and backwards.
• Position the cardboard so that the 'Path of the Blade' as marked
on the jig exactly matches the actual path of the blade.
• Fix the cardboard jig in position by using masking tape or similar.
Turn on the Laser.
• If the projected laser line exactly matches the 'Path of the
Blade' both across the table and also in the vertical axis, no
further action is required.
projected laser line not vertical:
• Loosen the cross-head screw and gently rotate the laser
module within its mounting block until the laser line is vertical.
• Retighten the screw and recheck.
projected laser line not aligned with
the 'path of the Blade' across the table:
• Adjust the two socket head screws alternately by no
more than a ¼ of a turn in either direction, observing the
movement of the projected laser line.
• When the projected laser line matches the 'Path of the Blade'
adjustment has been achieved.
